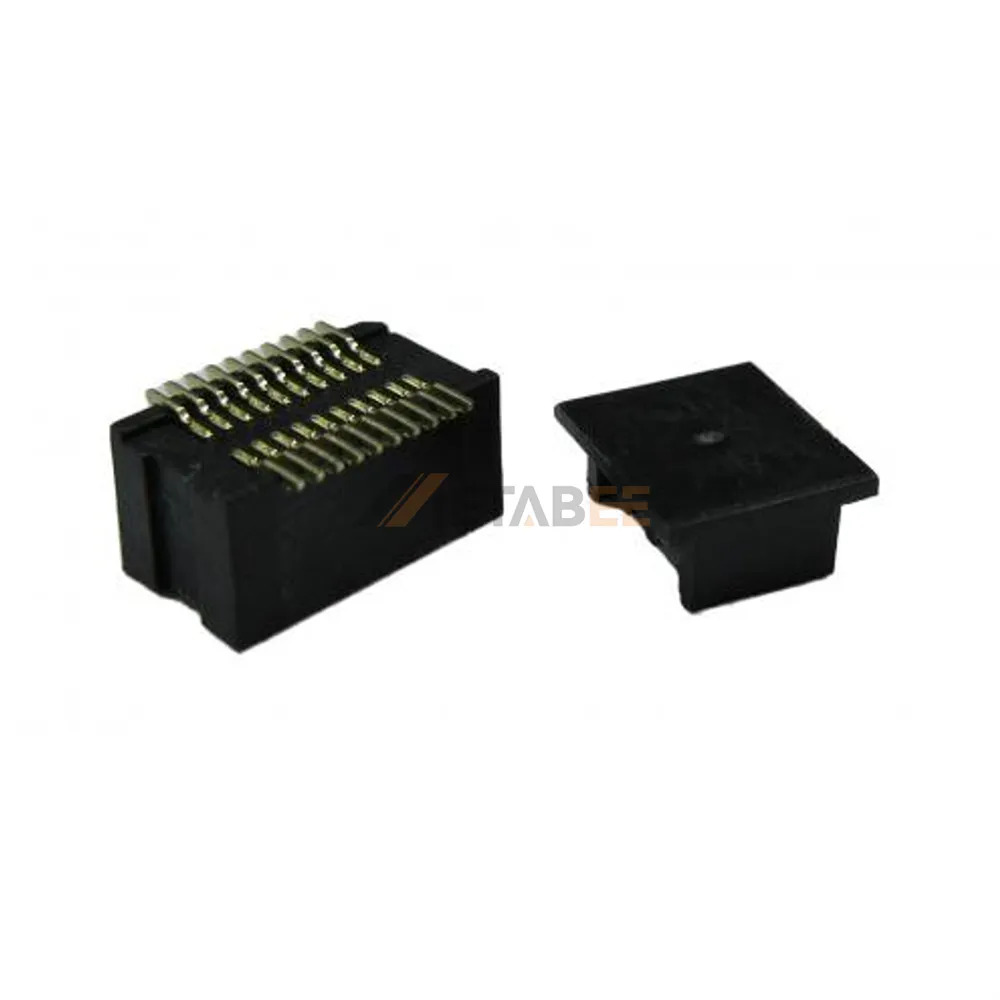

0.5mm Pitch SMT Board to Board Male Connector, Plug, Vertical
Introduction:
Optimize your high-density PCB designs with our precision-engineered 0.5mm Pitch SMT Board-to-Board Male Connector (Plug). Designed for space-constrained applications, this connector features a robust dual-row configuration with options ranging from 20 to 100 positions, offering maximum versatility for complex signal and power routing. Its vertical mounting orientation and surface-mount (SMT) termination ensure a secure, stable connection in automated assembly processes, making it an ideal solution for compact electronic devices.
Built for reliability in demanding environments, this connector utilizes high-conductivity copper alloy contacts finished with gold flash plating to ensure excellent electrical performance and corrosion resistance. The housing is molded from high-temperature thermoplastic, providing exceptional thermal stability and meeting the UL 94 V-0 flammability standard. With a wide operating temperature range of -40℃ to +85℃, this plug delivers consistent, durable performance for industrial, consumer, and automotive electronics.
Key Features
- Ultra-Compact Pitch: 0.5mm centerline spacing optimized for high-density interconnects.
- Flexible Configurations: Available in dual-row layouts with 20 to 100 positions to meet diverse design requirements.
- Reliable Material Construction: Durable copper alloy contacts with gold flash plating for superior conductivity.
- Thermal Resilience: High-temperature thermoplastic housing ensures integrity during SMT reflow soldering.
- Safety Rated: Flammability rated to UL 94 V-0, meeting rigorous safety standards.
- Wide Temperature Range: Stable performance from -40℃ to +85℃ for harsh operating environments.
Main Specifications:
General Information:
| Product No.: | YC-BB5-PL-XXX-G-NP-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch SMT Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
