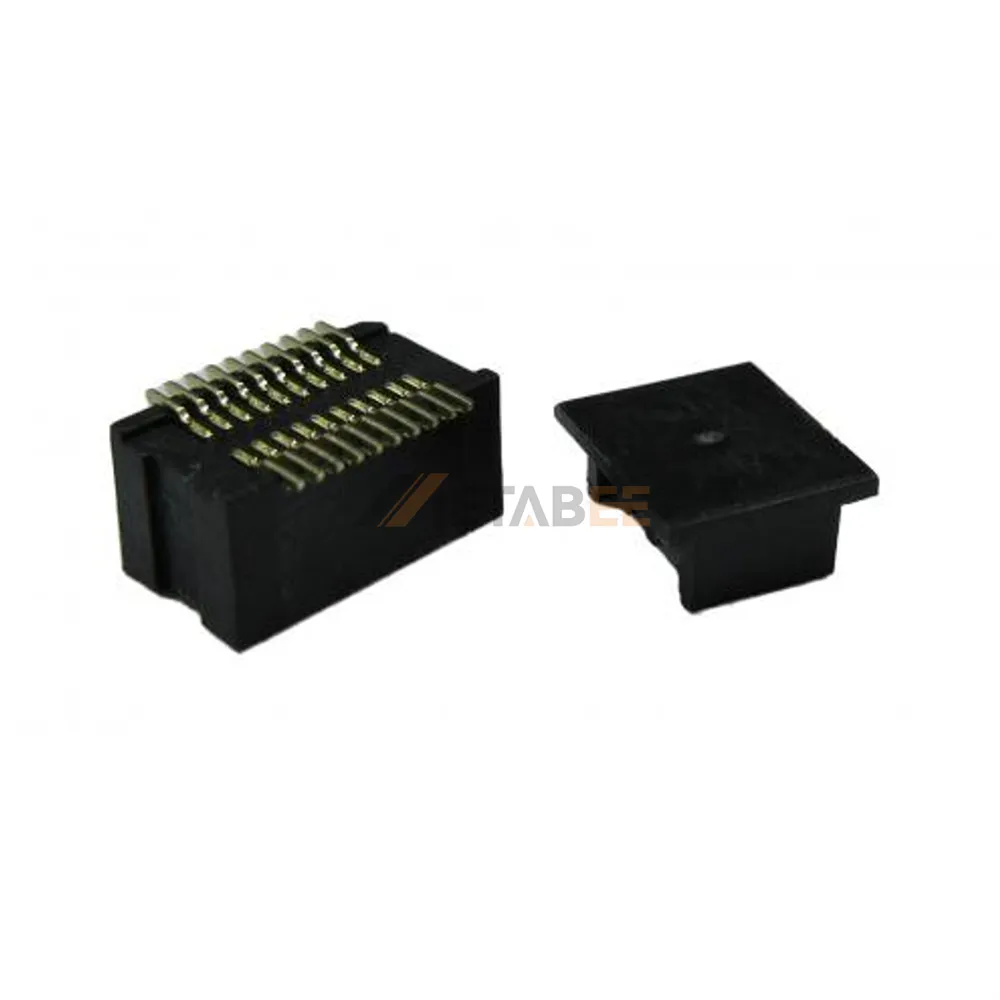

0.5mm Pitch SMT Board to Board Male Connector, Plug, Vertical
Introduction:
The 0.5mm Pitch SMT Board to Board Male Connector is designed for high-density PCB applications that require reliable electrical performance and compact interconnection solutions. Featuring a vertical surface-mount design and dual-row configuration, this connector supports 20 to 100 positions, making it suitable for a wide range of industrial, consumer electronics, communication, and embedded system applications.
Manufactured with high-quality copper alloy contacts and gold flash plating, the connector provides excellent conductivity, low contact resistance, and enhanced corrosion resistance. The high-temperature thermoplastic insulator ensures dimensional stability during SMT reflow soldering processes while maintaining long-term mechanical durability in demanding environments.
Engineered for dependable performance, this board-to-board connector operates within a temperature range of -40°C to +85°C and meets UL 94 V-0 flammability requirements for improved safety. Its fine 0.5mm pitch and vertical mating orientation help maximize PCB space utilization while delivering secure and stable board-level connections.
Key Features
- 0.5mm pitch design for high-density PCB layouts
- Male connector with vertical mating orientation
- Dual-row configuration with 20 to 100 positions
- Surface mount technology (SMT) for automated assembly
- Copper alloy contacts with gold flash plating for reliable conductivity
- UL 94 V-0 rated high-temperature thermoplastic insulator
Main Specifications:
General Information:
| Product No.: | YC-BB5-PL-XXX-G-XXX-NP-PP-T/R | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch SMT Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
