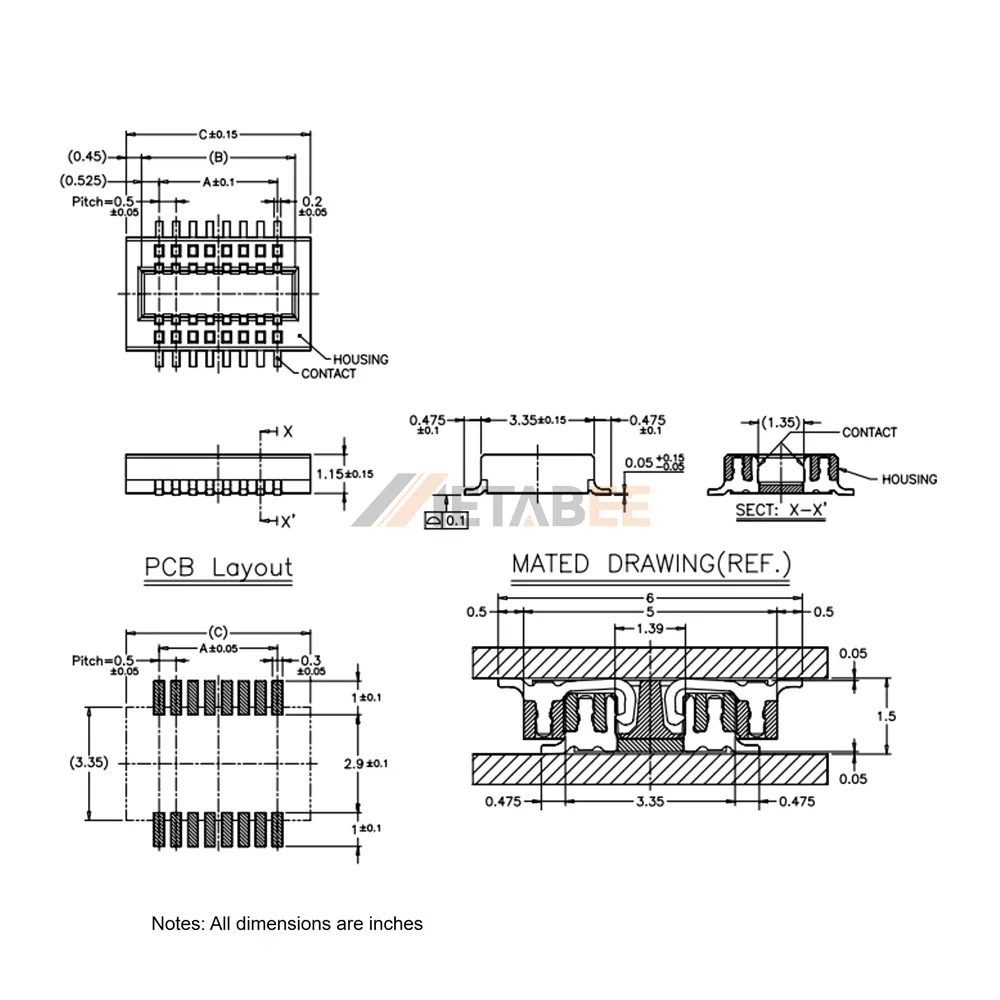

0.5mm Pitch SMT Board-to-Board Connector, Plug, Dual Row
Introduction:
This 0.5 mm pitch SMT board-to-board plug offers a vertical, dual-row interconnect system for high-density PCB stacking applications. Supporting 10 to 100 positions, this male connector provides scalable design flexibility for consumer electronics, industrial controls, and telecommunications equipment. The vertical mounting orientation simplifies automated pick-and-place assembly, while the surface-mount termination ensures reliable solder joint integrity on multilayer boards.
Constructed with copper alloy contacts featuring gold flash plating, the connector delivers low contact resistance and excellent corrosion protection over multiple insertion cycles. The high-temperature thermoplastic insulator withstands lead-free reflow profiles without warping, and the material system complies with UL 94 V-0 flame-retardant standards. Rated for -40°C to +85°C operation, this component maintains stable electrical performance across thermal cycling and humid environments.
Key Features
- 0.5 mm fine-pitch dual-row plug for space-efficient routing
- 10 to 100 position range accommodating varied I/O requirements
- Vertical SMT design optimized for high-speed automated assembly
- Gold-flashed copper alloy for durable, low-resistance contacts
- High-temperature insulator with UL 94 V-0 flammability rating
- Wide -40°C to +85°C operating temperature tolerance
Main Specifications:
General Information:
| Product No.: | YC-BB5-P-XX-1 | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch SMT Board-to-Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
