0.5mm Pitch High Speed board to board Plug, SMT, Vertical
Introduction:
This 0.5 mm pitch high-speed board-to-board plug delivers a vertical SMT interconnect solution engineered for demanding signal integrity applications. Supporting 10 to 120 positions in a dual-row configuration, this male connector accommodates high pin-count designs while maintaining controlled impedance and reduced crosstalk for data transmission rates exceeding standard parallel interfaces. The vertical orientation facilitates efficient PCB floor-planning and streamlined automated assembly workflows.
Constructed with copper alloy contacts plated with gold flash, the connector ensures low and stable contact resistance across the operational life. The high-temperature thermoplastic insulator withstands aggressive reflow soldering processes without degradation, and the material system meets UL 94 V-0 flame-retardant requirements. Rated for -40°C to +85°C ambient operation, this component delivers consistent performance in thermally varied environments, from industrial automation to telecommunications infrastructure.
Key Features
- 0.5 mm fine-pitch dual-row plug for high-density layouts
- 10 to 120 position flexibility for scalable system designs
- Vertical SMT mounting optimized for high-volume production
- Gold-flashed copper alloy for reliable, low-loss contacts
- High-temperature insulator rated UL 94 V-0 for safety compliance
- -40°C to +85°C operating range for diverse application environments

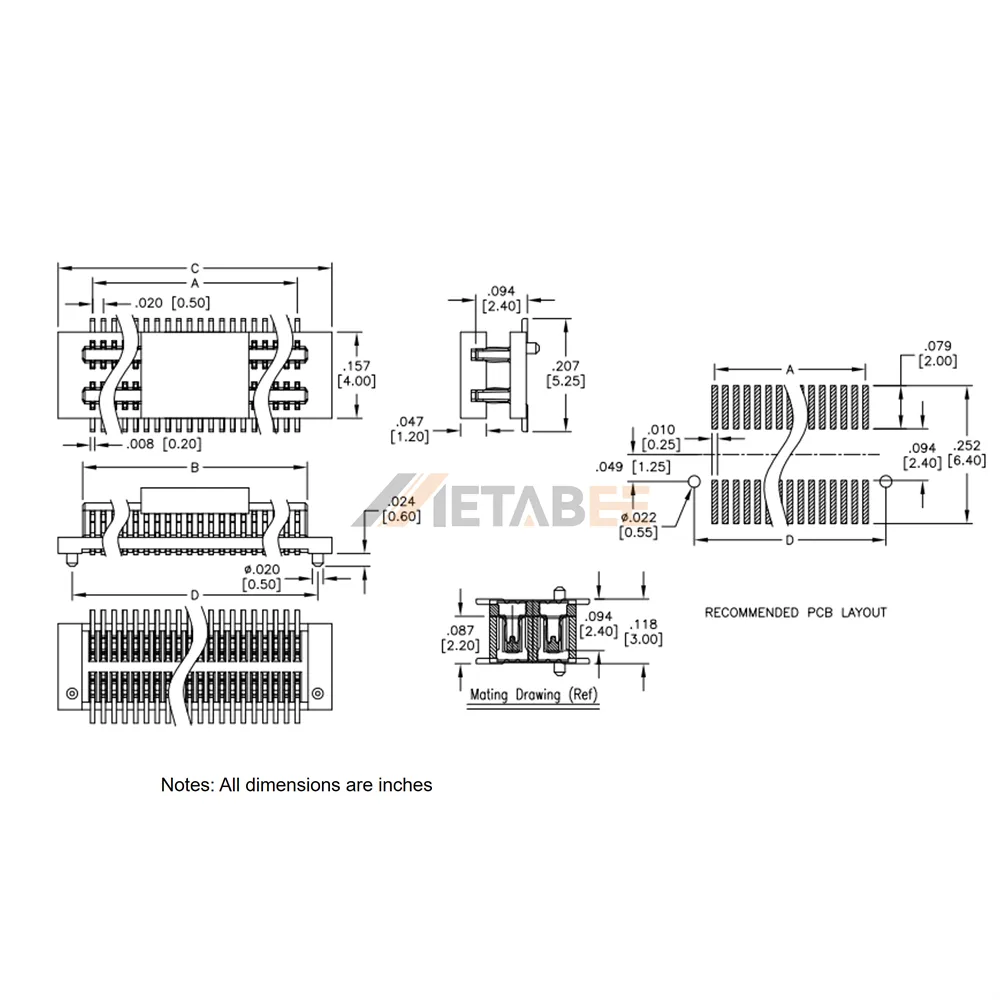

Main Specifications:
General Information:
| Product No.: | YC-BB5-PD-XX-G | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch High Speed board to board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
