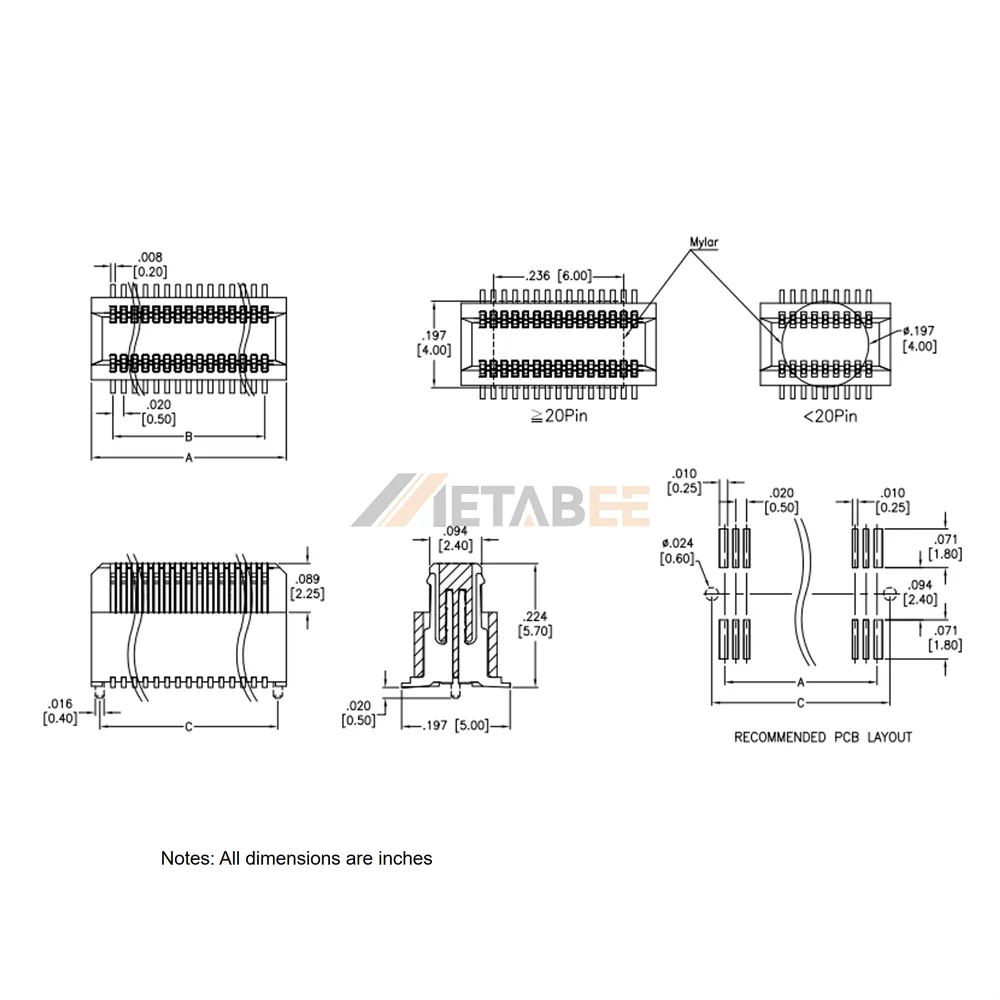

0.5mm Pitch Dual Row Board to Board Plug, SMT, 5.7mm Height
Introduction:
Maximize your high-density interconnect designs with our 0.5mm Pitch Dual Row Board-to-Board Male Connector (Plug). Engineered for space-sensitive applications, this connector features a compact 5.7mm stack height and a versatile configuration supporting 10 to 120 positions. Its vertical surface-mount (SMT) design facilitates efficient automated assembly, ensuring robust electrical contact and mechanical stability for demanding consumer and industrial electronic systems.
Constructed for durability and precision, the connector utilizes high-grade copper alloy contacts finished with gold flash plating to ensure optimal conductivity and resistance to oxidation. The housing is molded from high-temperature thermoplastic, providing exceptional thermal stability during reflow soldering processes while meeting the stringent UL 94 V-0 flammability rating. With an operating temperature range from -40℃ to +85℃, this connector guarantees reliable, consistent signal transmission in diverse and challenging operating environments.
Key Features
- Space-Efficient Profile: 5.7mm height with 0.5mm pitch designed for compact, high-density PCBs.
- Extensive Flexibility: Dual-row configuration available in a wide range of 10 to 120 positions.
- Reliable Material Construction: High-performance copper alloy with gold flash for excellent connectivity.
- Thermal Durability: High-temperature thermoplastic housing ensures integrity during SMT assembly.
- Safety Compliance: Rated UL 94 V-0 for superior flame retardancy and safety.
- Wide Operating Range: Stable performance across a -40℃ to +85℃ temperature spectrum.
Main Specifications:
General Information:
| Product No.: | YC-BB5-PM1-XXX-G-5.70-KT-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5.70mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Dual Row Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
