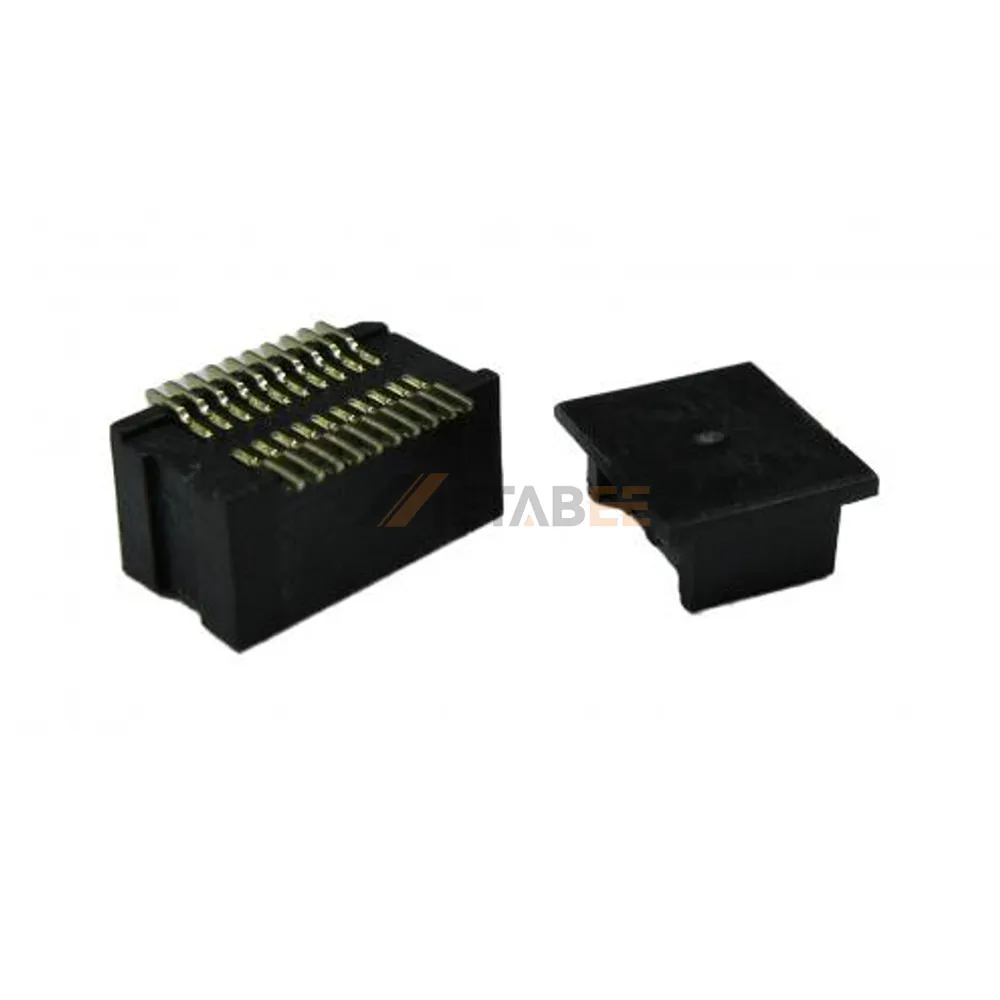

0.5mm Pitch Board to Board Stacking Male Connector, SMT
Introduction:
The 0.5mm Pitch Board to Board Stacking Male Connector is designed for compact electronic devices requiring high-density and reliable board-level interconnections. Featuring a dual-row configuration and vertical mating orientation, this surface mount connector supports 20 to 100 positions, making it ideal for industrial control systems, consumer electronics, communication equipment, and embedded applications.
Constructed with copper alloy contacts and gold flash plating, the connector delivers excellent electrical conductivity and enhanced resistance to oxidation and wear. The high-temperature thermoplastic insulator provides outstanding thermal stability and mechanical strength, ensuring compatibility with automated SMT assembly processes and long-term performance.
Engineered for demanding environments, this board-to-board stacking connector operates reliably within a temperature range of -40°C to +85°C. With a UL 94 V-0 flammability rating, it offers improved safety and durability. Its fine 0.5mm pitch design helps maximize PCB space utilization while providing secure and stable stacking connections between boards.
Key Features
- 0.5mm pitch for high-density board stacking applications
- Male connector with vertical mating orientation
- Dual-row design with 20 to 100 available positions
- Surface mount technology for efficient automated assembly
- Copper alloy contacts with gold flash plating for reliable conductivity
- High-temperature thermoplastic insulator with UL 94 V-0 rating
Main Specifications:
General Information:
| Product No.: | YC-BB5-PL-XXX-G-XXX-NP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Stacking Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
