0.5mm Pitch Board to Board Plug, High Speed Connector
Introduction:
The 0.5mm Pitch Board to Board Plug is a high-speed connector designed for compact electronic devices requiring reliable signal integrity and high-density interconnections. Featuring a vertical mating orientation and dual-row configuration, this male connector is available in 10 to 100 positions, making it suitable for consumer electronics, communication systems, industrial controls, and other advanced PCB applications.
Constructed with precision copper alloy contacts and gold flash plating, the connector delivers excellent electrical performance, low contact resistance, and enhanced corrosion resistance. The high-temperature thermoplastic housing provides superior dimensional stability and supports automated surface mount assembly processes, ensuring dependable operation and long service life.
Designed for demanding environments, the connector operates over a temperature range of -40°C to +85°C and complies with the UL 94 V-0 flammability standard for improved safety. Its fine 0.5mm pitch enables space-saving PCB layouts while supporting stable, high-speed board-to-board connections.
Key Features
- Fine 0.5mm pitch for high-density PCB designs
- High-speed connector for reliable signal transmission
- Dual-row male connector with 10 to 100 positions
- Vertical orientation with surface mount installation
- Copper alloy contacts with gold flash plating
- UL 94 V-0 high-temperature thermoplastic housing

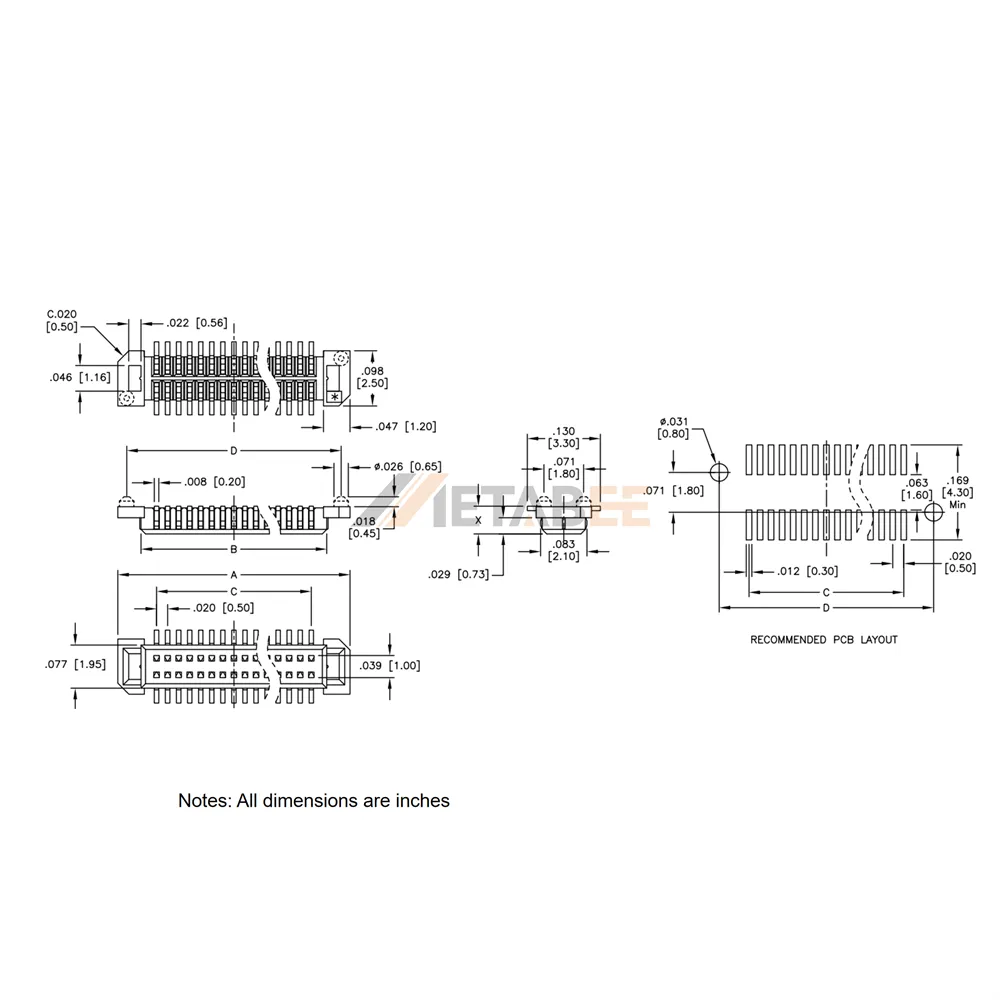

Main Specifications:
General Information:
| Product No.: | YC-BB5-PQA-XXX-G-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Plug, High Speed Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
