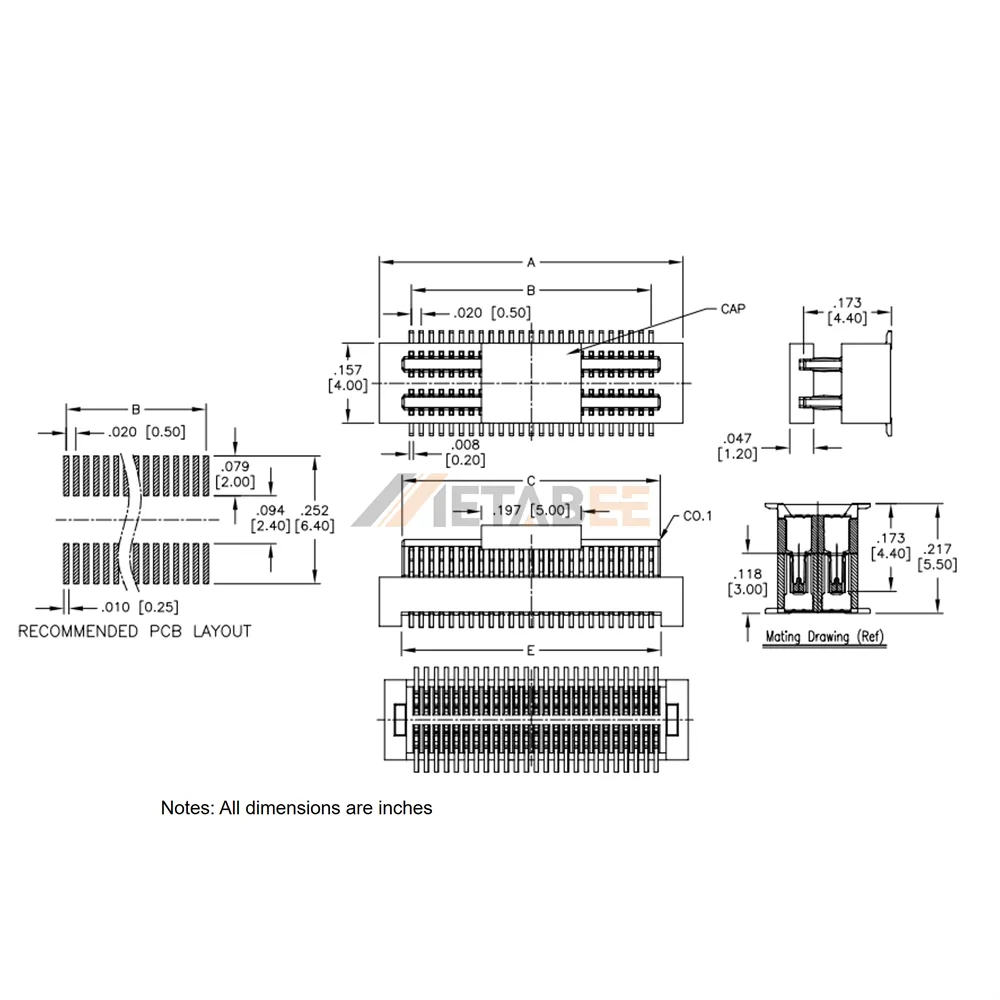

0.5mm Micro Pitch SMT Board to Board Plug, 4.4mm Height
Introduction:
Enhance your electronic designs with our 0.5mm Micro Pitch Dual Row SMT Male Connector. Featuring a low-profile 4.4mm stack height, this plug is precision-engineered for space-constrained applications where reliability is paramount. With a flexible capacity ranging from 10 to 120 positions, it offers the versatility required for complex board-to-board signal and power delivery in modern, high-density circuitry.
Constructed from premium copper alloy with gold flash plating, this connector ensures superior signal integrity and excellent corrosion resistance. The housing is crafted from high-temperature thermoplastic, specifically designed to withstand the rigorous thermal demands of surface-mount reflow soldering processes. Fully compliant with UL 94 V-0 safety standards and built to perform reliably between -40℃ and +85℃, this connector provides the long-term durability necessary for industrial and consumer-grade electronics.
Key Features
- Ultra-Compact Profile: 4.4mm stack height optimizes vertical space in dense PCB assemblies.
- High-Density Connectivity: 0.5mm micro pitch with flexible 10 to 120 position options.
- Premium Material Integrity: Copper alloy contacts with gold flash plating for high-performance conductivity.
- Thermal Stability: High-temp thermoplastic housing withstands intensive SMT assembly processes.
- Safety Rated: Certified UL 94 V-0 for superior flame resistance and security.
- Harsh Environment Ready: Reliable operation within an extensive -40℃ to +85℃ temperature range.
Main Specifications:
General Information:
| Product No.: | YC-BB5-PN-XXX-G-4.40-NP-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.40mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Micro Pitch SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
