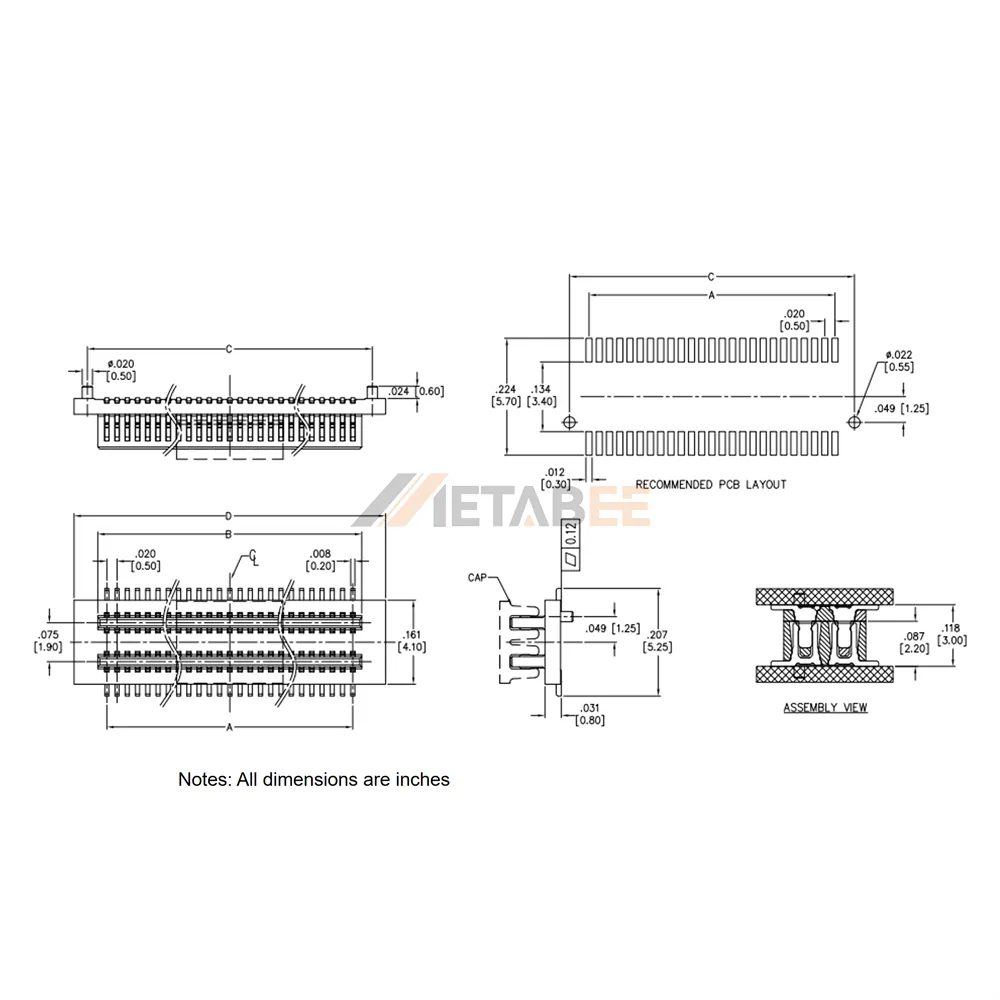

0.5mm Fine Pitch Board-to-Board Connector, Plug, 0.8mm Height
Introduction:
The 0.5mm Fine Pitch Board-to-Board Connector Plug is designed for ultra-compact electronic devices requiring reliable and high-density interconnections. Featuring a low-profile height of only 0.8mm, a dual-row configuration, and vertical mating orientation, this surface mount male connector supports 10 to 100 positions, making it ideal for wearable devices, mobile electronics, industrial equipment, and communication systems.
Constructed with copper alloy contacts and gold flash plating, the connector provides excellent electrical conductivity, low contact resistance, and enhanced durability. Its high-temperature thermoplastic insulator offers superior heat resistance and dimensional stability, ensuring compatibility with automated SMT assembly and long-term performance in demanding applications.
Operating within a temperature range of -40°C to +85°C, the connector is engineered for dependable performance across various environments. The UL 94 V-0 flammability rating further enhances safety, while the fine 0.5mm pitch design enables efficient space utilization and stable board-to-board connections.
Key Features
- Fine 0.5mm pitch for high-density PCB designs
- Ultra-low profile with 0.8mm stacking height
- Dual-row male connector with 10 to 100 positions
- Vertical orientation with surface mount installation
- Copper alloy contacts with gold flash plating
- High-temperature housing with UL 94 V-0 flammability rating
Main Specifications:
General Information:
| Product No.: | YC-BB5-PW-XXX-G-0.80-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 0.8mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Fine Pitch Board-to-Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
