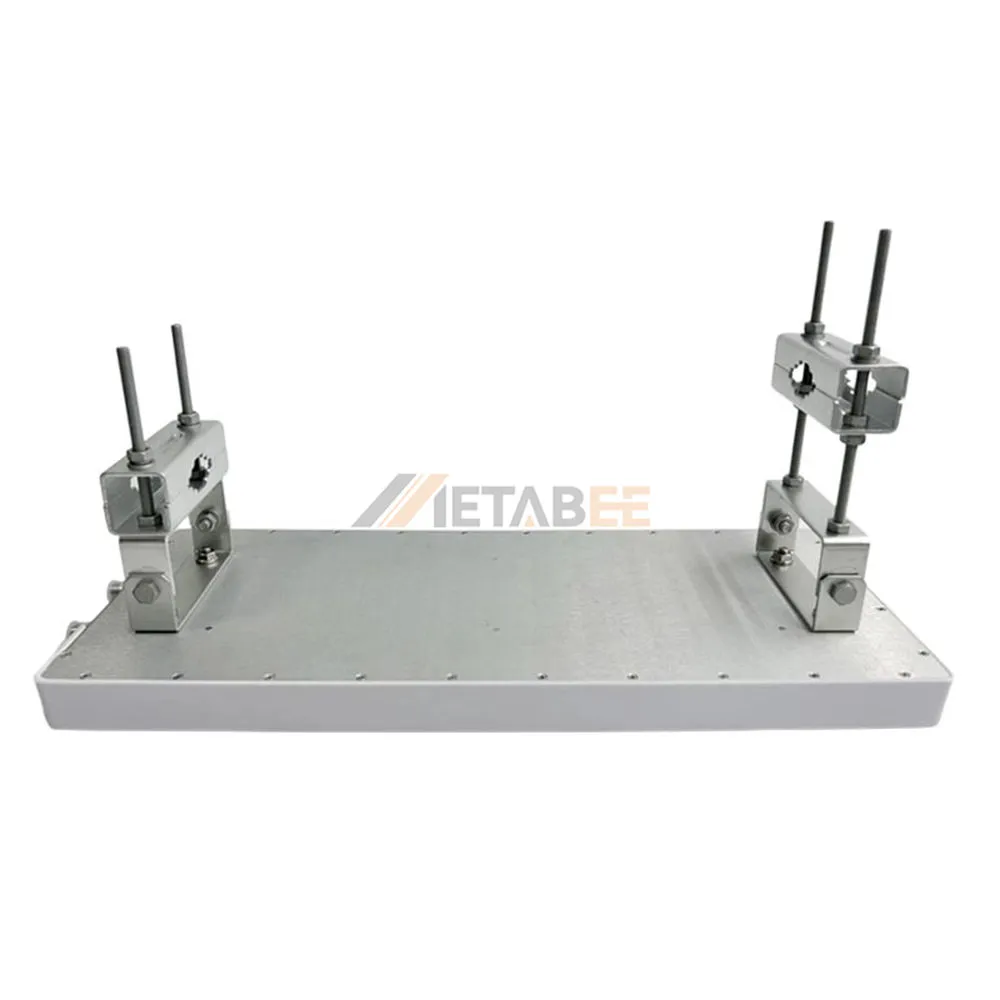

WiFi/ISM Base Station Directional Panel Antenna, 4900∼5900 MHz, 17dBi, N-Female, IP66
Introduction:
Engineered for high-density wireless networks, this directional panel antenna operates across the 4900–5900 MHz band with 17 dBi gain and vertical polarization. The N‑Female connector and IP66‑rated ABS radome ensure reliable performance in extreme environments, from -40°C to 85°C, with 36.9 m/s wind survivability. DC grounding provides integrated lightning protection, while VSWR ≤2.0 and 50W max input power deliver stable, efficient signal transmission for base station deployments.
Key Features
- 4900–5900 MHz bandwidth with 17 dBi directional gain
- IP66 ABS radome for outdoor durability

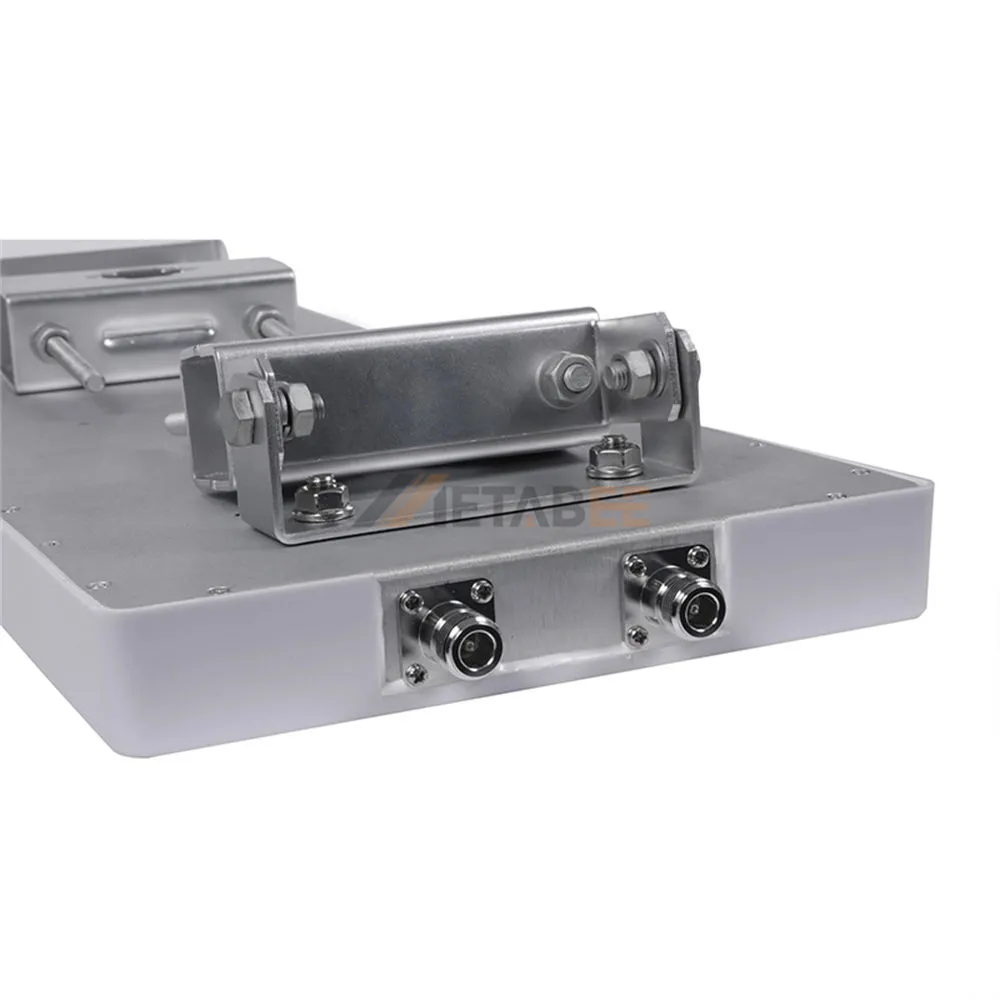

- N‑Female connector, 50 Ohm impedance
- DC grounding lightning protection
- VSWR ≤2.0, vertical polarization
- -40°C to 85°C operation, 36.9 m/s wind rating
General Information:
| Product No.: | YC-KS50045-1 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 550*230*40mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 4900∼5900 MHz | |
| Gain: | 17dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this WiFi/ISM Base Station Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
