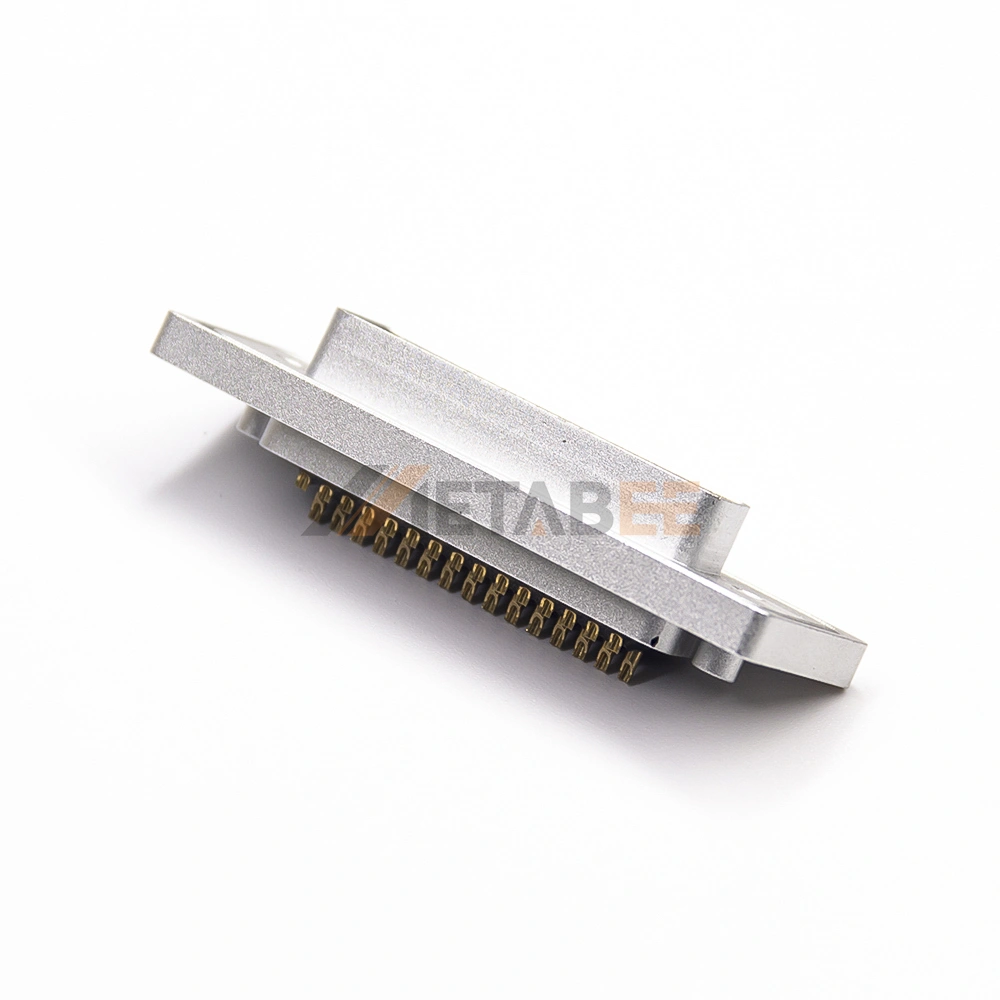

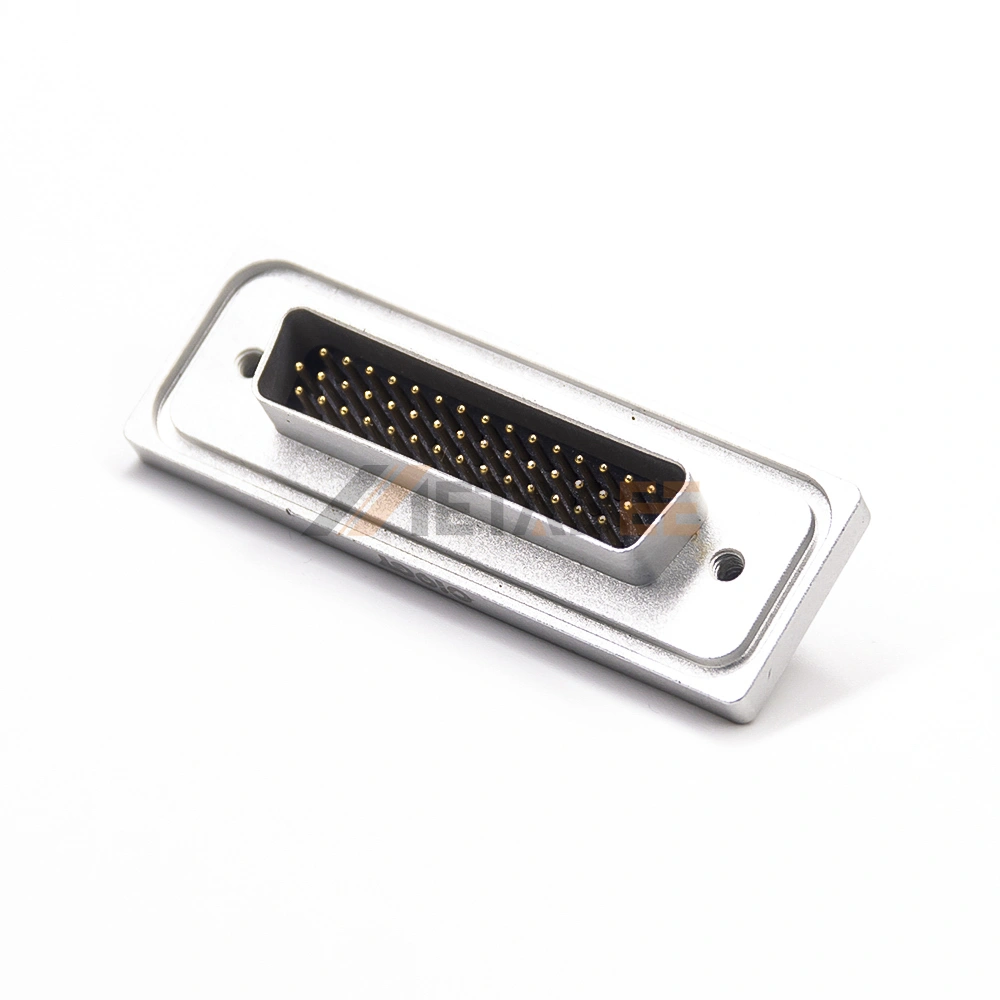

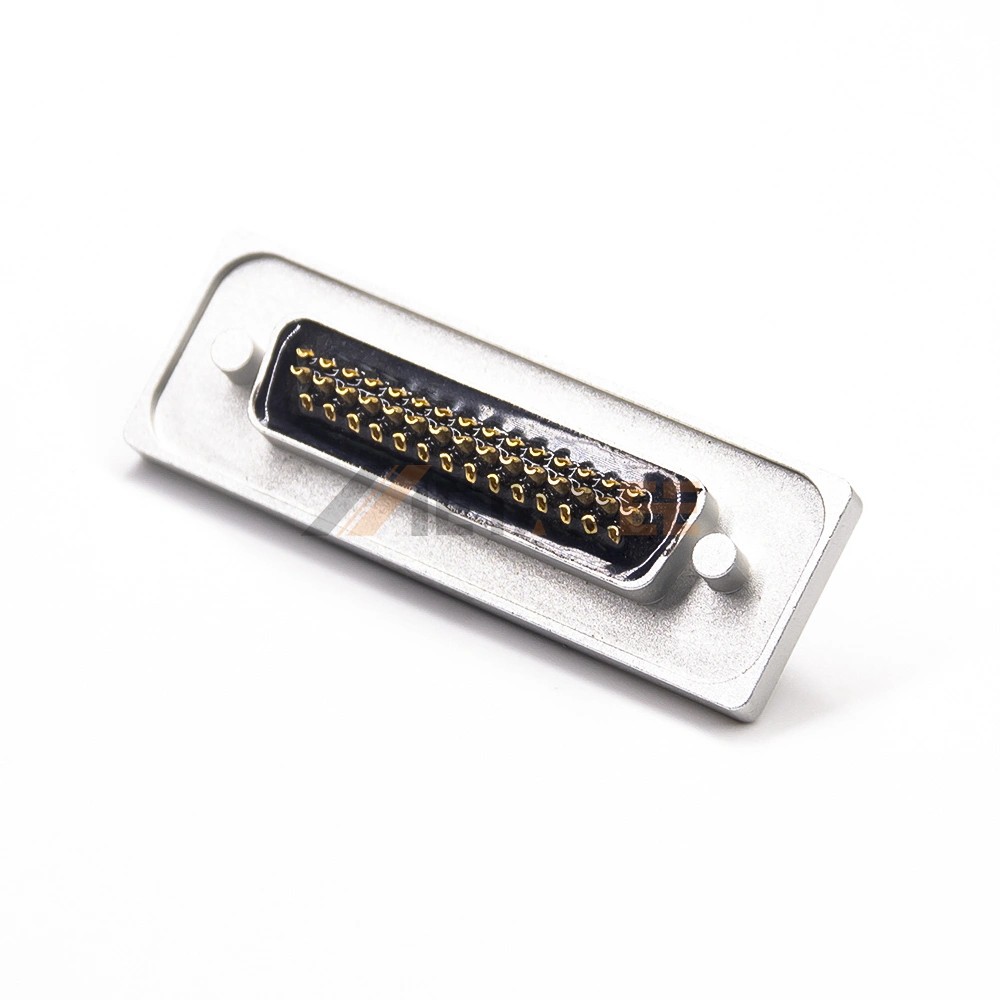

Waterproof High Density 44 Pin D-Sub Male Connector, Cable Type, Machined Contacts, 2.29mm Pitch, IP67
Introduction:
This Waterproof High-Density 44-Pin D-Sub Male Connector delivers robust performance. Designed for cable-mounted applications. Features a space-saving straight orientation. Its ultra-fine 2.29mm pitch packs 44 signal contacts into a compact B-shell. Machined brass contacts ensure precision. Gold plating over nickel guarantees optimal conductivity. Rugged nickel-plated stainless steel housing resists corrosion. Solder cup termination enables secure cable attachment. PBT insulator withstands harsh conditions. Operates reliably from -25°C to +85°C. Rated for 3A and 250V. Ideal for demanding environments requiring high-density waterproof connections.
Main Features:
- High-Density 44-Pin Interface: Features 44 male signal pins arranged in 3 rows.
- IP67 waterproof rating: Ensures protection in wet and dusty environments.
- Cable Mount Orientation: Optimizes space and routing in confined installations.
- Solder Cup Termination: Delivers secure wire attachment for vibration resistance.
- Precision 2.29mm Pitch: Enables compact design for space-constrained applications.
- Wide Operating Temperature: Functions reliably from -25°C to +85°C.
Main Specifications:
General Information:
| Product Number: | YC-681-5051 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 44 Pin | |
| Number of Rows: | 3 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | B | |
| Mount Type: | Cable Mount | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 15 mΩ |
Environmental Performance:
| Temperature Range: | -25℃ to +85℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof High Density D-Sub 44 Pin Male Connector:
- Industrial Control Systems
- Marine Electronics & Navigation
- Medical Monitoring Devices
- Outdoor LED Displays & Signage
- Test & Measurement Systems
- Transportation Telematics
