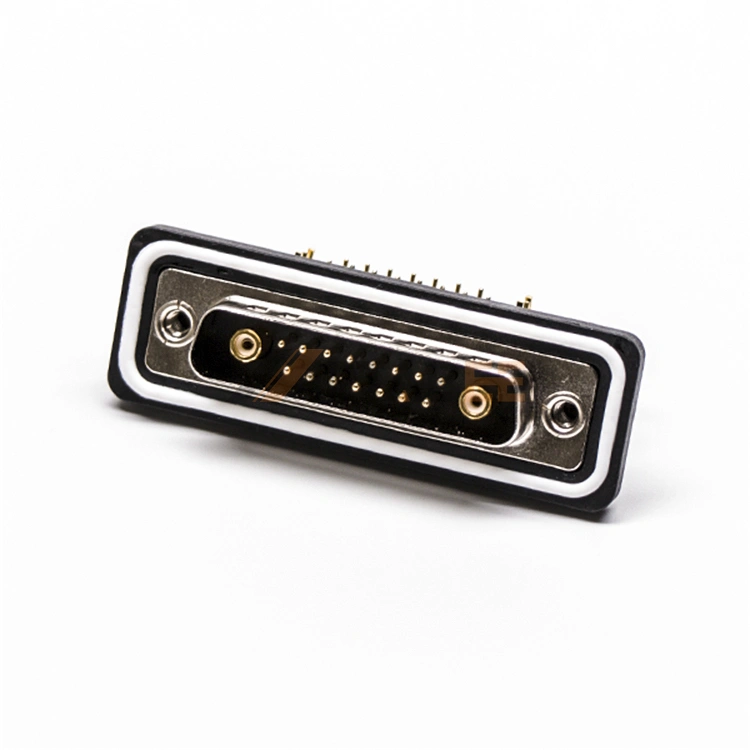

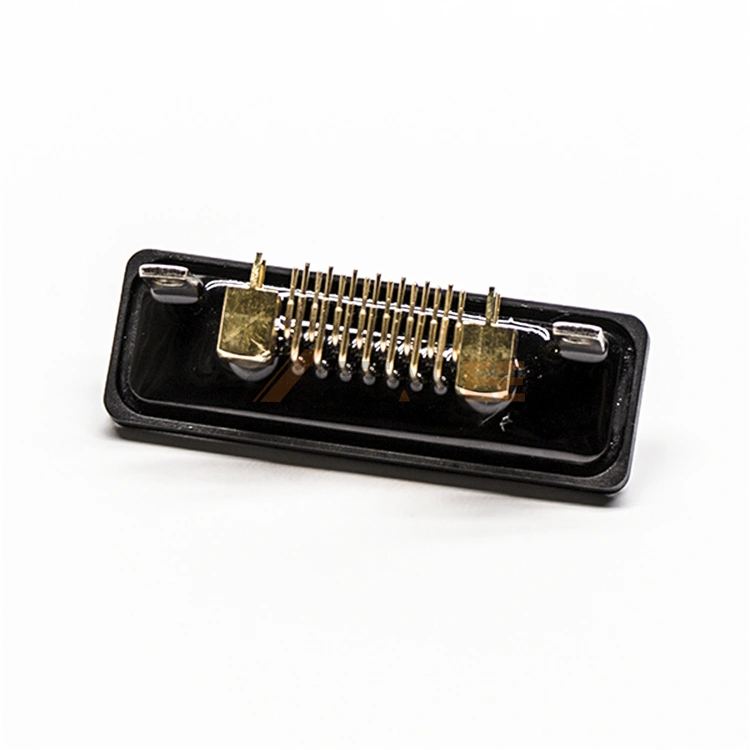

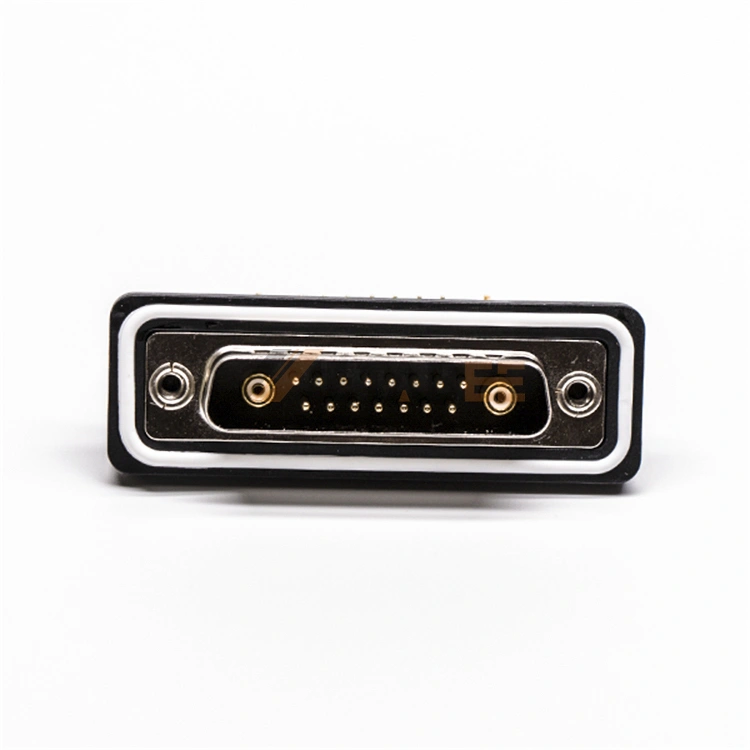

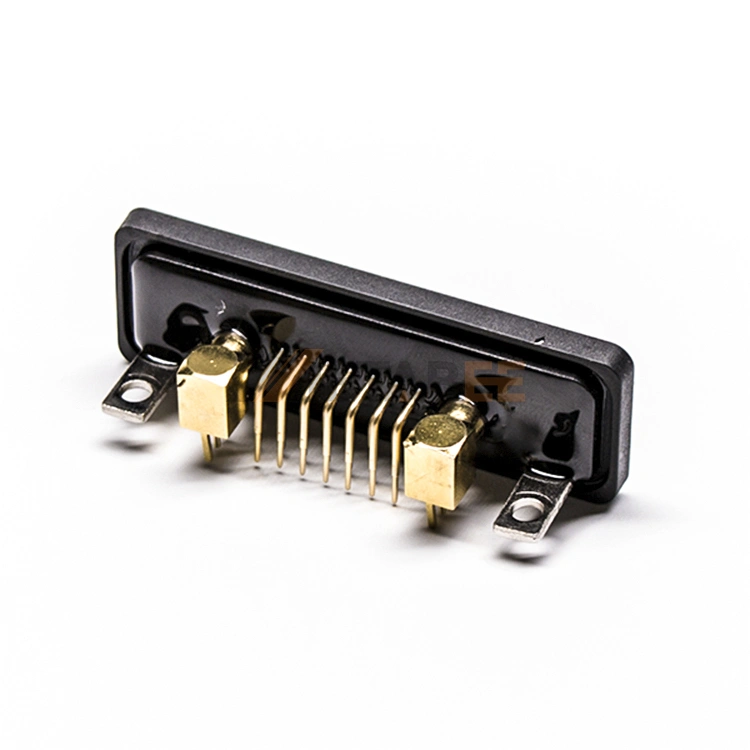

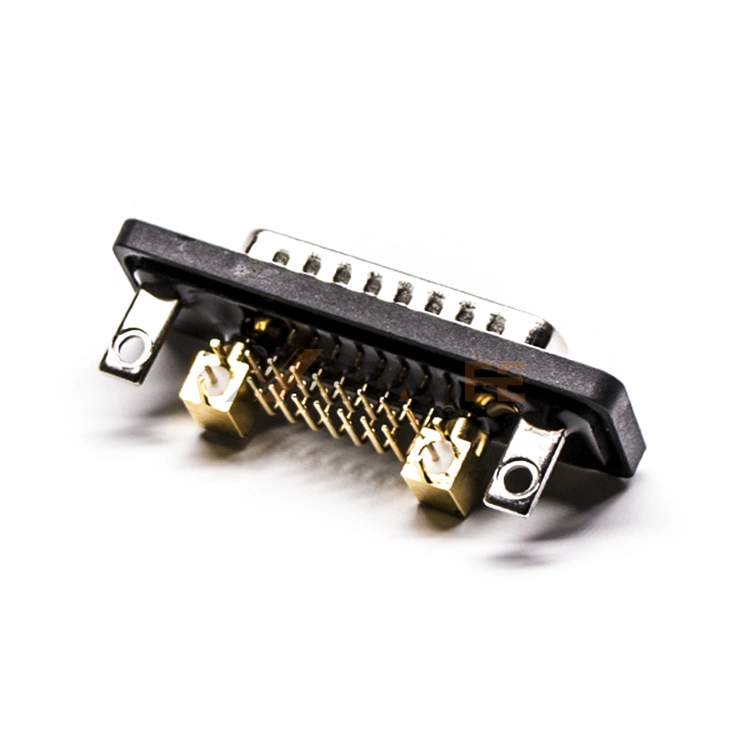

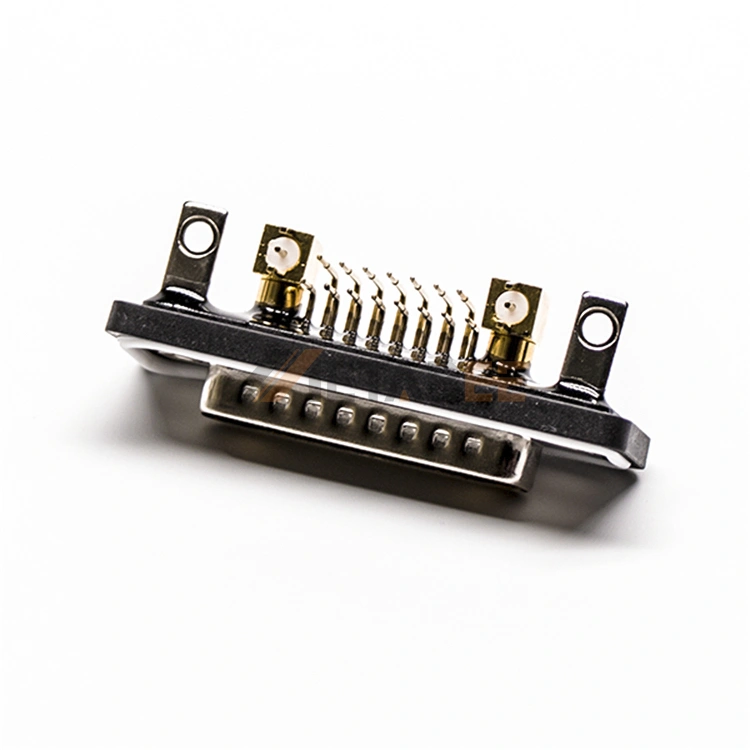

Waterproof 17W2 D-Sub 17 Pin Male Combo Connector, PCB Mount, Right Angle, Coaxial and Signal, IP67
Introduction:
This Waterproof IP67 17W2 D-Sub Male Combo Connector delivers dual functionality. Engineered for coaxial and signal transmission in harsh environments. 17W2 has 2 power contacts and 15 standard signal contacts. Achieves IP67 waterproof rating. Protects against dust and water immersion. Ensures reliability in harsh conditions. Features a right-angle orientation for space-saving PCB mounting. Solder termination creates a permanent PCB bond. Machined brass contacts with gold plating guarantee reliable performance. Operates reliably from -55°C to 125°C. Handles up to 40A current and 500V. Ideal for demanding industrial applications requiring hybrid connectivity.
This waterproof 17W2 combo D-sub connector has many great features, including:
- IP67 Waterproof: Protects against dust ingress and temporary water immersion.
- Coaxial and Signal Combo Design: Transmits multiple signal types in one compact 17W2 interface.
- Right-Angle PCB Mount: Enables space-optimized board-level installation.
- Precision Machined Contacts: Delivers superior conductivity and mating durability.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
Main Specifications:
General Information:
| Product Number: | YC-681-5008 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 17W2 | |
| Orientation: | Right Angle | |
| Connector Gender: | Male | |
| Number of Contacts: | 17 Pin | |
| Shell Sizes: | B | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Coaxial and Signal |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Current rating: | 10A/20A/30A/40A | |
| Rated Voltage: | 500V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof 17W2 Combo D-Sub Connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
