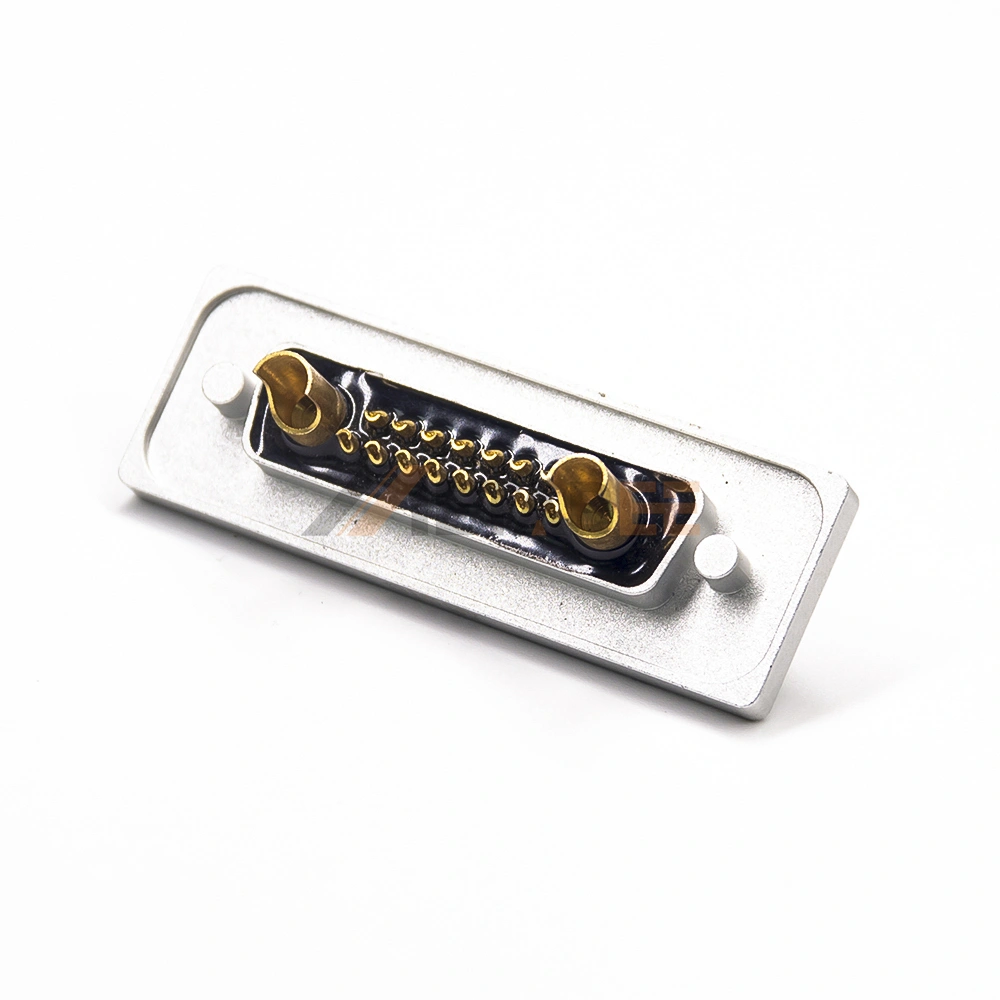

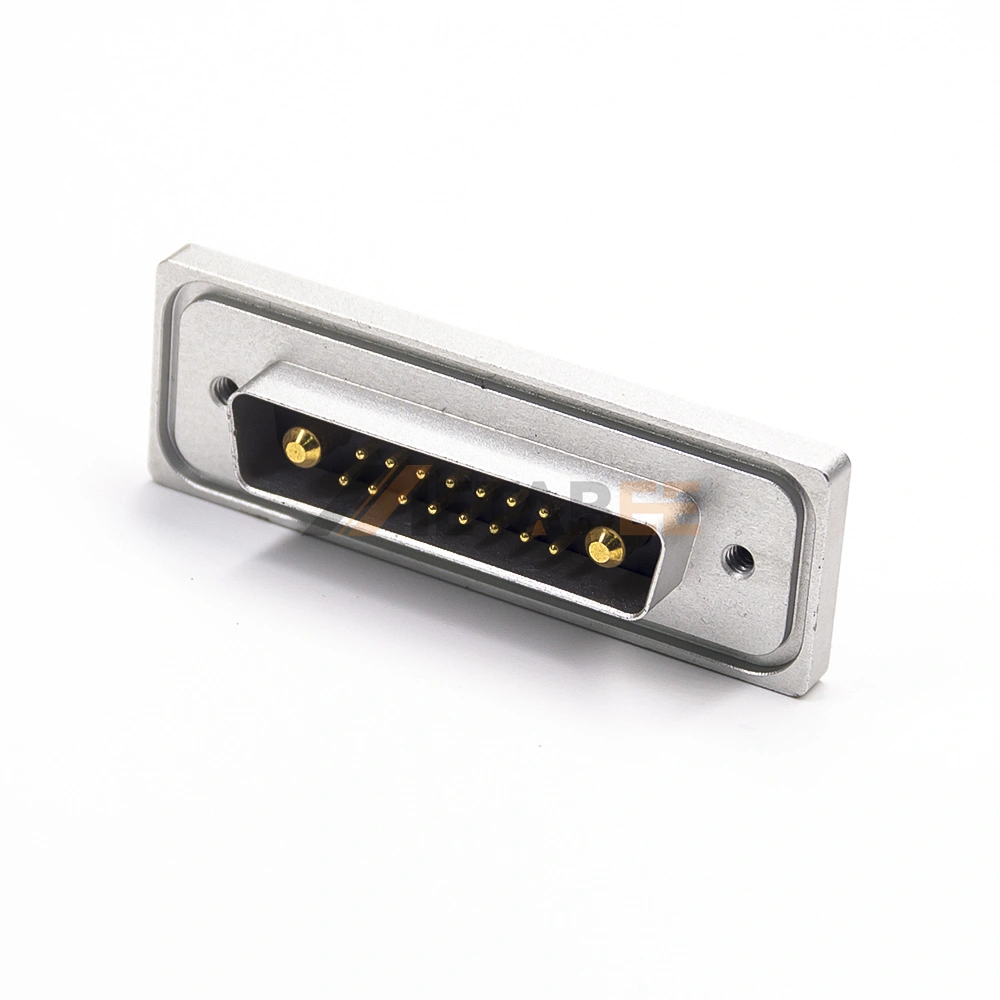

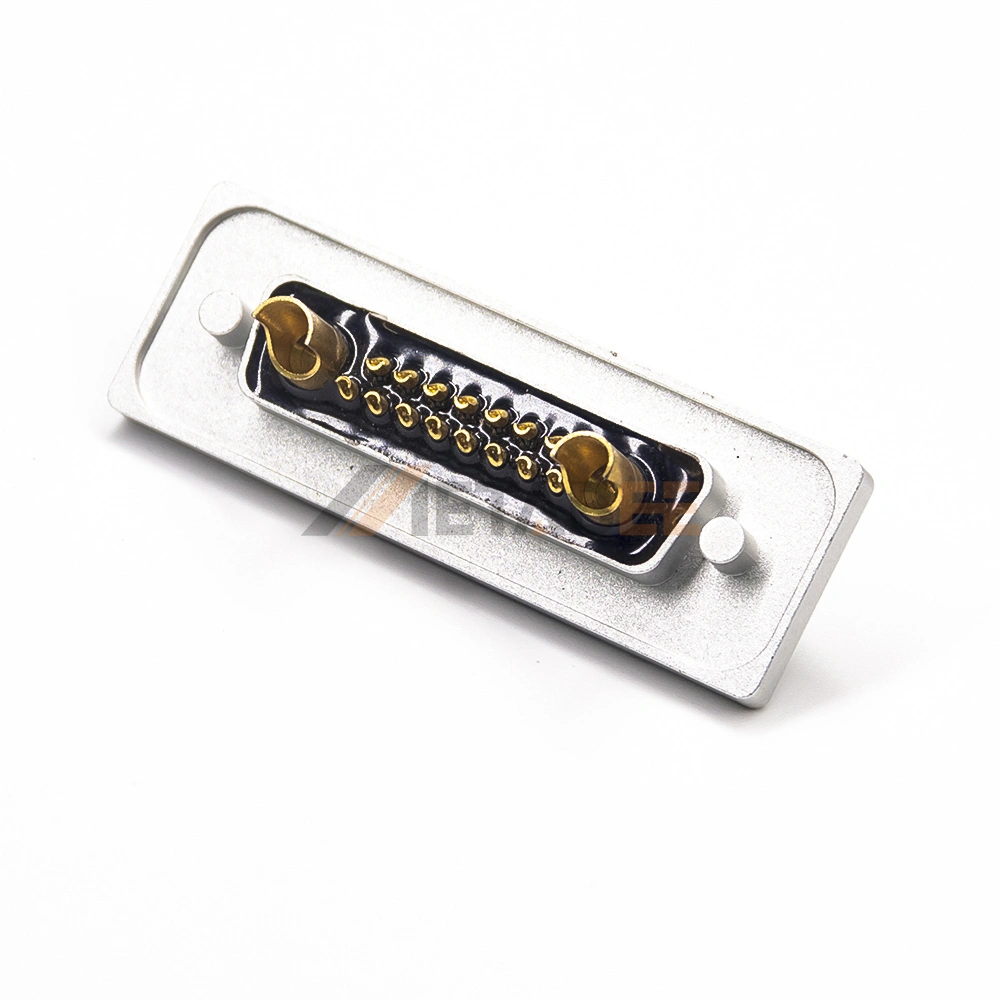

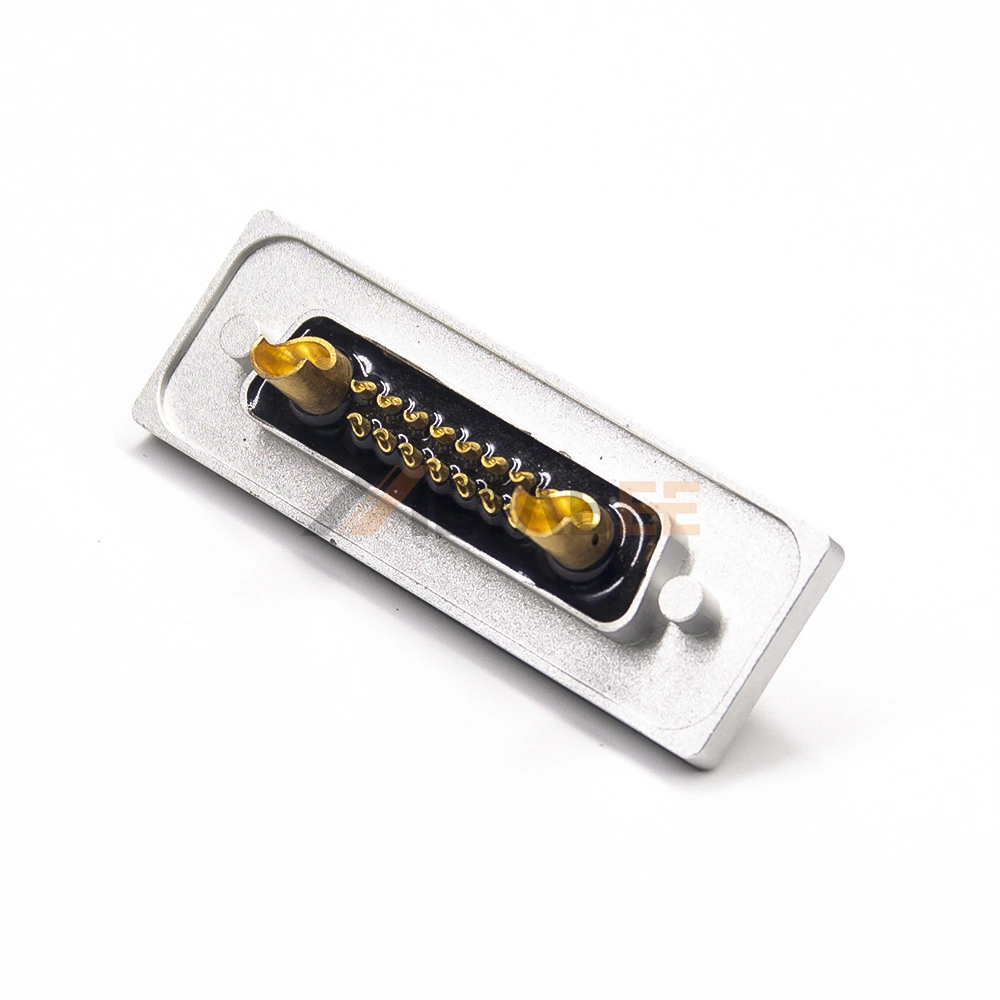

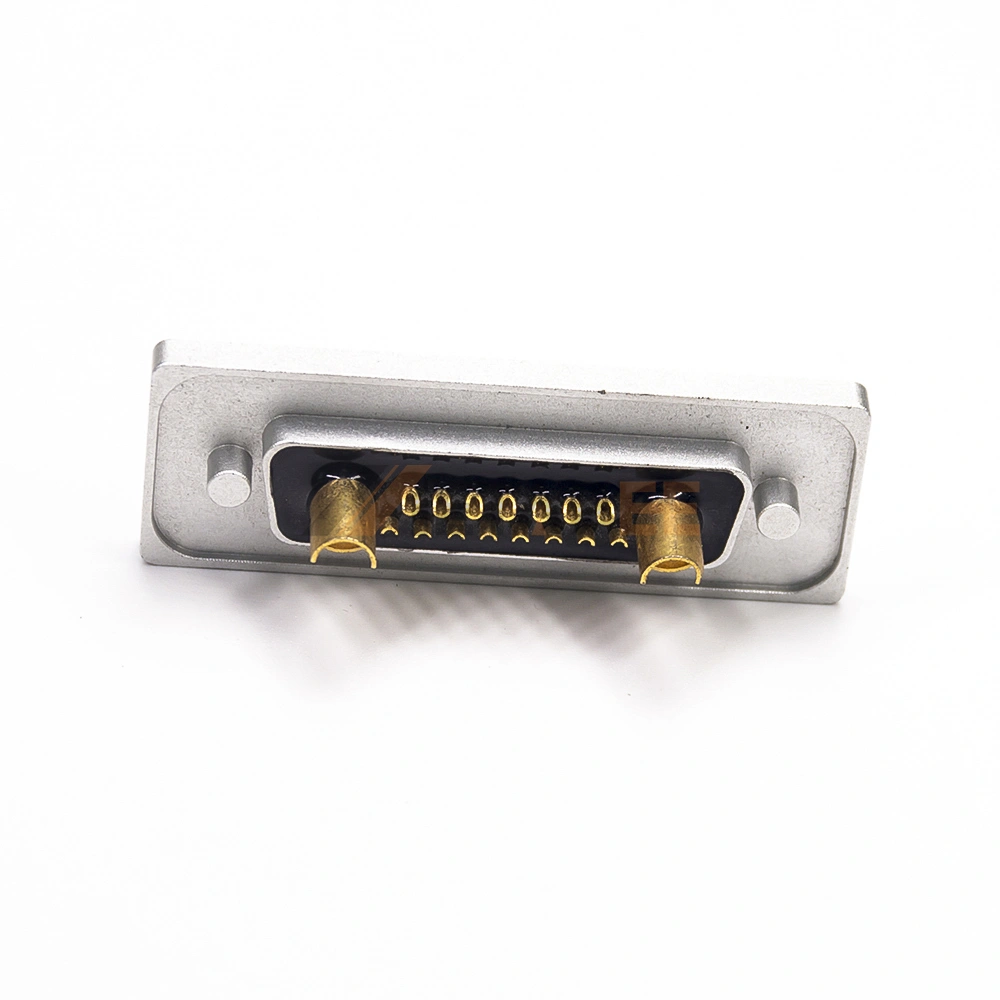

Waterproof 17W2 D-Sub 17 Pin Male Combo Connector, Cable Type, Signal and Power, IP67
Introduction:
This is a 17W2 hybrid D-Sub connector with a B-size shell. The Combo D-Sub combines both signal contacts and power contacts in a single connector. 17W2 has two power contacts and 15 standard signal contacts. This design allows for simultaneous transmission of high-frequency RF and low-frequency control signals within a single interface, significantly optimizing system wiring. Its IP67-rated sealing provides effective protection against liquid and dust intrusion. The connector utilizes precision-machined gold-plated terminals and a solder-cup cable termination, ensuring easy field installation. Our complete D-sub product line and dedicated accessories enable us to provide flexible and cost-effective connectivity solutions to meet any complex application challenge.
This waterproof 17W2 combo D-sub connector has many great features, including:
- Solder Cup Termination: Allows for fast, secure, and reliable cable soldering.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- IP67 Waterproof: Provides complete protection against water and dust, ensuring reliability in harsh environments.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
- Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.
Main Specifications:
General Information:
| Product Number: | YC-681-5058 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 17W2 | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 17 Pin | |
| Shell Sizes: | B | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal and Power |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Current rating: | 10A/20A/30A/40A | |
| Rated Voltage: | 500V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof 17W2 Combo D-Sub Connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
