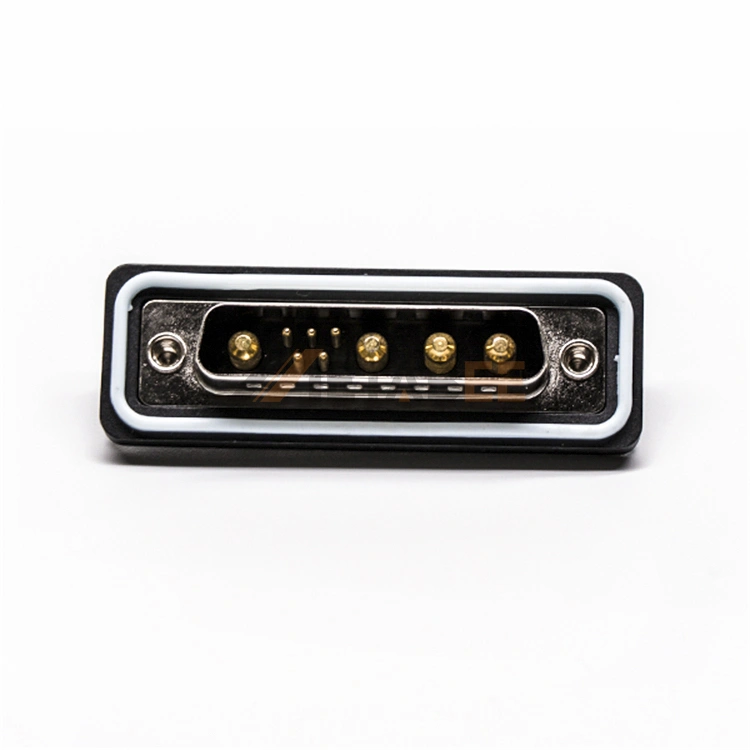

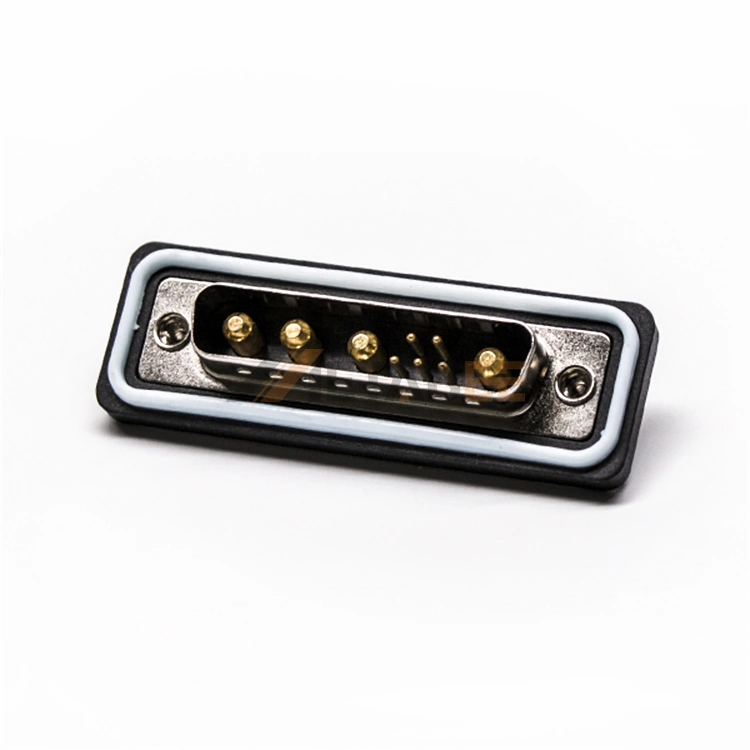

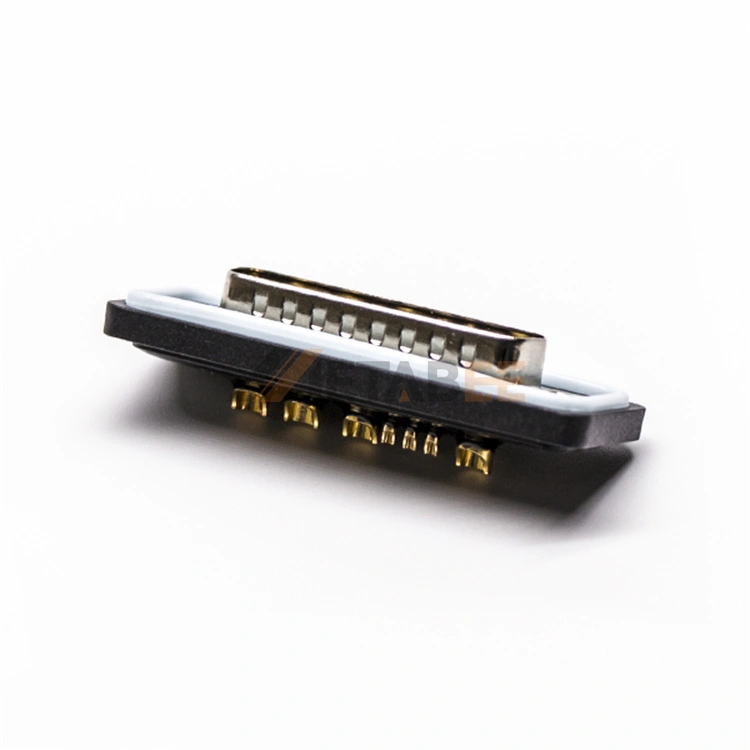

Waterproof 9W4 D-Sub 9 Pin Male Combo Connector, Cable Type, Signal and Power, IP67
Introduction:
This is a 9W4 hybrid D-Sub connector with a B-size shell. The Combo D-Sub combines both signal contacts and power contacts in a single connector. 9W4 has 4 power contacts and 5 standard signal contacts. Achieves IP67 waterproof rating. Protects against dust and water immersion. Ensures reliability in harsh conditions. Features straight cable-mount orientation. Solder cup termination enables secure cable attachment. The connector utilizes precision-machined contacts to guarantee high power transmission. Gold-plated brass contacts ensure superior conductivity. Operates reliably from -55°C to 125°C. Handles up to 40A current and 500V. Built for industrial power needs.
This waterproof 9W4 combo D-sub connector has many great features, including:
- IP67 Waterproof: Protects against dust ingress and temporary water immersion.
- Straight Cable Mount Orientation: Simplifies cable routing and strain relief.

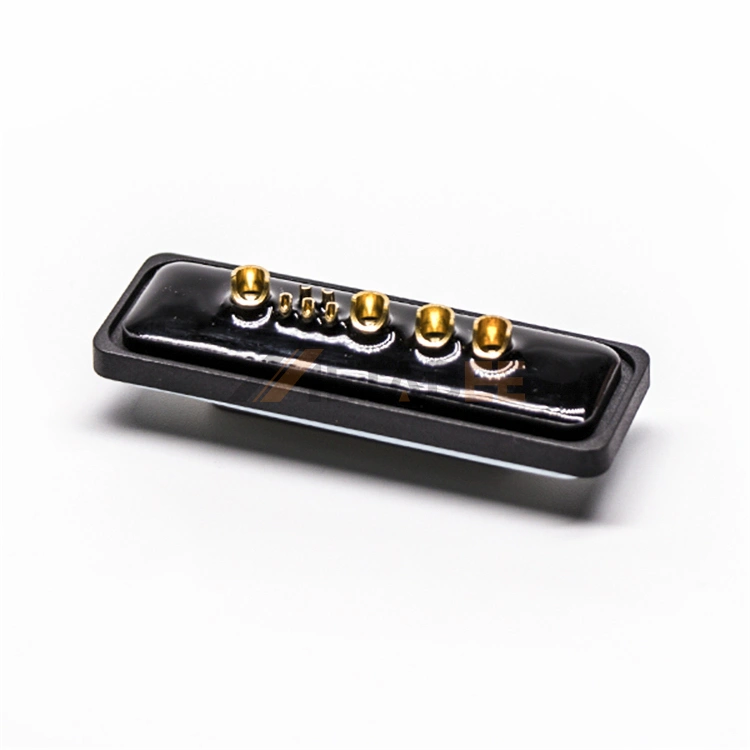

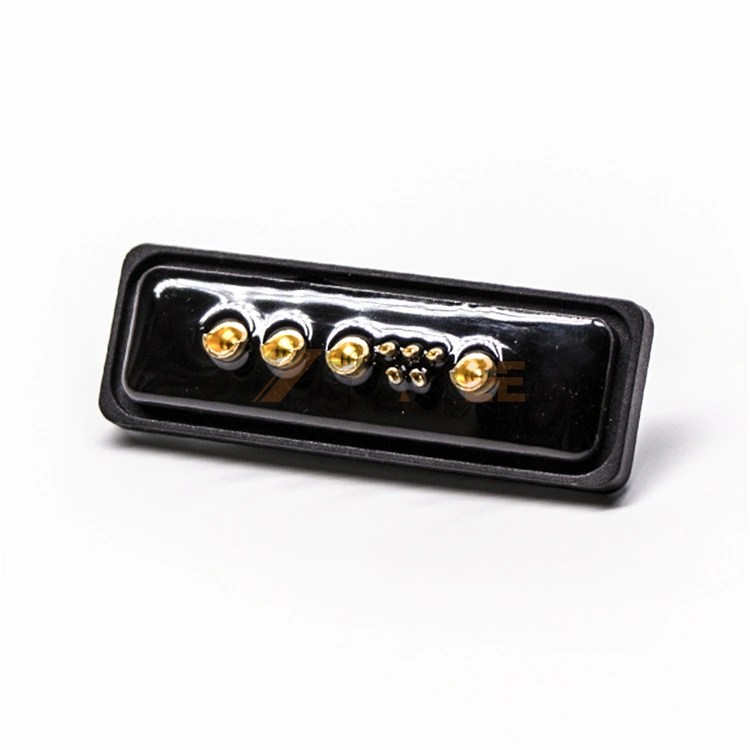

- Solder Cup Termination: Allows for fast, secure, and reliable cable soldering.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
- High Power Rating: Supports currents up to 40 amps and voltages up to 500 volts.
Main Specifications:
General Information:
| Product Number: | YC-681-1174 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 9W4 | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 9 Pin | |
| Shell Sizes: | B | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal and Power |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Current rating: | 10A/20A/30A/40A | |
| Rated Voltage: | 500V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof 9W4 Combo D-Sub Connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
