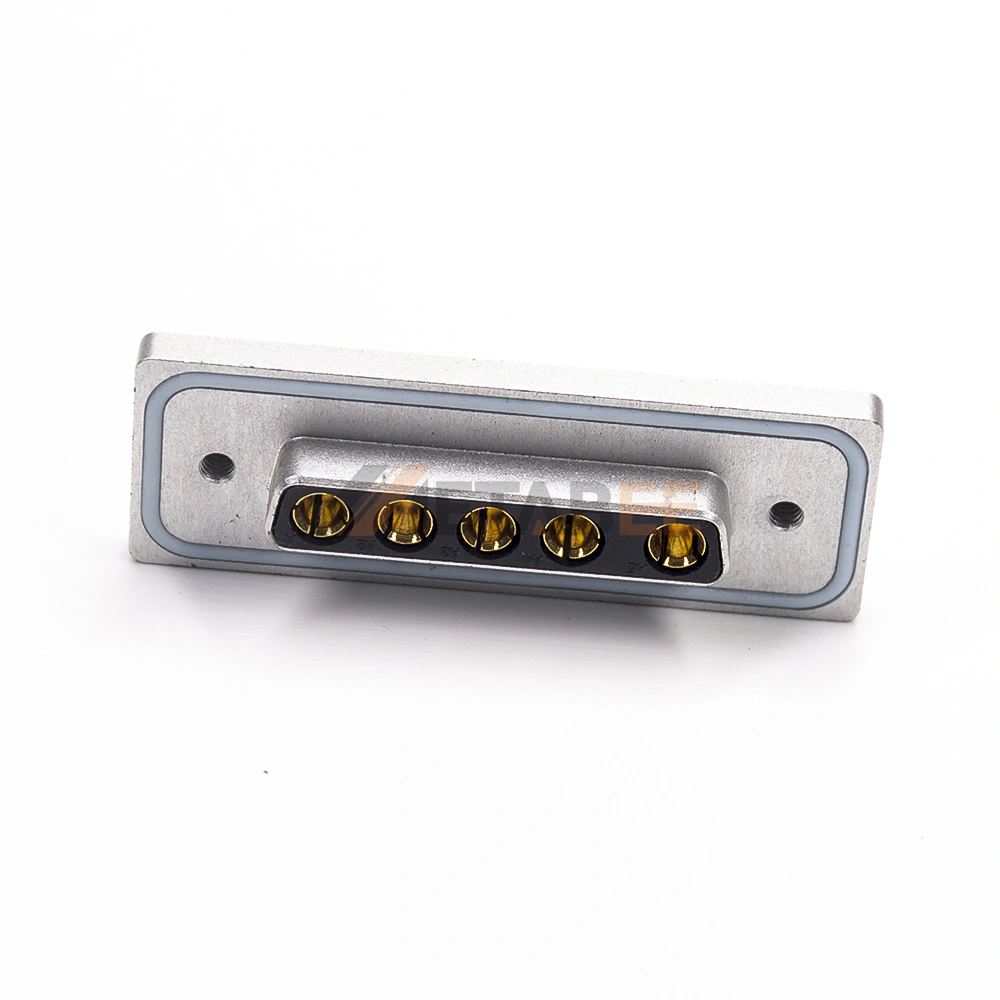

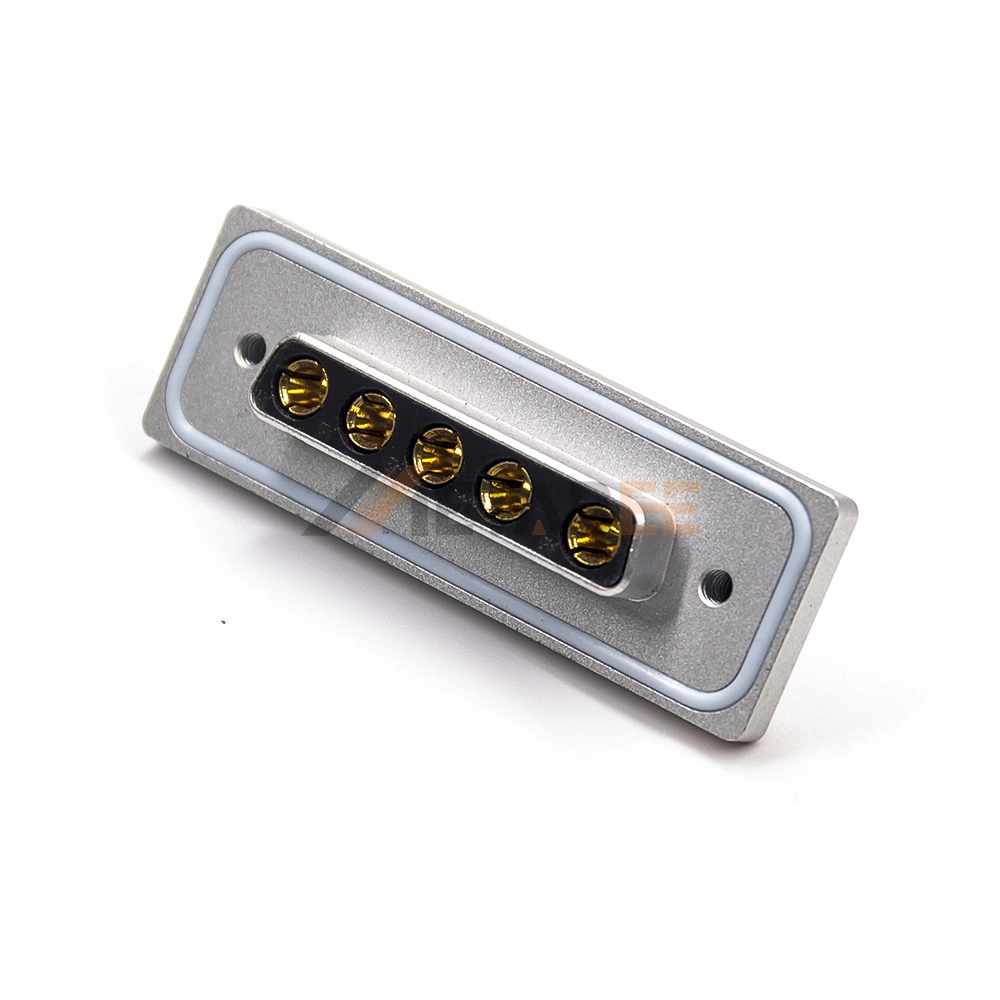

Waterproof 5W5 D-Sub 5 Pin Power Female Connector, Cable Type, Machined Contacts, IP67
Introduction:
This waterproof IP67 5W5 D-Sub female combo connector delivers dual functionality. Engineered for power transmission in harsh environments. Achieves IP67 waterproof rating. Protects against dust and water immersion. Ensures reliability in harsh conditions. Features straight cable-mount orientation. Solder cup termination enables secure cable attachment. The connector utilizes precision-machined contacts to guarantee high power transmission. Robust nickel-plated stainless steel housing ensures corrosion resistance. Gold-plated brass contacts ensure superior conductivity. Operates reliably from -55°C to 125°C. Handles up to 40A current and 500V. Built for industrial power needs.
This waterproof 5W5 combo D-sub connector has many great features, including:
- IP67 Waterproof: Protects against dust ingress and temporary water immersion.
- Straight Cable Mount Orientation: Simplifies cable routing and strain relief.

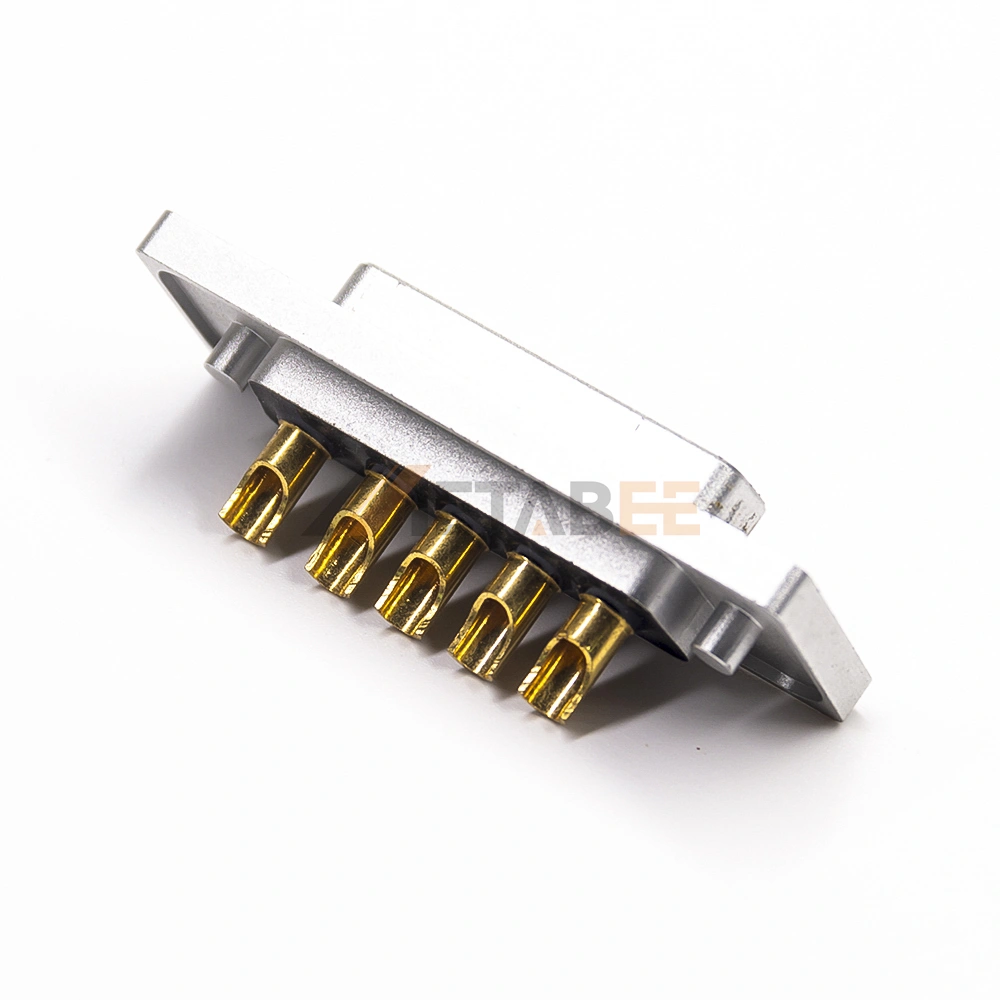

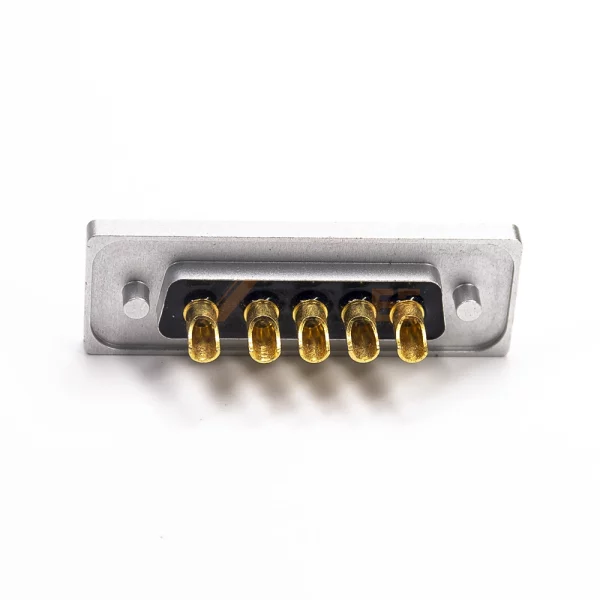

- Solder Cup Termination: Allows for fast, secure, and reliable cable soldering.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
- High Power Rating: Supports currents up to 40 amps and voltages up to 500 volts.
Main Specifications:
General Information:
| Product Number: | YC-681-5053 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 5W5 | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 5 Pin | |
| Shell Sizes: | B | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Power |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Current rating: | 10A/20A/30A/40A | |
| Rated Voltage: | 500V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof 5W5 Combo D-Sub Connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
