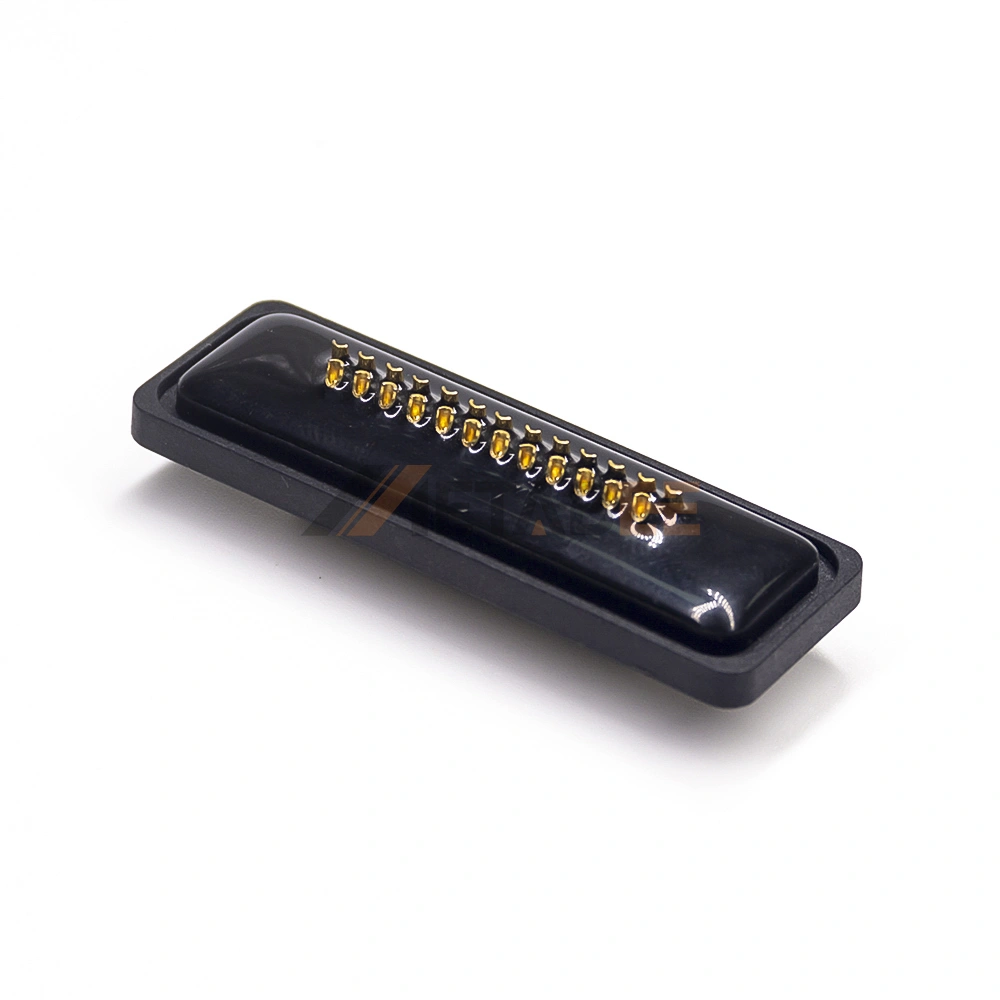

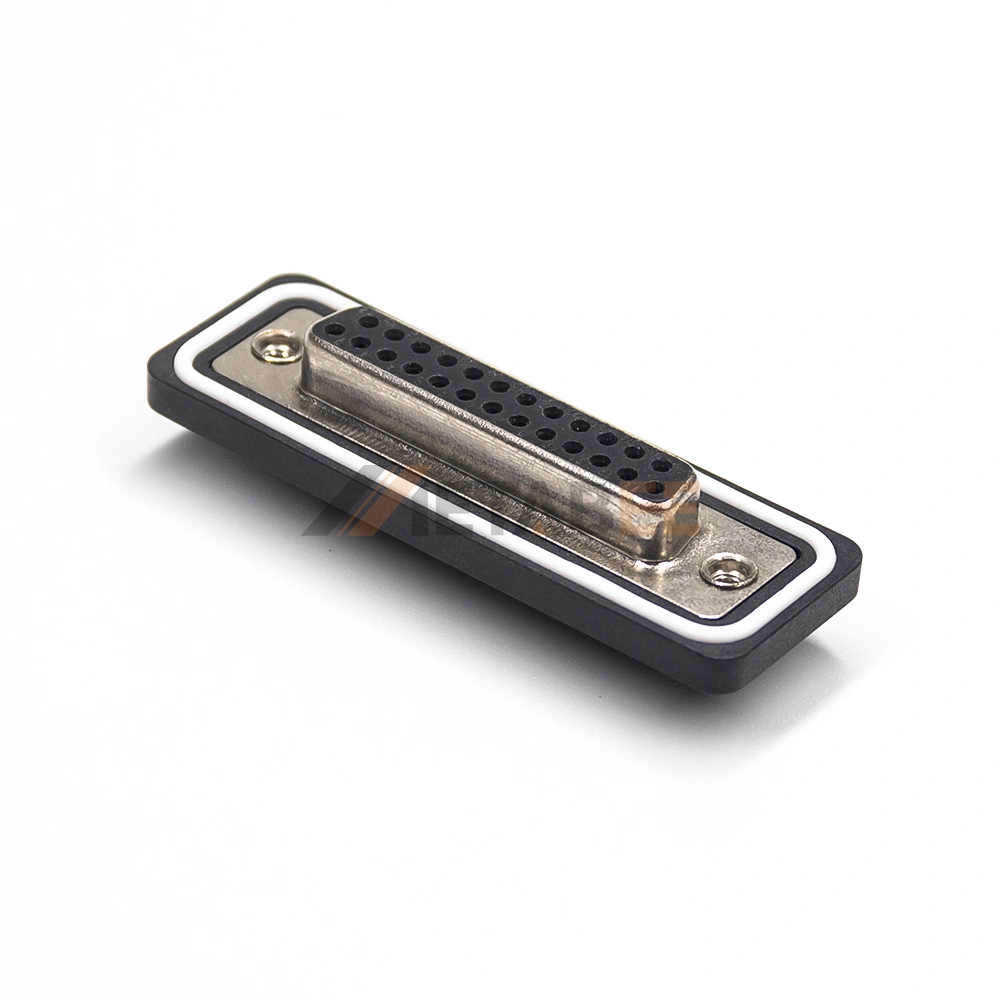

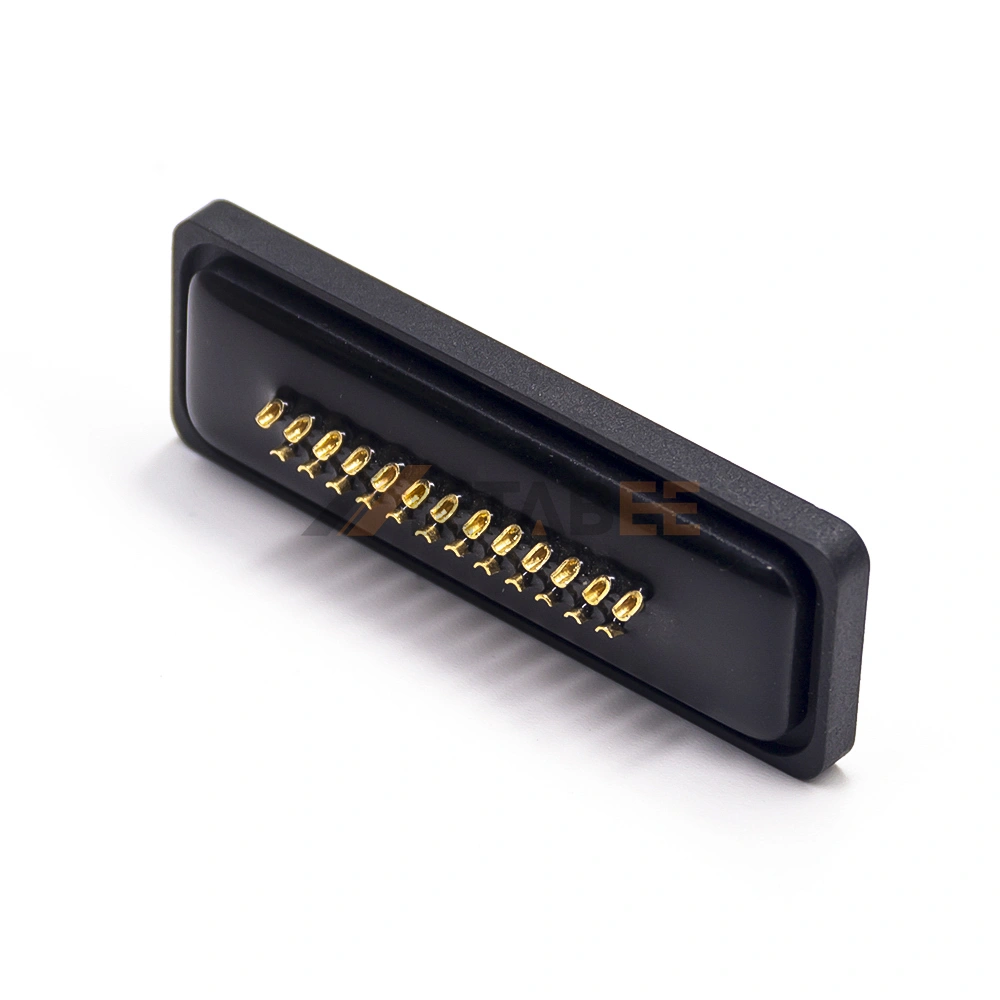

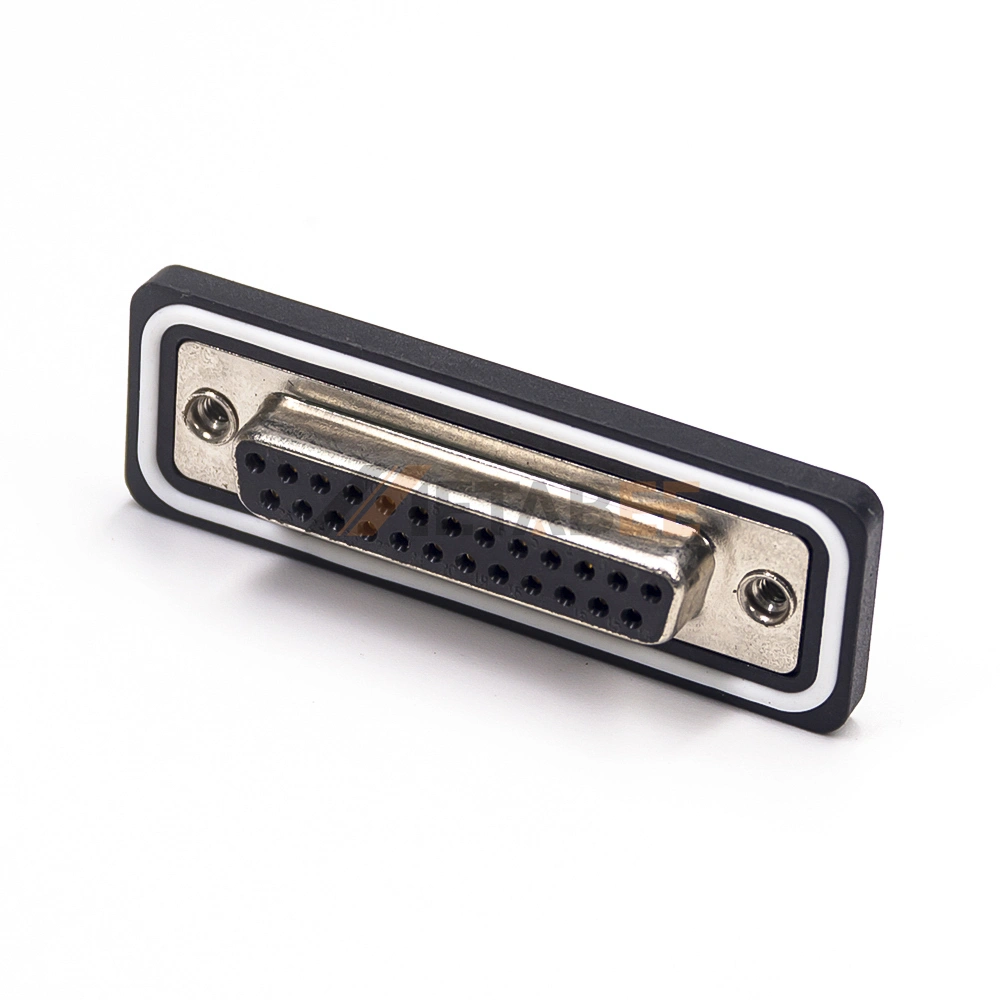

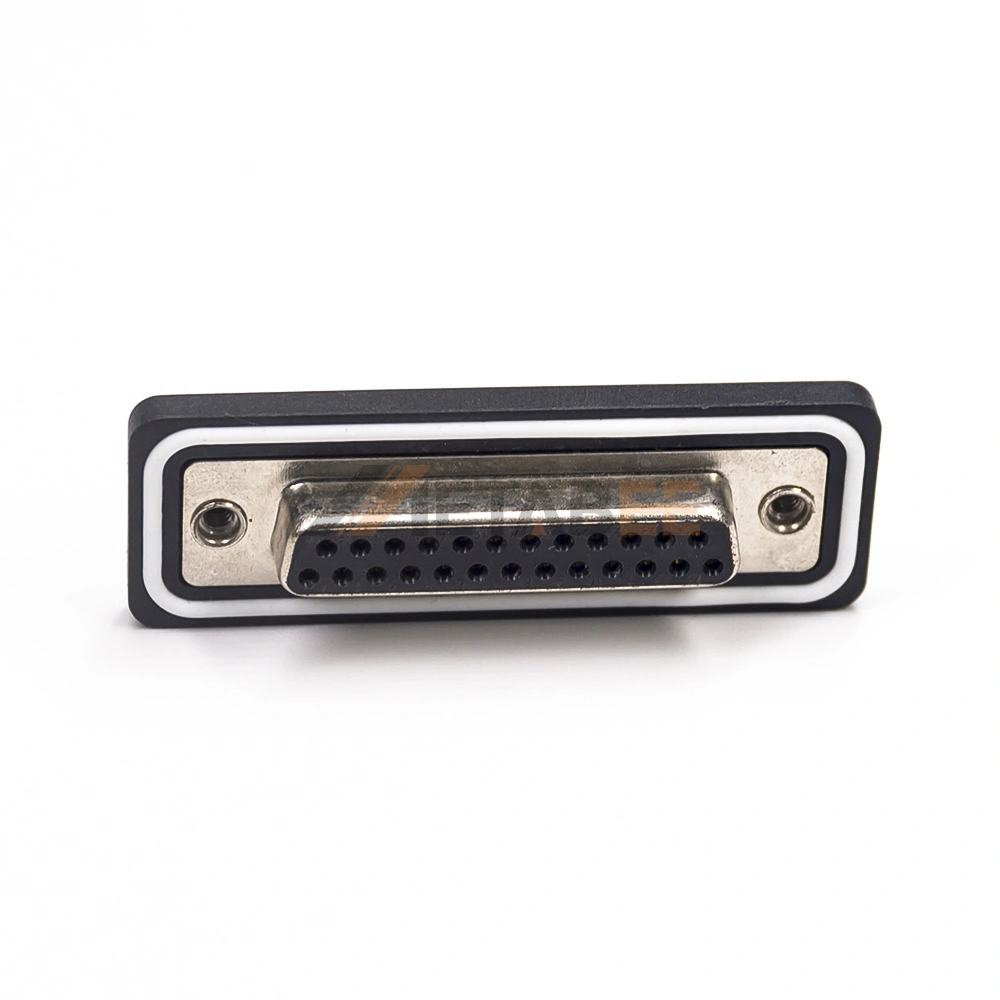

Waterproof DB25 Female Connector, Cable Type, Machined Contacts, 2.77mm Pitch, IP67
Introduction:
This is a waterproof DB25 Female connector designed for reliable cable mounting. It achieves a secure IP67 waterproof rating. It features a straight cable-type orientation. Robust nickel-plated steel housing ensures durability. Precision-machined brass contacts offer superior performance. Contacts feature reliable solder cup termination. Secure rear rivet nut mounting ensures a stable connection. Gold plating on the contacts enhances conductivity and corrosion resistance. The PBT insulator provides excellent electrical insulation. It operates reliably across a wide temperature range from -55°C to +125°C. Rated for 5A current and 250V voltage. This connector is built for demanding signal applications requiring environmental sealing.
Main Features:
- 25-Pin Female Contacts: Features a standard DB25 size B shell with 25 signal contacts.
- IP67 Waterproof Rating: Guarantees waterproof and dustproof performance.
- Cable Mount Type: Designed for direct cable attachment and termination.
- Solder Cup Termination: Enables reliable and strong wire connections.
- Wide Operating Temperature: Functions reliably from -55°C to +125°C.
- Gold-Plated Contacts: Gold over nickel plating provides superior conductivity and corrosion resistance
Main Specifications:
General Information:
| Product Number: | YC-681-5029 | |
| Connector Series: | Standard D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 25 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | B | |
| Mount Type: | Cable Type | |
| Mount Feature: | Rear Rivet Nut | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 10 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof D-Sub 25 Pin Female Connector:
- Industrial Automation Equipment
- Outdoor Monitoring & Control Systems
- Marine Electronics
- Transportation Systems
- Medical Devices
- Military & Aerospace Field Gear
