Waterproof D-Sub 25 Pin Male Connector, Cable Type, Machined Contacts, 2.77mm Pitch, IP67
Introduction:

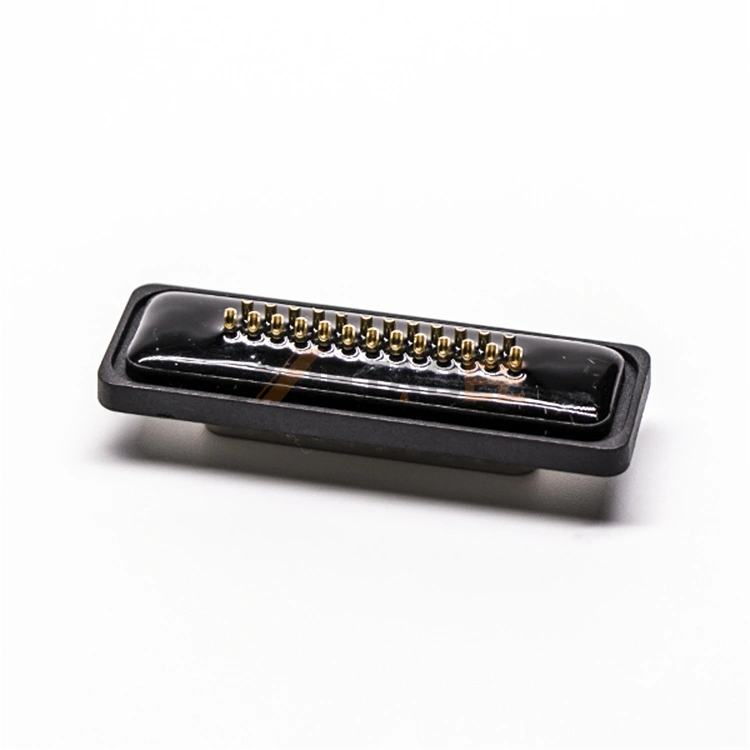

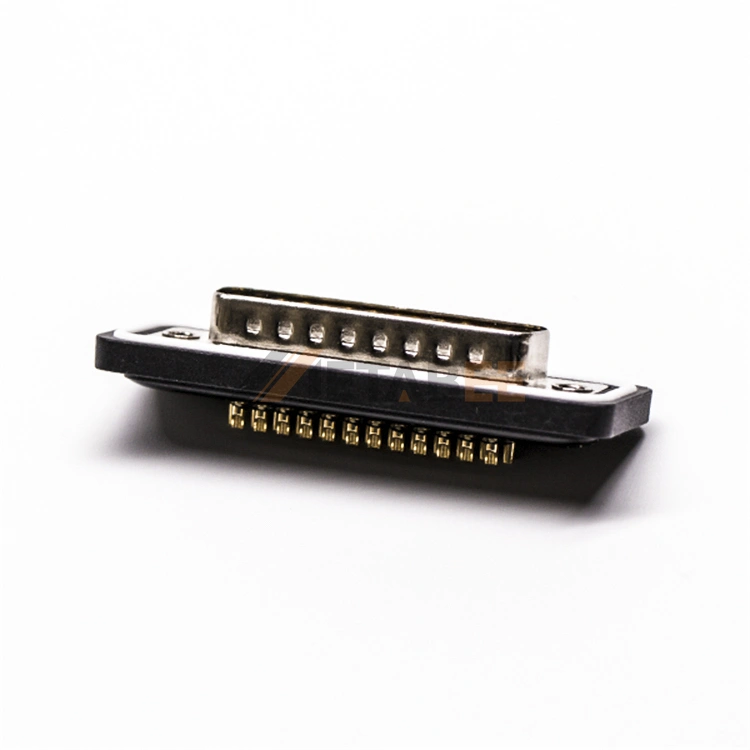

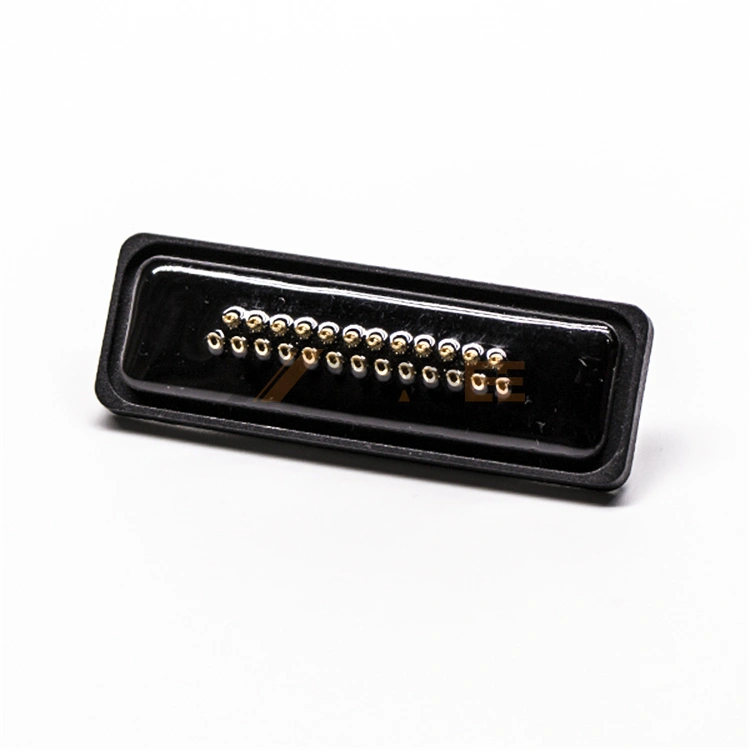

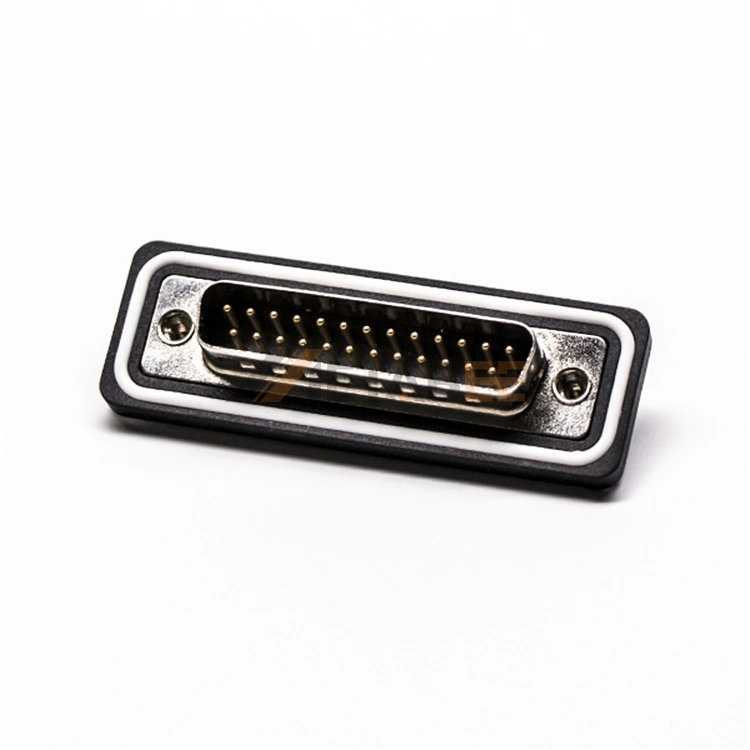

This is a waterproof DB25 Male connector designed for reliable cable mounting. It achieves a secure IP67 waterproof rating. It features a straight cable-type orientation. Robust nickel-plated steel housing ensures durability. Precision-machined brass contacts offer superior performance. Contacts feature reliable solder cup termination. Gold plating on the contacts enhances conductivity and corrosion resistance. The PBT insulator provides excellent electrical insulation. It operates reliably across a wide temperature range from -55°C to +125°C. Rated for 5A current and 250V voltage. This connector is built for demanding signal applications requiring environmental sealing.
Main Features:
- 25-Pin Male Contacts: Features a standard DB25 size B shell with 25 signal contacts.
- IP67 Waterproof Rating: Guarantees waterproof and dustproof performance.
- Cable Mount Type: Designed for direct cable attachment and termination.
- Solder Cup Termination: Enables reliable and strong wire connections.
- Wide Operating Temperature: Functions reliably from -55°C to +125°C.
- Gold-Plated Contacts: Gold over nickel plating provides superior conductivity and corrosion resistance
Main Specifications:
General Information:
| Product Number: | YC-681-1177 | |
| Connector Series: | Standard D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 25 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | B | |
| Mount Type: | Cable Type | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 10 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof D-Sub 25 Pin Male Connector:
- Industrial Automation Equipment
- Outdoor Monitoring & Control Systems
- Marine Electronics
- Transportation Systems
- Medical Devices
- Military & Aerospace Field Gear
