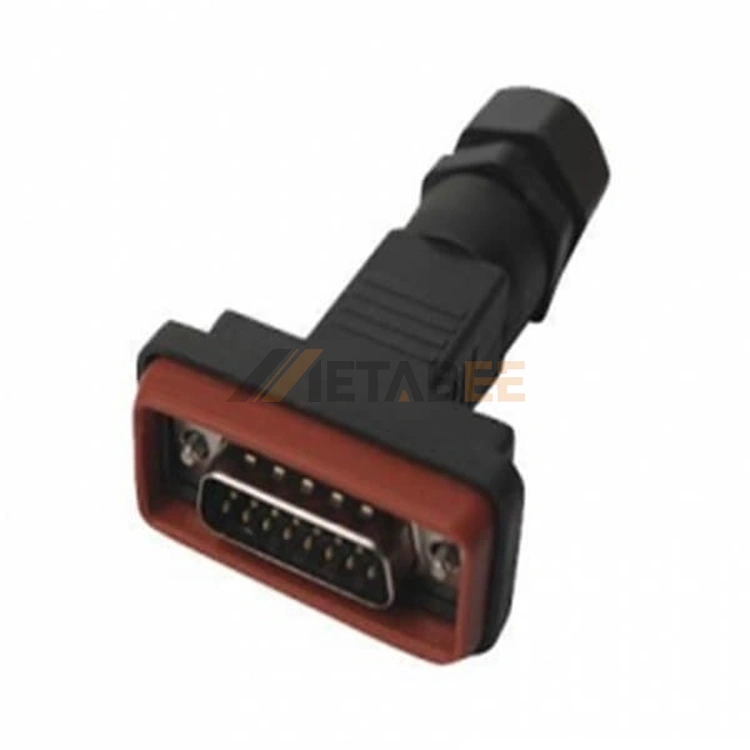

Waterproof D-Sub 15 Pin Female Standard Connector with Plastic Hood, Solder Cable Type, 2.77mm Pitch, IP68
Introduction:
This is a waterproof 15-pin female D-sub connector with a plastic hood designed for cable mounting. It features a straight orientation and a rugged A-size shell. These female contacts provide a secure solder connection to the cable. It achieves a reliable IP68 environmental seal and features a durable Plastic Hood. The nickel-plated steel shell ensures excellent corrosion resistance. Precision-stamped brass contacts are tin-plated for optimal signal integrity. The connector uses a durable PBT insulator. It operates reliably in extreme temperatures from -55°C to +125°C. Rated for 5A current and 250V voltage. Ideal for industrial, marine, and outdoor applications where moisture resistance is critical.
Main Features:
- 15-Pin Female Contacts: Stamped brass construction ensures precision and durability.
- IP68 Waterproof Rating: Ensures total dust protection and resistance to prolonged water immersion.
- Cable Mount Type: Designed for direct cable attachment and termination.
- Solder Contact Termination: Provides a secure and permanent electrical connection to the cable.
- Tough Plastic Hood: Provides excellent corrosion resistance and reduces overall weight.
- Wide Operating Temperature: Functions reliably from -55°C to +125°C.
Main Specifications:
General Information:
| Product Number: | YC-681-5001 | |
| Connector Series: | Standard D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 15 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | A | |
| Mount Type: | Cable Type | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contacts | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Tin Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP68 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof D-Sub 15 Pin Female Connector:
- RS-232 Serial Communication
- Legacy Computer Peripherals
- Industrial Automation & Control Systems
- Scientific & Test Equipment
- Point-of-Sale (POS) Systems
- Audio/Visual Control Interfaces
