USB 2.0 Type B Receptacle, 4 Pin, PCB Thru-Hole, R/A
Introduction:
The USB 2.0 Type B receptacle connector is engineered for stable and efficient data and power transmission in a wide range of electronic applications. Designed with a standard Type B interface and single-port configuration, this female connector ensures reliable mating with compatible USB devices. Its right-angle orientation optimizes PCB layout, making it ideal for space-constrained designs and horizontal mounting requirements.
Constructed with a durable SPCC shell and nickel plating, the connector delivers excellent mechanical strength and corrosion resistance. The brass contacts with gold plating provide superior conductivity, low contact resistance, and enhanced durability over extended mating cycles. With a rated current of 5A and a wide operating temperature range from -40°C to +85°C, this connector ensures consistent performance in demanding industrial and commercial environments.
Additionally, the connector meets UL94V-0 flammability standards, ensuring enhanced safety and reliability in critical applications. Its PCB through-hole mounting design offers strong mechanical retention, making it suitable for applications requiring robust and secure connections.
Key Features
- USB 2.0 Type B receptacle, 4-pin single port design
- Right-angle PCB through-hole mounting for space efficiency
- SPCC shell with nickel plating for durability and corrosion resistance
- Brass contacts with gold plating for optimal conductivity
- Rated current up to 5A for stable power delivery
- UL94V-0 flammability rating with -40°C to +85°C operating range

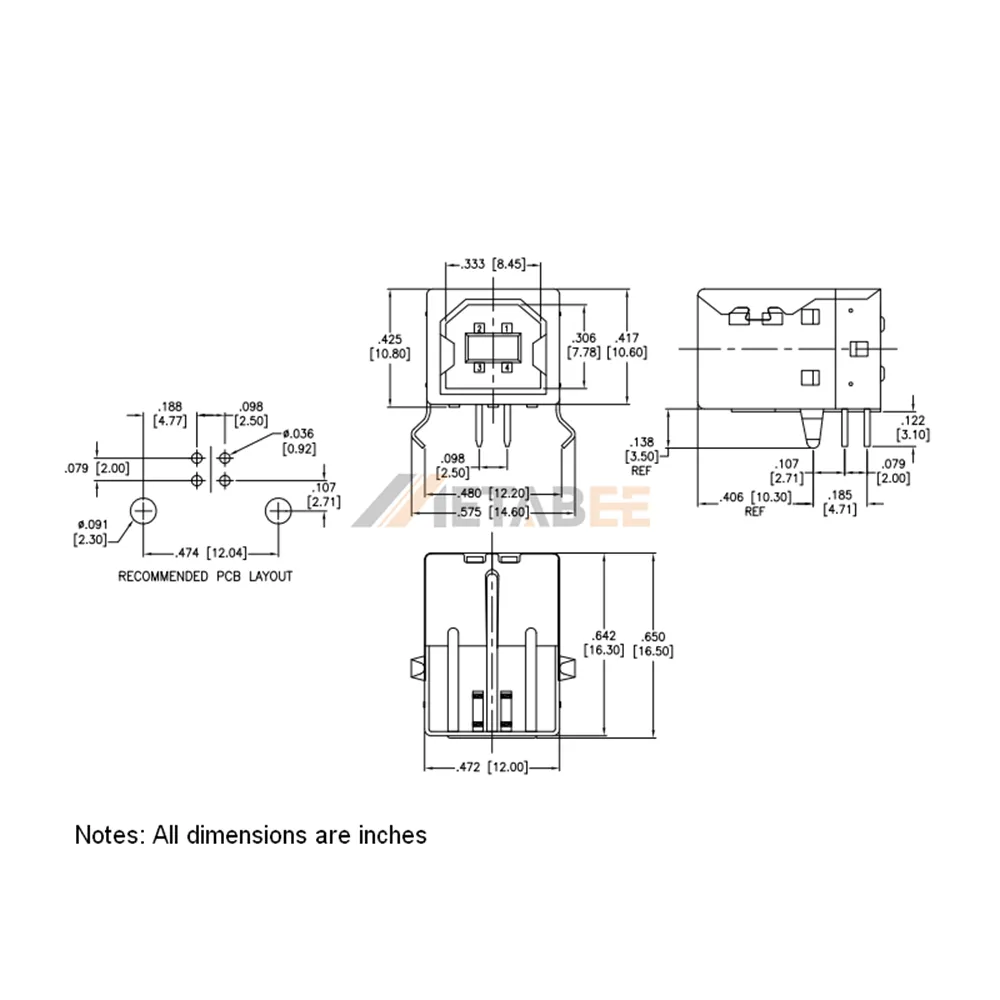

Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-RA-CS1-SPCC-WT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | SPCC | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type B Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
