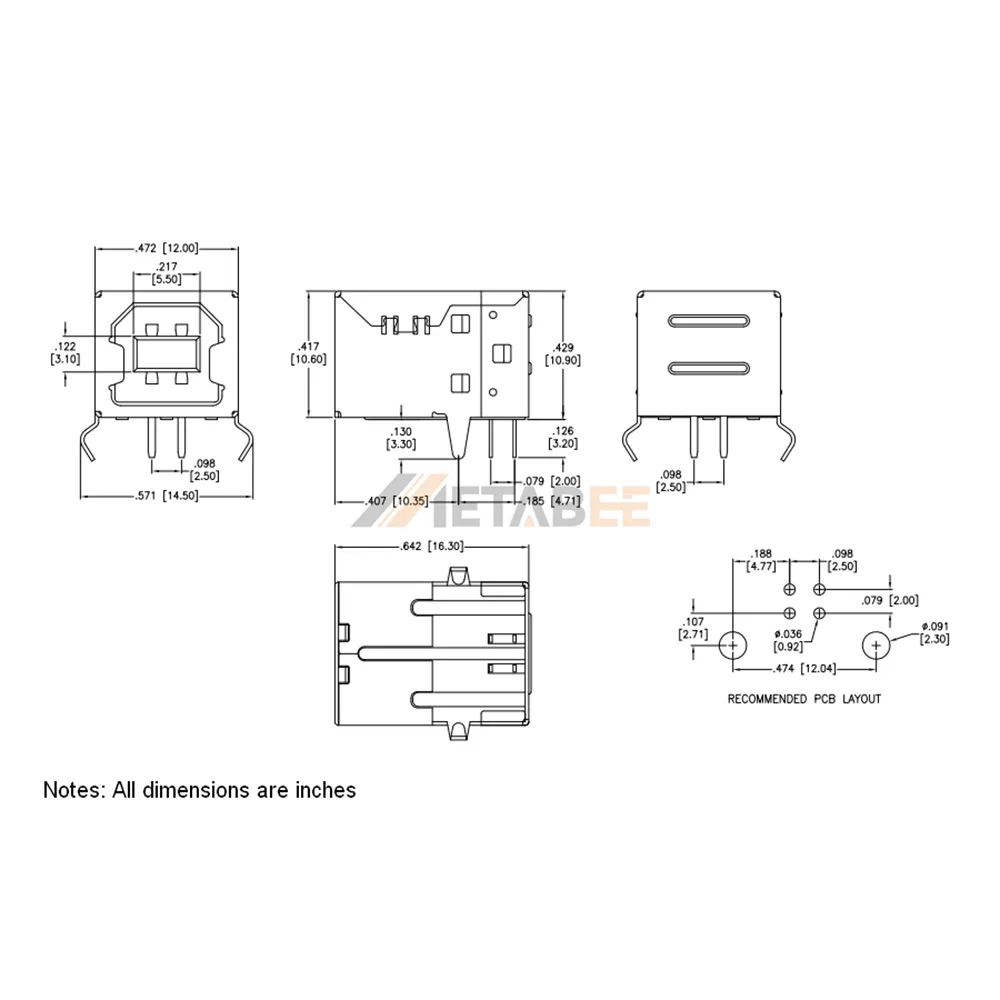

USB 2.0 Type B Receptacle, 4 Pin, PCB Mount, THT, R/A
Introduction:
The USB 2.0 Type B Receptacle is a high-reliability, single-port connector designed for standard peripheral interfaces, such as printers, scanners, and industrial equipment. Featuring a Right Angle (R/A) mounting orientation, this 4-pin jack is engineered for Through-Hole Technology (THT) on PCBs, providing a secure mechanical bond and a low-profile horizontal connection. It is the perfect solution for developers seeking a robust, space-efficient interface for data synchronization.
Engineered for longevity, the connector is constructed with a Nickel-plated Brass shell, offering superior electromagnetic interference (EMI) shielding and corrosion resistance. The internal Brass contacts are Gold-plated, ensuring optimal electrical conductivity and consistent signal integrity even after repeated mating cycles. With a wide operating temperature range of -40°C to +85°C and a UL94V-0 flame retardancy rating, this receptacle delivers professional-grade performance in both commercial and harsh industrial environments.
Key Features
- Right Angle THT Design: Optimized for horizontal PCB mounting and space-saving layouts.
- Gold-Plated Brass Contacts: Ensures premium conductivity and prevents signal oxidation.
- Nickel-Plated Brass Shell: Provides high mechanical durability and effective EMI shielding.
- 1.5A Current Rating: Supports efficient power delivery and high-speed data transfer.
- Industrial Temperature Range: Reliable operation from -40°C up to +85°C.
- Safety Certified: Meets UL94V-0 standards for maximum flame and heat resistance.
Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-RA-CS2-WT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VDC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type B Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
