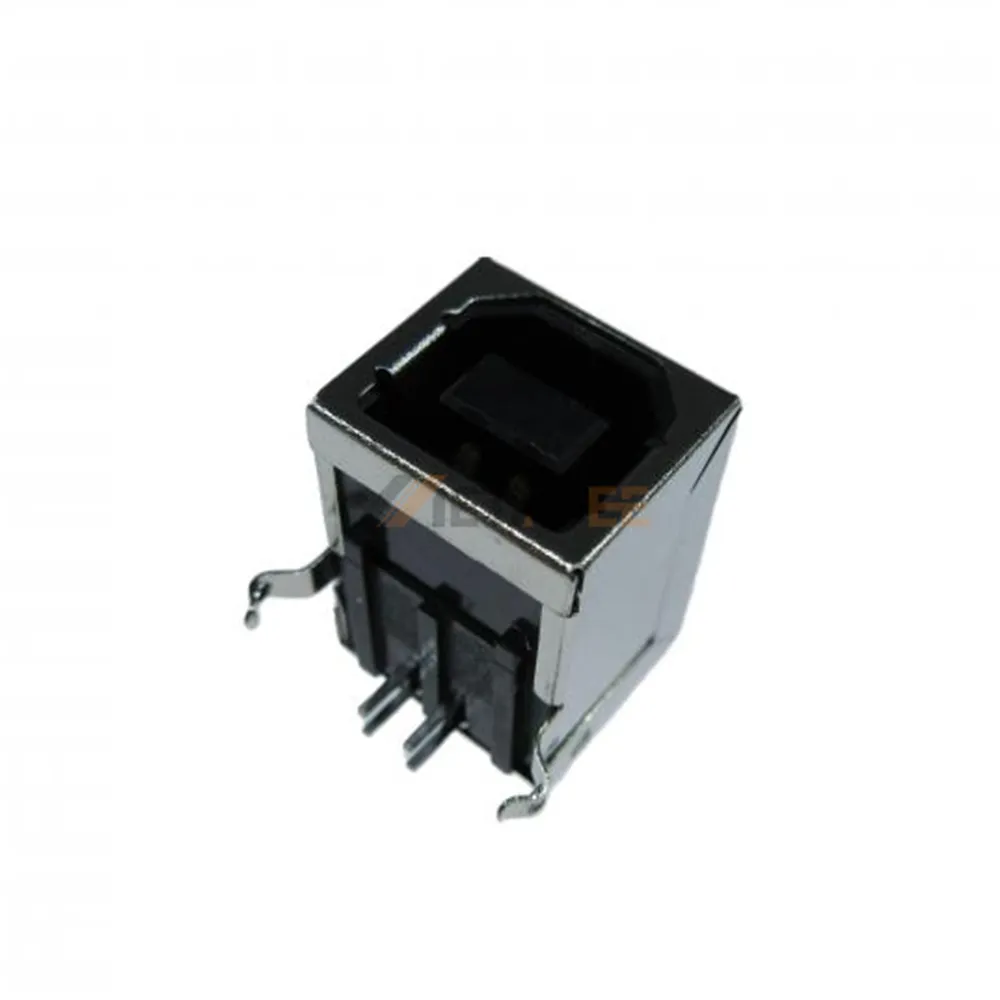

USB 2.0 Type B Jack, 4 Pin, PCB THT, R/A
Introduction:
The USB 2.0 Type B jack is a reliable and durable receptacle designed for secure PCB mounting in a wide range of electronic applications. Engineered with a right-angle orientation, this single-port connector enables space-efficient horizontal installation, making it ideal for devices with limited vertical clearance. The housing is constructed from robust brass with a nickel-plated finish for excellent corrosion resistance, while the contacts feature brass with gold plating to ensure consistent signal integrity and enhanced durability over repeated use. Rated at 1A and 30VAC, it complies with UL94V-0 flammability standards and operates reliably across a wide temperature range from -40°C to +85°C, making it suitable for industrial, commercial, and consumer electronics.
This through-hole termination (THT) design provides strong mechanical retention to the PCB, ensuring long-term reliability in demanding environments. Whether used in printers, industrial control systems, or data acquisition equipment, the Type B receptacle offers a secure interface for standard USB 2.0 connections. Its combination of premium materials, precise engineering, and compliance with stringent safety and performance standards makes it a trusted choice for applications requiring stable data transfer and power delivery.
Key Features
- Right-angle, through-hole PCB mounting for space-saving designs
- Gold-plated brass contacts and nickel-plated brass shell for superior conductivity and corrosion resistance
- Rated at 1A, 30VAC with UL94V-0 flammability rating
- Wide operating temperature range: -40°C to +85°C
- Standard USB 2.0 Type B, 4-pin single-port receptacle
- Robust mechanical retention ideal for industrial and consumer applications
Main Specifications:
General Information:
| Product No.: | YC-USB-B-S-RA | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-B | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type B Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
