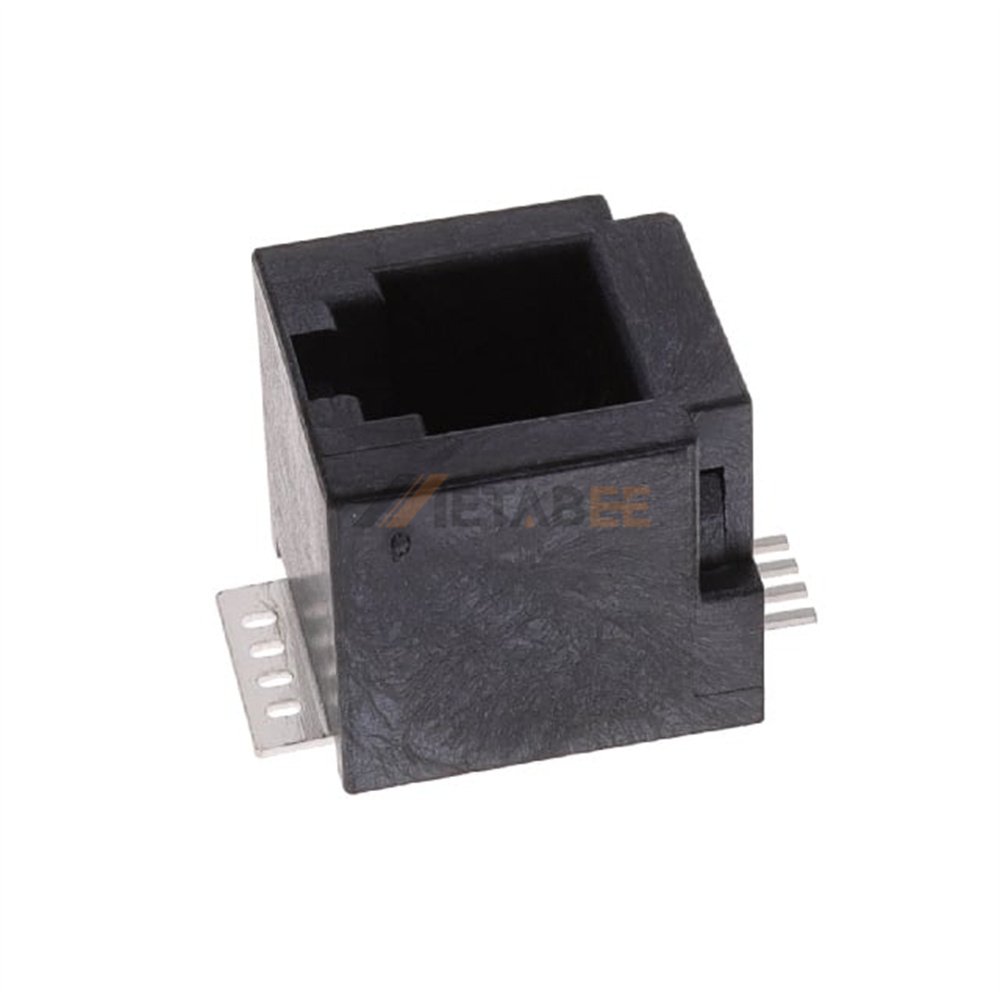

SMT Vertical RJ9 4P4C Jack, 1 Port, Unshielded, Surface Mount, Tab-Up, No LED
Introduction:
This is a single port SMT vertical RJ9 4P4C jack designed for stable top-entry surface mount attachment to high-density printed circuit boards. It utilize a hi-temp thermoplastic housing that survive intense industrial reflow soldering processes without any physical deformation. The Phosphor Bronze contacts feature a Gold finish to ensure high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up configuration and matte tin-plated brass hold downs, this unshielded component effectively saves PCB surface area while providing a secure mechanical bond. Technicians utilize this reliable modular interface for telephone handsets and telecommunication gear requiring secure vertical SMT connectivity across a range of -40°C to +85°C.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact board layouts.
- SMT Surface Mount: Facilitates efficient and automated high-speed PCB assembly.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Material: Survives intense heat during industrial reflow soldering.
- Brass Hold Downs: Provides a strong and stable mechanical PCB bond.
Main Specifications:
General Information:
| Product No.: | MTJ-44HX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ9 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
