4 Pin Modular Jack 4P4C RJ9 Socket Jack Female Connector, 1 Port, Unshielded, Through Hole, R/A, No LED
Introduction:
This is a single port 4 pin modular jack designed for stable right angle through hole mounting on networking circuit boards. It utilize a durable black PBT housing that maintains structural integrity across a temperature range of -40°C to +85°C. The 4P4C RJ9 interface features Phosphor Bronze contacts with premium Gold over Nickel plating to support a consistent 1.5A current rating. By using a right angle configuration, this unshielded component effectively saves vertical board space while providing a high insulation resistance of 1000 mohms. Technicians utilize this reliable modular interface for telephone handsets and telecommunication hardware requiring secure 4-wire connectivity.
Key Features
- 4P4C RJ9 Interface: Supports standard modular connectivity for telephone handsets.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Durable PBT Housing:Performs reliably between -40°C and +85°C environments.
- High Insulation Resistance: Maintains 1000 mohms for enhanced electrical safety.
- Right Angle Mounting: Optimizes vertical clearance for specialized board layouts.
Main Specifications:
General Information:

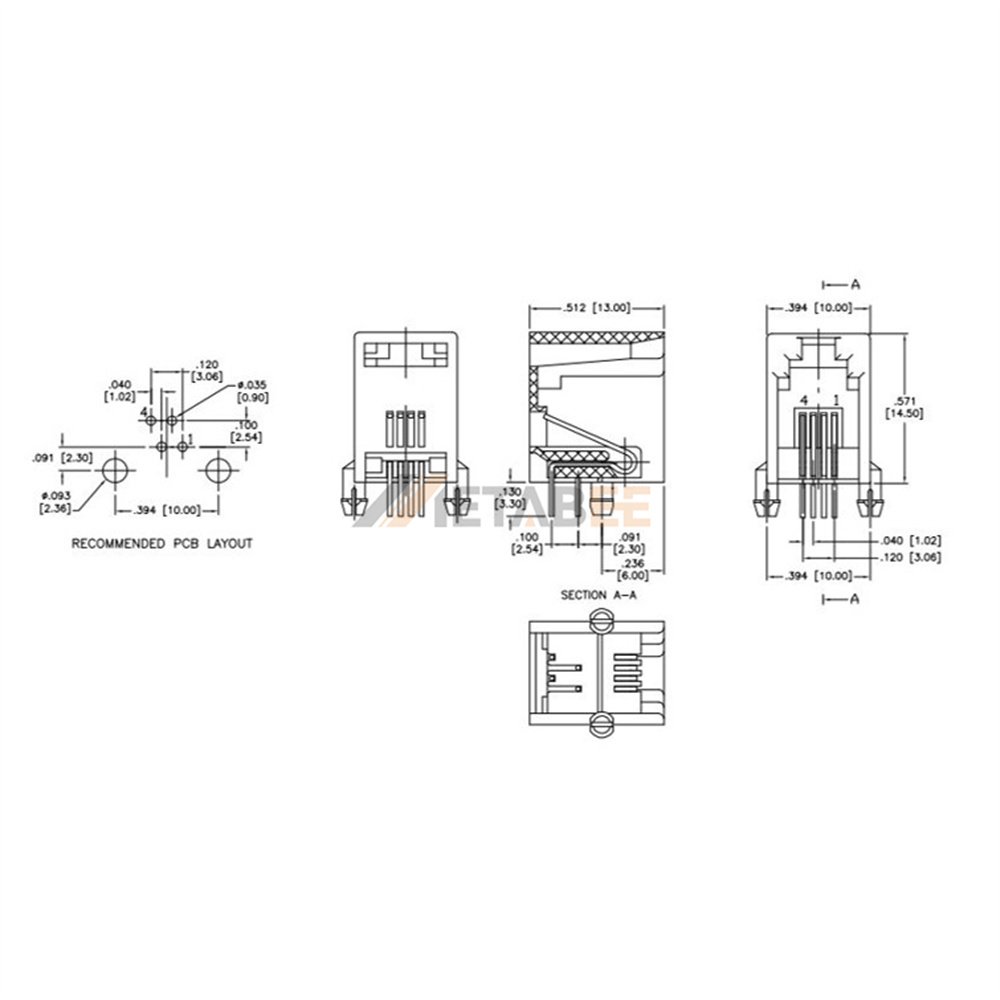

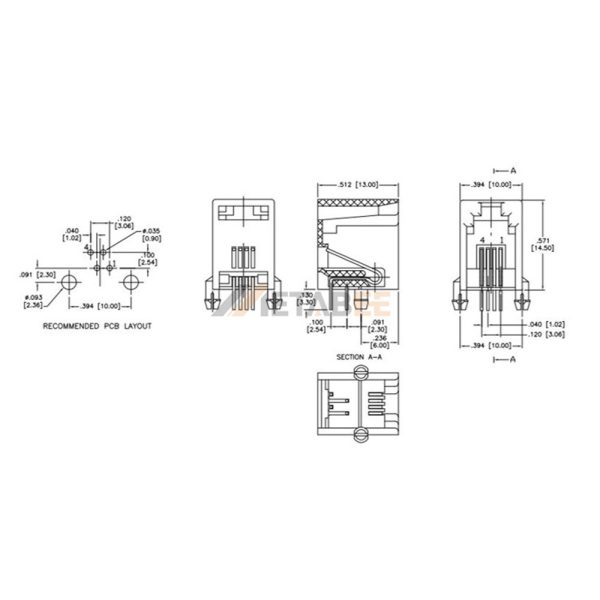

| Product No.: | MTJ-441X1-N, MTJ-442BX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ9 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up / Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
