Right Angle RJ10 RJ9 4P4C Black Telephone Socket, 1 Port, Unshielded, Through Hole, R/A, Tab-Up, No LED
Introduction:
This is a single port rj9 4p4c socket designed for stable right angle through hole mounting on networking circuit boards. It features a durable PBT housing in black or gray that maintains high thermal stability during industrial soldering while providing a superior insulation resistance up to 1000 mohms. The Phosphor Bronze contacts include a premium Gold over Nickel finish to ensure high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up configuration, this unshielded interface effectively saves vertical board space while handling dielectric voltages up to 1500 VDC safely. Technicians utilize this reliable modular connector for telephone handsets and telecommunication gear requiring secure 4-pin board-to-cable links.
Key Features
- RJ9 4P4C Interface: Supports standard modular connectivity for telephone handsets.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Up Orientation: Optimizes vertical clearance for specialized board layouts.
- Durable PBT Material: Performs reliably between -40°C and +85°C environments.
- High Dielectric Strength: Withstands 1500 VDC for enhanced electrical safety.
Main Specifications:
General Information:

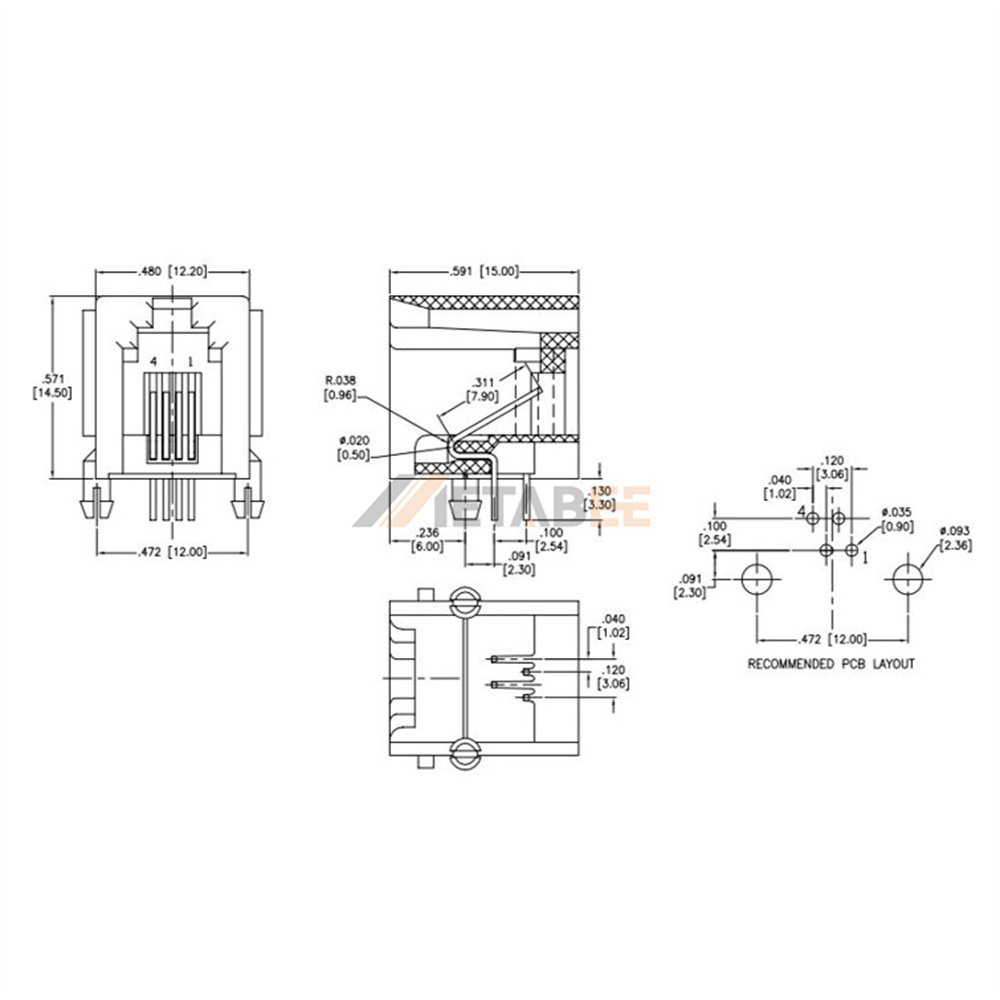

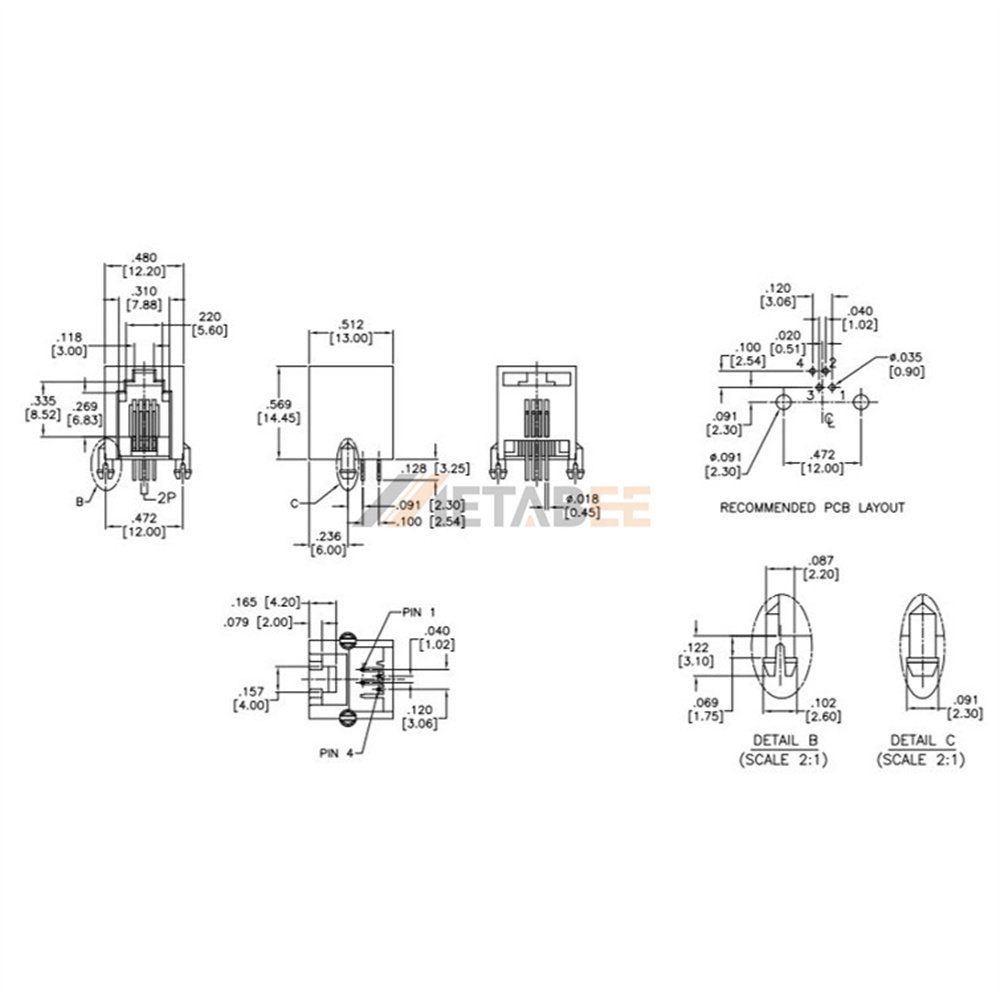

| Product No.: | MTJ-442CX2, MTJ-442X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ9 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 mohms min / 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Gray / Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
