180 Degree RJ9 Telephone Female Socket, 1 Port, Unshielded, Surface Mount, Tab-Up, No LED
Introduction:
This is a single port 180 degree RJ9 telephone female socket designed for stable top-entry surface mount attachment to printed circuit boards. It features a hi-temp thermoplastic housing specifically engineered to survive intense industrial reflow soldering processes without warping. The 4P4C interface utilizes Gold plated Phosphor Bronze contacts to ensure superior conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up vertical configuration, this unshielded component effectively saves PCB surface area while maintaining a high insulation resistance of 1000 mohms. Technicians utilize this reliable modular interface for telephone handsets and telecommunication gear requiring secure vertical SMT connectivity.
Key Features
- Vertical SMT Design: Optimizes top-entry connectivity for compact board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- 4P4C RJ9 Interface: Provides standard modular connectivity for voice systems.
- 1.5A Current Support: Handles efficient power delivery for telecommunication hardware.
Main Specifications:
General Information:
| Product No.: | MTJ-44KX1-A | |
| Series: | MTJ | |
| Category: | Single Port RJ9 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 40mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC rms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -20℃ to +75℃ | |
| Flammability Rating: | UL 94 V-0 |

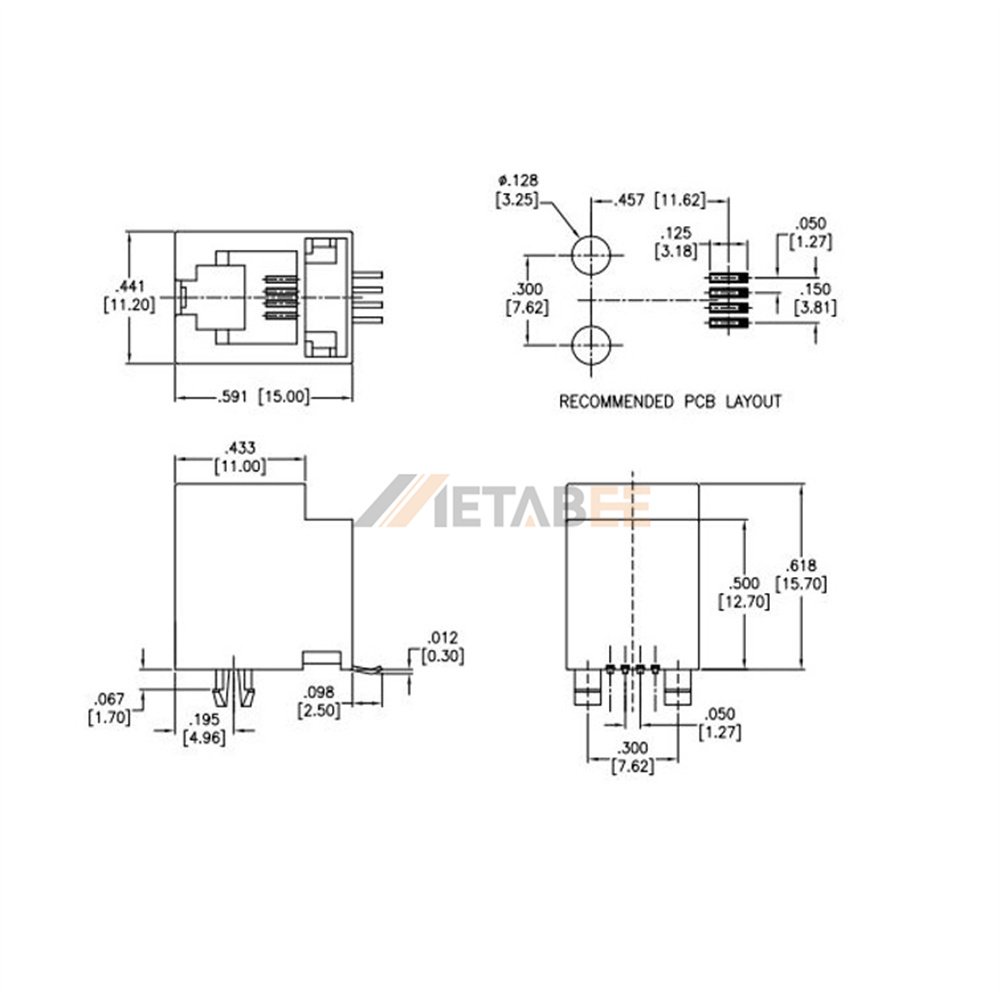

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
