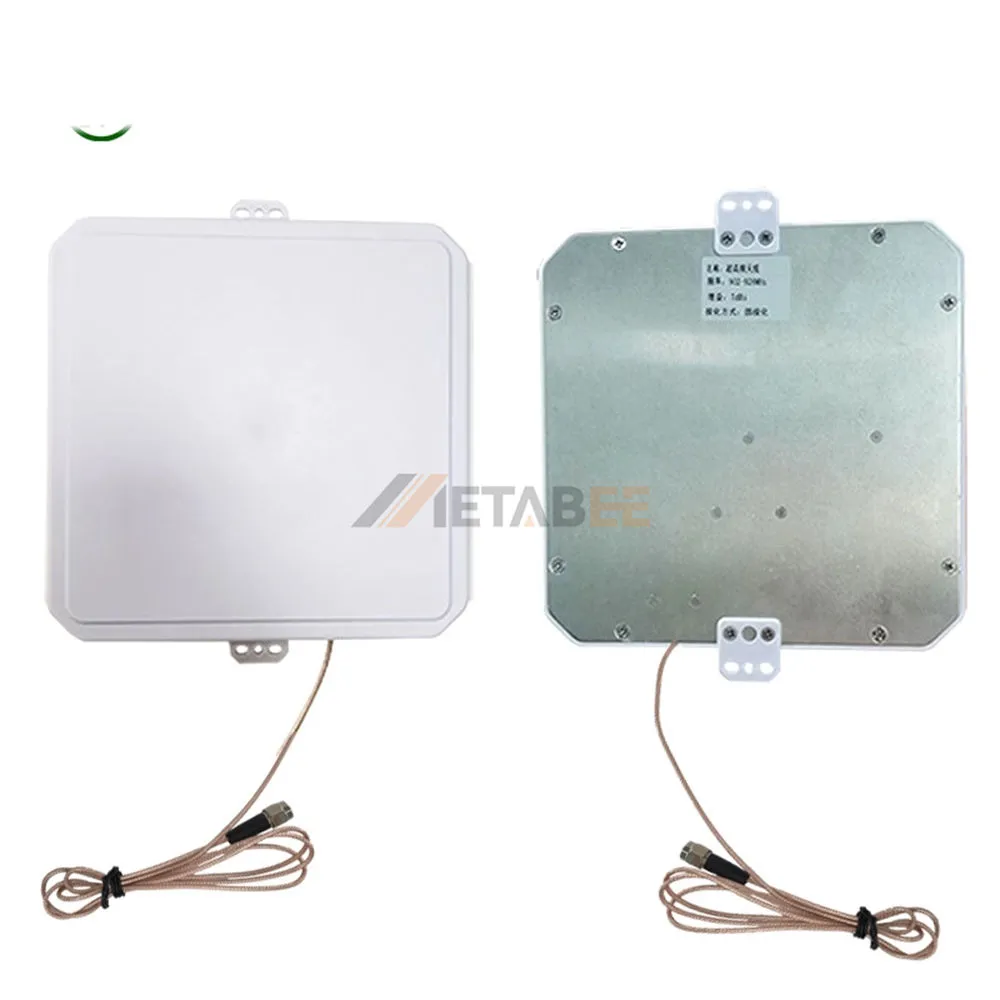

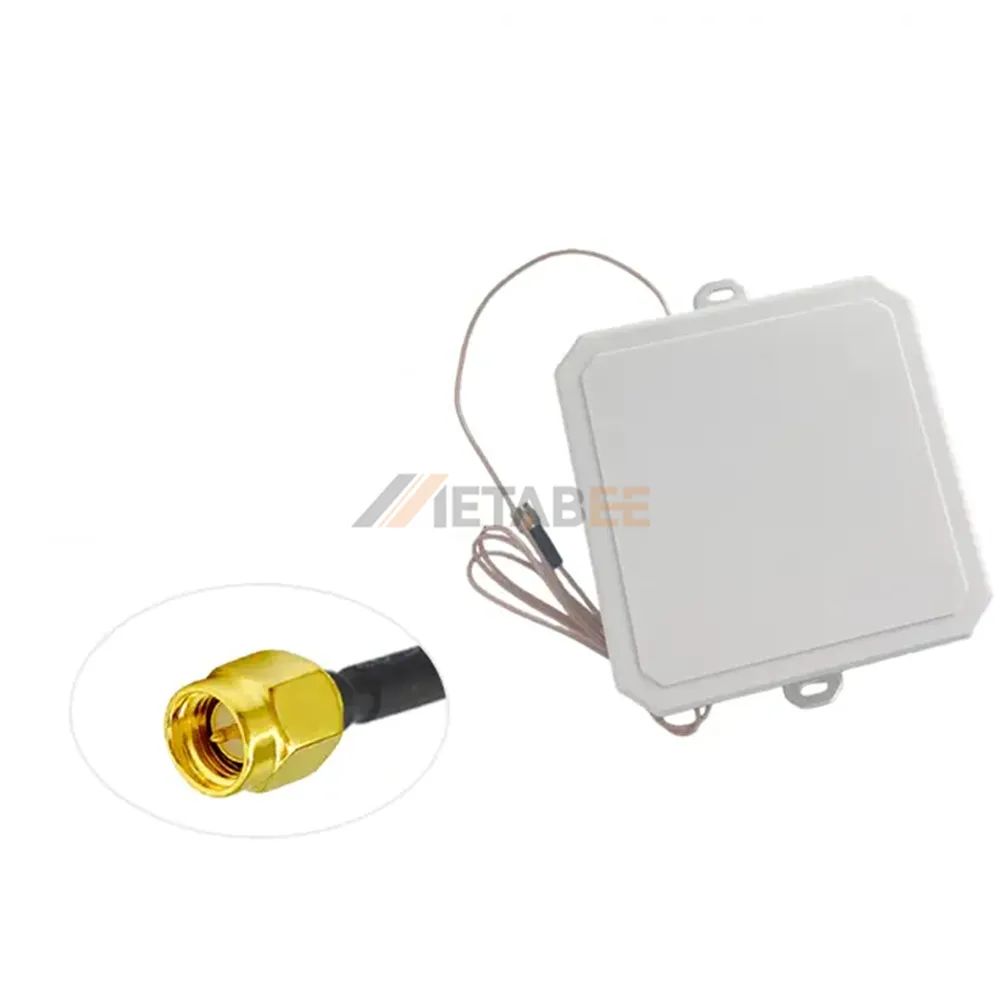

RFID/ISM Band LoRA Panel Antenna with LMR200 Cable, 6dBi, SMA Connector
Introduction:
Maximize your wireless network’s reach with our high-performance RFID/ISM Band LoRA Panel Antenna. Engineered for the 868–930 MHz frequency range, this directional antenna delivers a powerful 6dBi gain, making it the perfect solution for long-range LoRaWAN deployments, IoT networks, and RFID tracking systems. Featuring circular polarization, it ensures reliable signal reception regardless of tag or device orientation.
Built to withstand harsh environments, the antenna features a rugged, IP66-rated ABS radome that protects against heavy dust and water ingress. With integrated DC Grounding lightning protection and wind survivability up to 36.9 m/s, this antenna guarantees uninterrupted uptime. It comes equipped with a low-loss SMA connector with an RG316 cable for seamless, secure installations.
Key Features
- Wide Frequency Range: Optimized for 868–930 MHz RFID, ISM, and LoRa bands.
- High 6dBi Gain: Powerful directional radiation pattern for targeted, long-range connectivity.
- Circular Polarization: Minimizes signal loss caused by device misalignment or rotation.
- All-Weather Durability: IP66-rated waterproof ABS housing handles temperatures from -40°C to 85°C.
- Lightning & Wind Protection: Features DC Grounding and survives wind speeds up to 36.9 m/s.
- Plug-and-Play Design: Standard SMA connector with a high-quality RG316 cable for easy setup.
General Information:
| Product No.: | YC-KS50067 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Connector | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 130X130X20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 868 ~930 MHz | |
| Gain: | 6dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Circular | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this RFID/ISM Band LoRA Panel Antenna with LMR200 Cable:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
