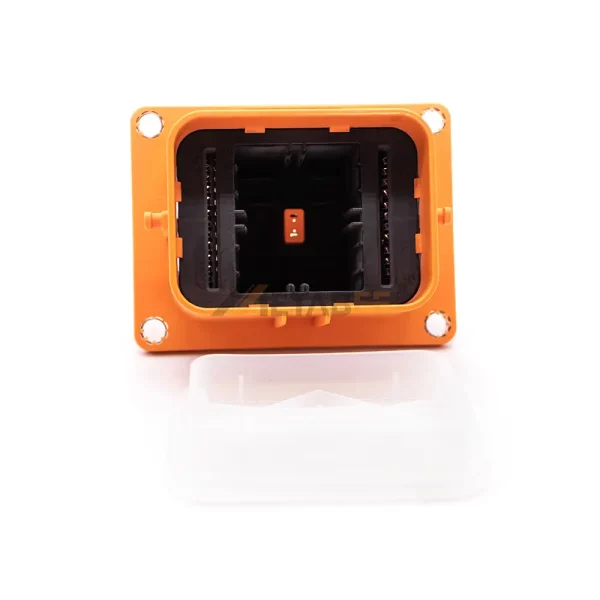

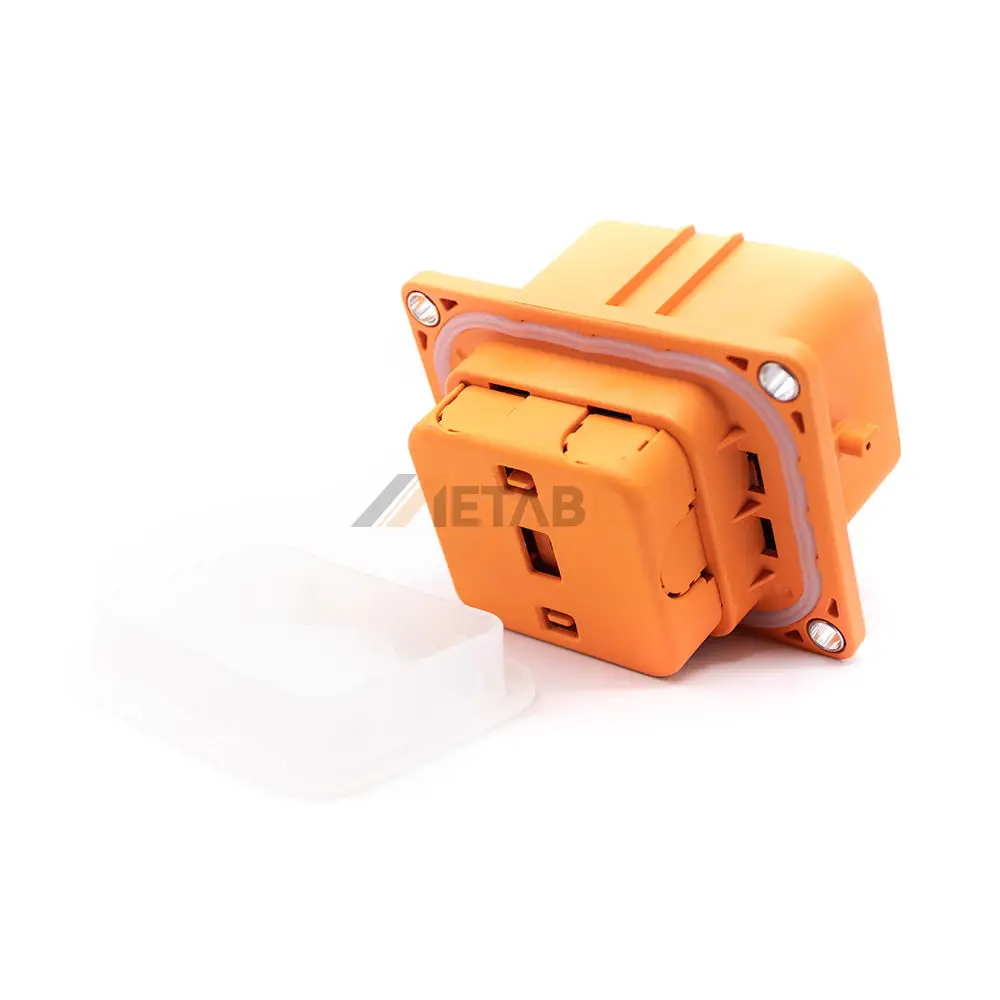

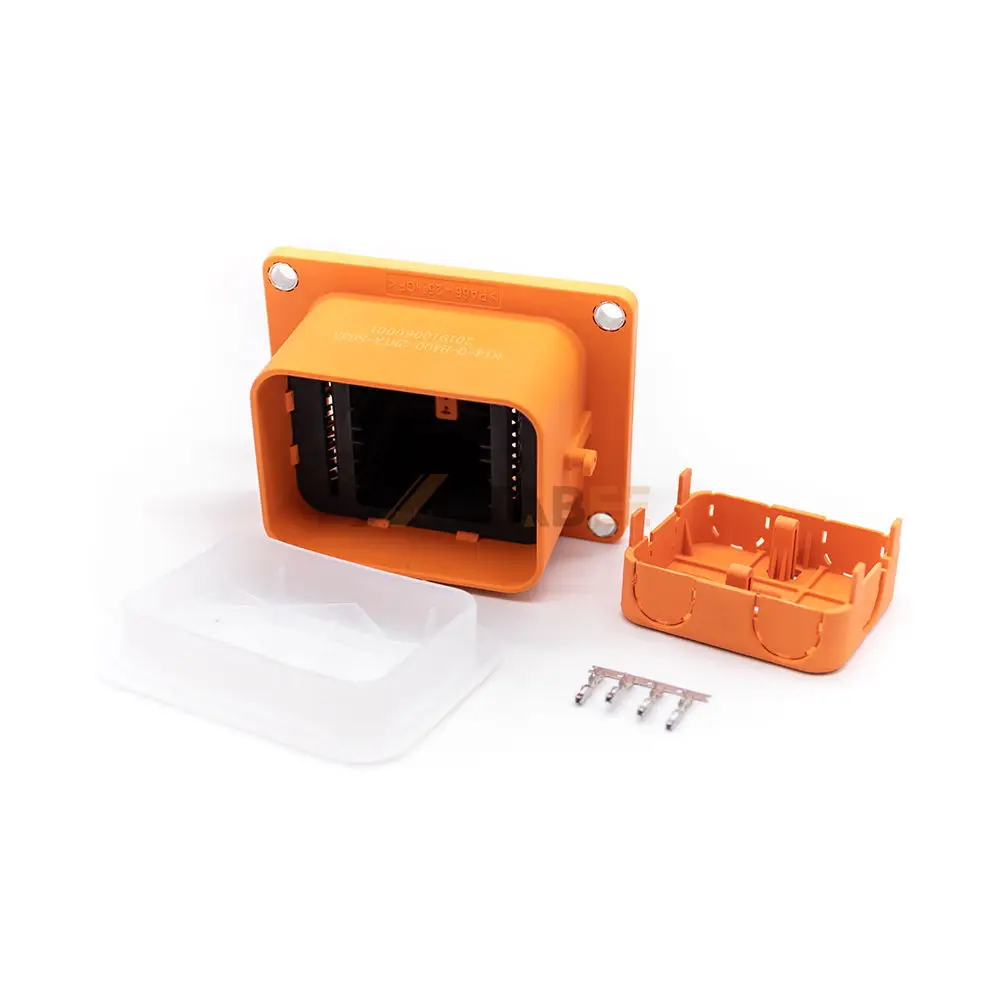

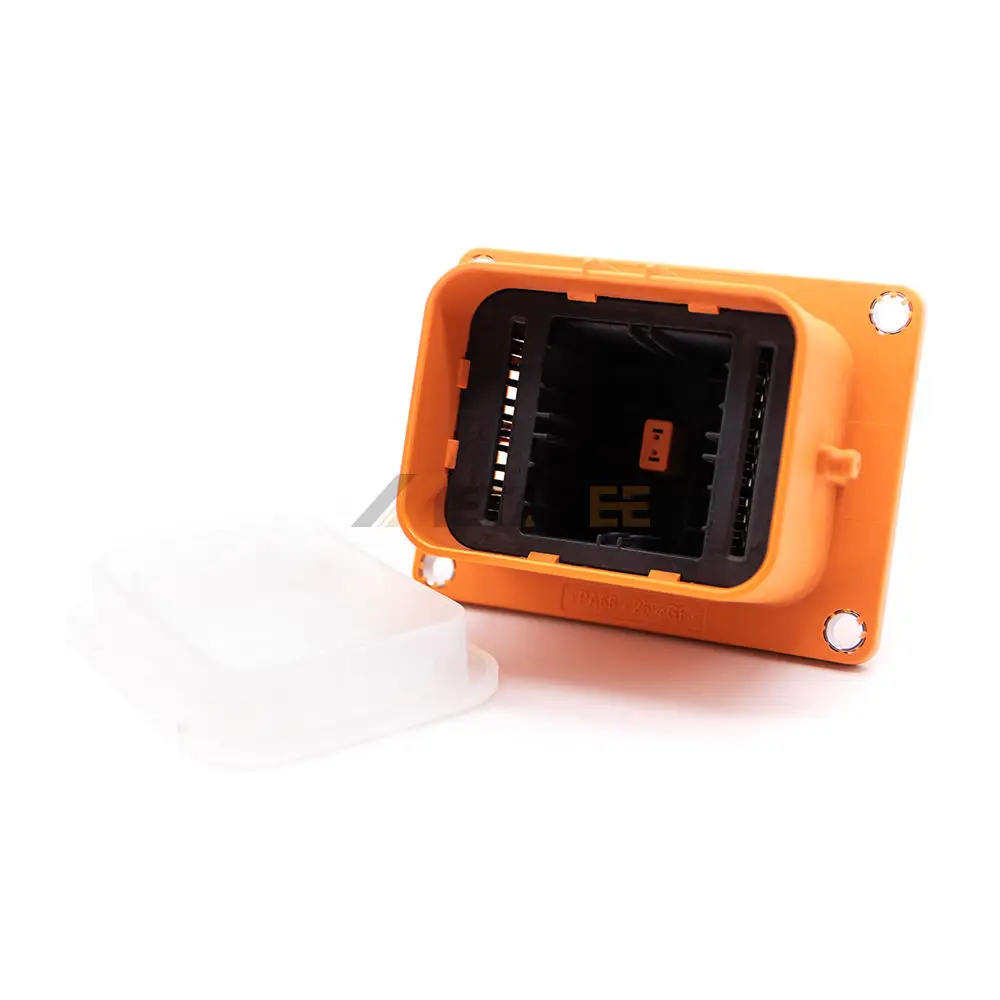

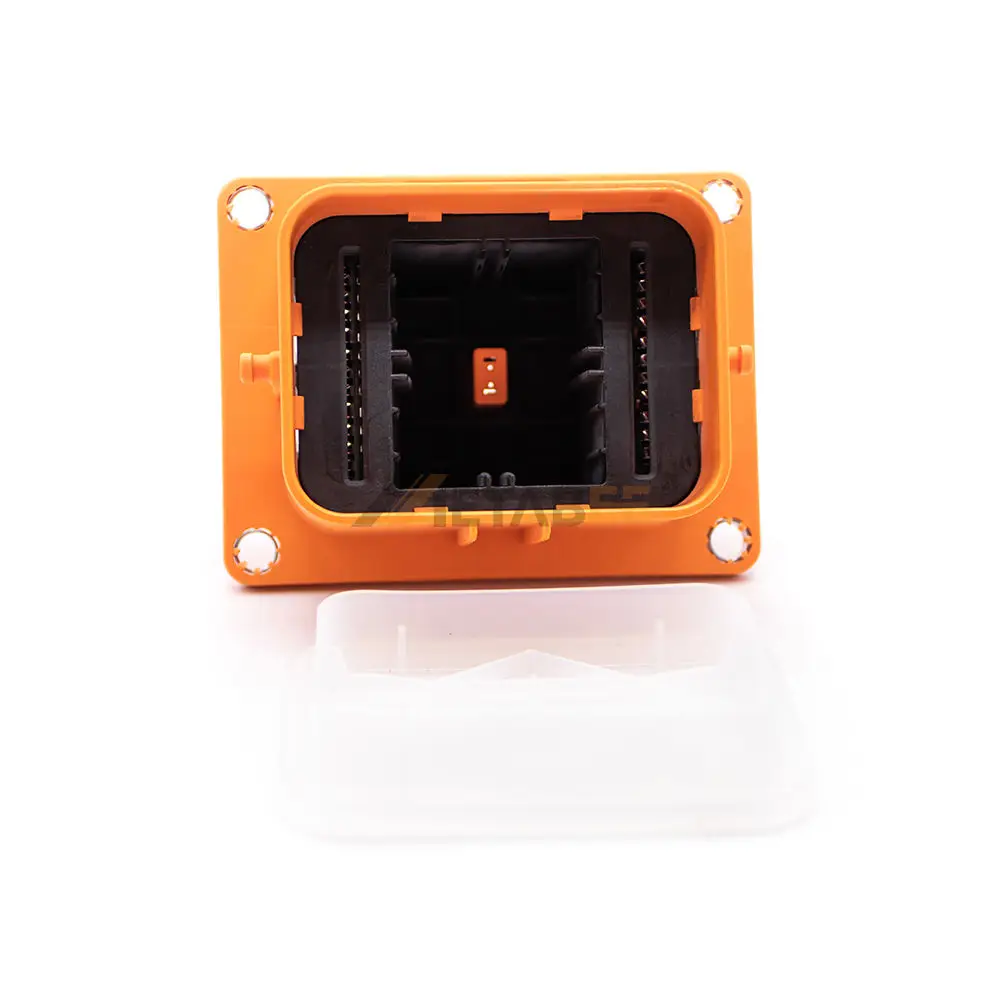

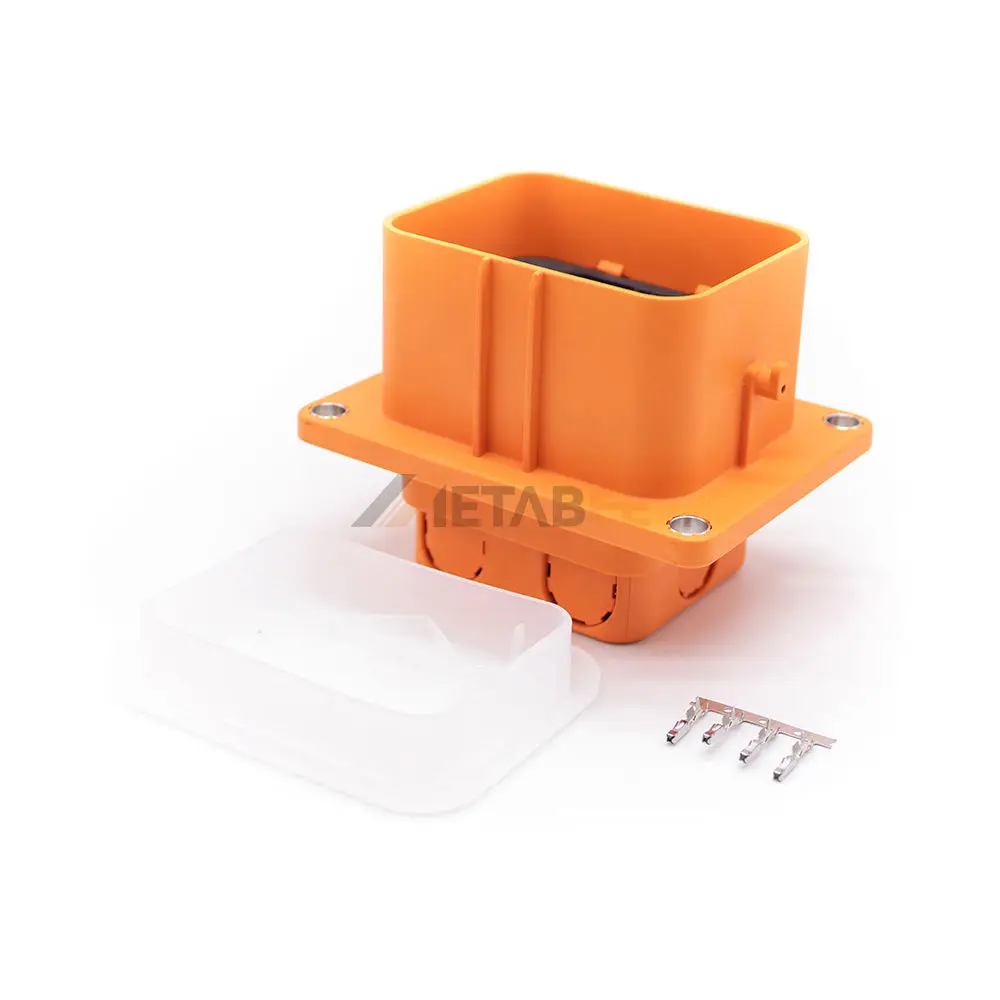

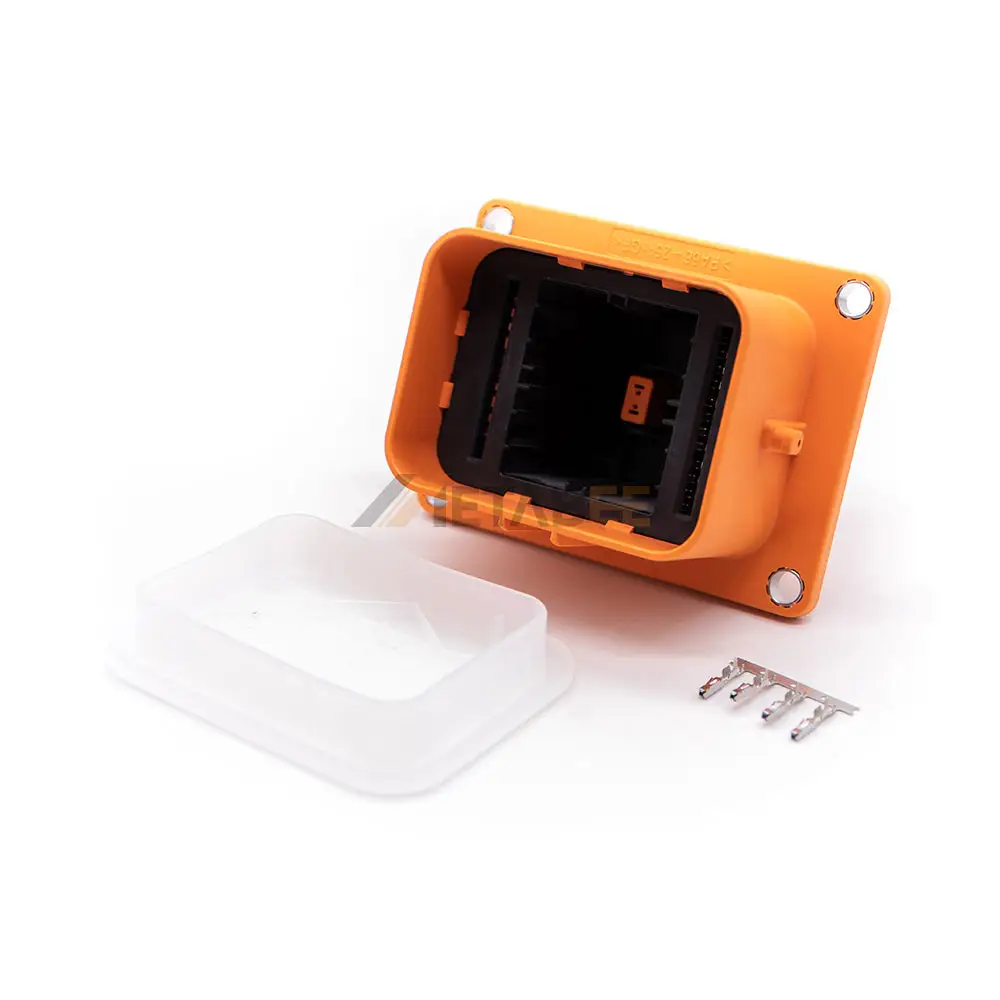

Mini Manual Service Disconnect MSD Connector for Electric Vehicles, 2 Pin Socket, N Key, 400A, Shield
Introduction
This mini manual service disconnect (MSD) Connector is an essential high-voltage interlock component designed for electric vehicles. Engineered with an N key for secure mating, it ensures correct orientation and prevents mismating. The connector features a robust nylon housing, meeting the UL94V-0 flammability standard, and offers an IP67 rating for superior protection against dust and water ingress. Its panel mount design facilitates straightforward and secure installation in vehicle systems.
The connector is built for high-performance electrical demands, capable of handling up to 400A and a rated voltage of 700VDC. The silver-plated copper alloy contacts provide excellent conductivity and corrosion resistance, while the crimp termination ensures reliable, high-strength connections. The inclusion of a shielding shell is critical for protecting against Electromagnetic Interference (EMI), ensuring signal integrity in the sensitive electronic environment of an EV.
Key Features:
- High Current & Voltage: Rated for 400A and 700VDC.
- Reliable Safety: N Keying prevents incorrect mating.
- Robust Protection: IP67 rated for dust and water resistance.
- EMI Shielding: Integrated shield for electromagnetic compatibility.
- Durable Construction: Nylon housing with UL94V-0 flame rating.
- Wide Operating Temperature: Stable performance from -40°C to +125°C.
Main Specifications:
General Information:
| Part No.: | NI4-0-H400-2NYA-S03A, NI4-0-H400-2NYA-S03B | |
| Product Series: | Mini MSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Connector Keying: | N Key | |
| Number of Positions: | 2 Pin | |
| Contact Termination: | Crimp | |
| Mount Method: | Panel Mount | |
| Mount Feature: | Front Mount, Rear Mount | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Nylon | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 690VDC / 700VDC | |
| Rated Current: | 630A | |
| Electrical Protection: | IP2XB |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |

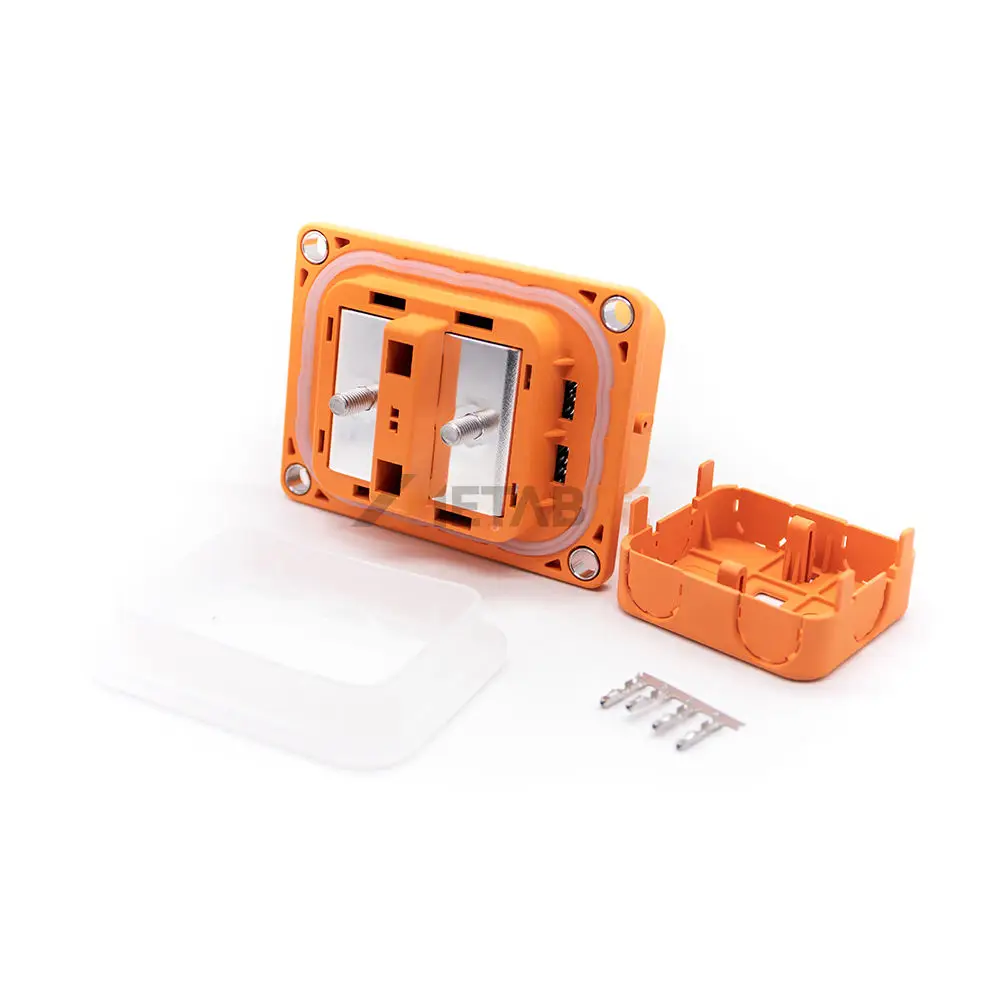

MSD Connector Structure
Applications of this Mini Manual Service Disconnect MSD Connector:
Manual Service Disconnect (MSD) connectors are critical safety devices used to isolate high-voltage systems, primarily to protect technicians from electrocution during maintenance, service, or emergency response.
Here are some main applications:
- Electric Vehicle (EV) Battery Packs;
- Plug-in Hybrid Electric Vehicles (PHEVs)
- Energy Storage Systems / Grid Storage.
- High-Voltage Power Distribution Units (PDUs)
- Automotive Maintenance & Emergency Response.
- Industrial Electric Machinery.
- Renewable Energy Systems.
- Offshore/Marine Applications.
- Electric Rail/Locomotive Systems.
- Medical & Diagnostic Equipment (High-Voltage Modules).
