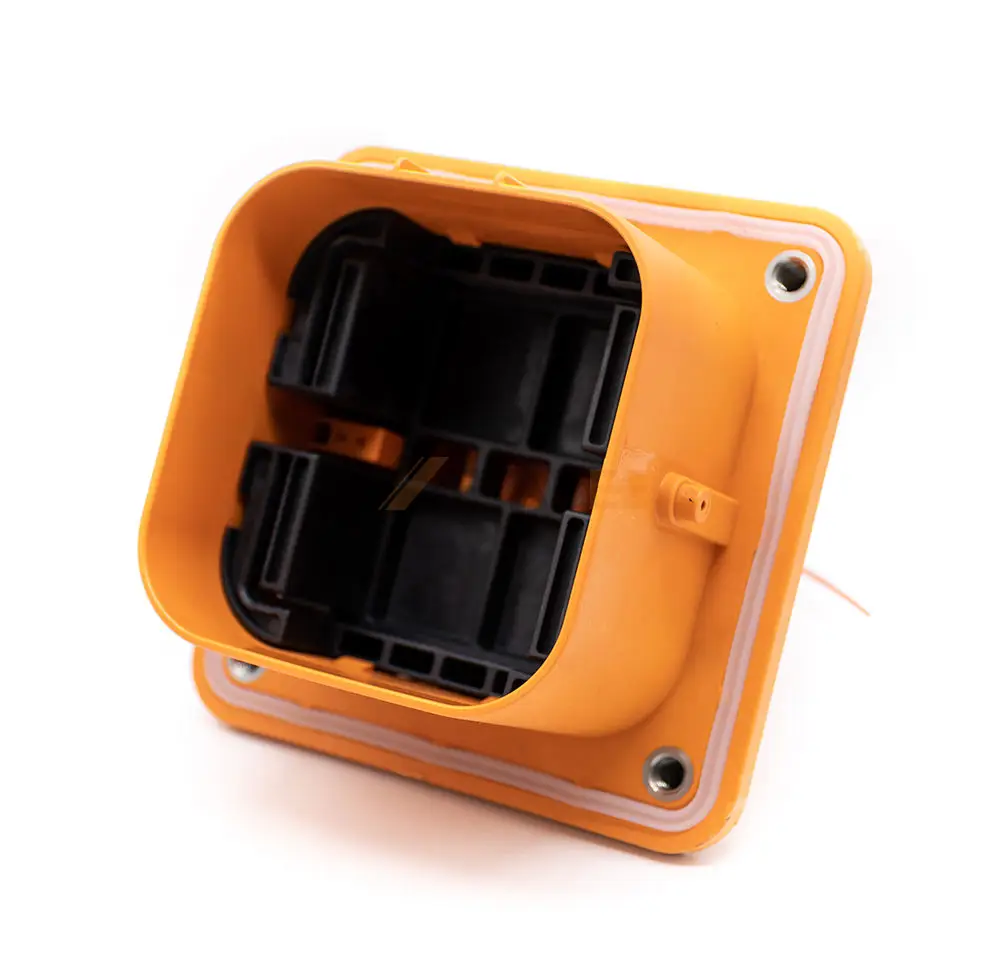

Manual Service Disconnect MSD Connector for EV, 2 Pin Socket, N Key, 630A, Shield
Introduction
This high-performance MSD connector is designed for electric vehicle power distribution systems that require maximum safety, high current capacity, and stable signal integrity. Designed with an N-key orientation and a 2-pin configuration, it ensures secure mating and reliable polarity control in demanding EV architectures. The connector features a robust shielded structure to minimise electromagnetic interference and maintain system stability in high-power environments.
Built with a durable nylon housing, copper-alloy contacts, and a silver-plated surface finish, this MSD connector delivers excellent conductivity, low contact resistance, and long-term reliability. Its crimp-termination design and panel-mount structure enable fast, stable installation in battery packs, power control units, and energy modules. With a rated current of 630A and voltage up to 800V, it provides the high-power handling required for next-generation electric vehicles.
Engineered for harsh operating conditions, the connector supports an extended temperature range from –40°C to +125°C and meets IP67 waterproof protection. Its UL94V-0 flame-retardant rating ensures enhanced safety and fire resistance in mission-critical EV systems, making it ideal for high-voltage disconnect applications.
Key Features:
- High-power 630A, 800V rating for EV battery and HV system applications.
- N-key orientation ensures foolproof mating and secure polarity alignment.
- Shielded design for EMI suppression and stable high-voltage performance.
- Nylon housing + silver-plated copper-alloy contacts for durability and conductivity.
- IP67 & UL94V-0 certified for waterproofing and flame resistance.
- Crimp termination & panel-mount design for secure, reliable installation.
Main Specifications:
General Information:
| Part No.: | NI4-1-H630-2NYA-S04A, NI4-1-H630-2NYA-S04B | |
| Product Series: | MSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Connector Keying: | N Key | |
| Number of Positions: | 2 Pin | |
| Contact Termination: | Crimp | |
| Mount Method: | Panel Mount | |
| Mount Feature: | Front Mount, Rear Mount | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Nylon | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 800V | |
| Rated Current: | 630A | |
| Electrical Protection: | IP2XB |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |

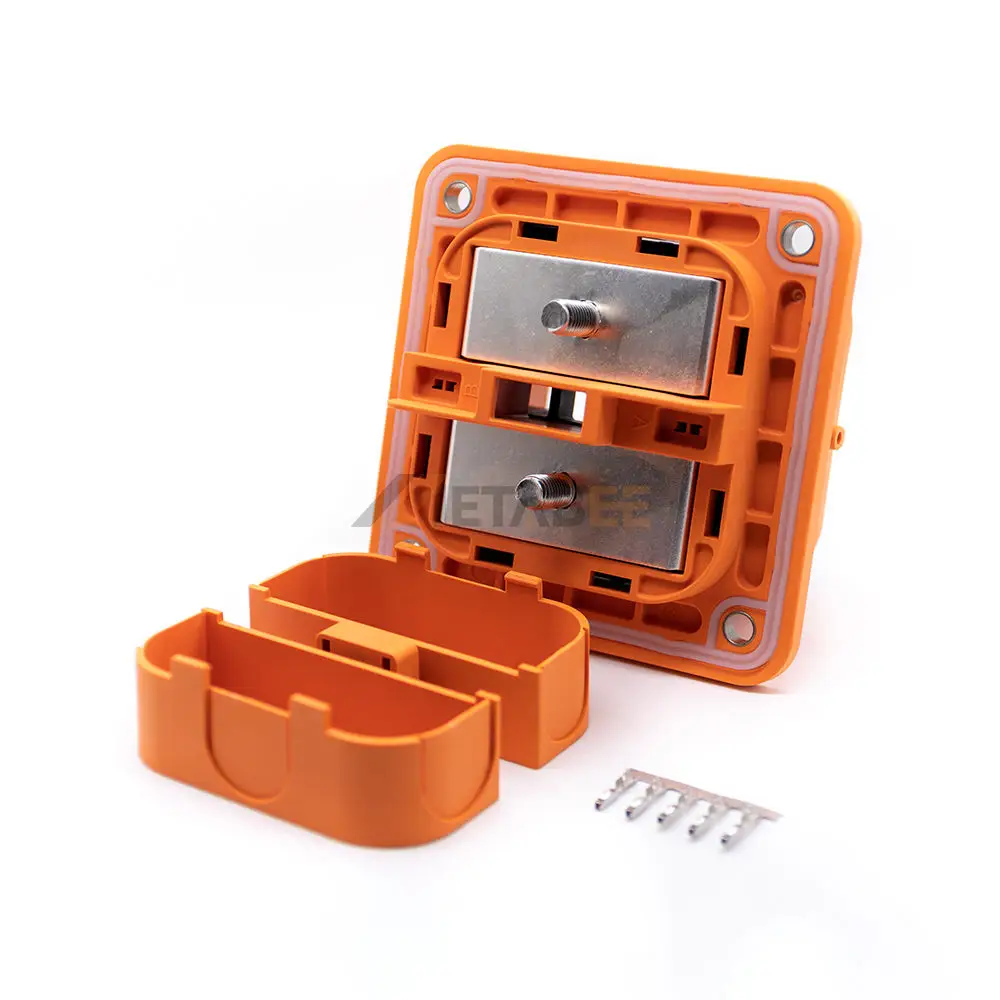

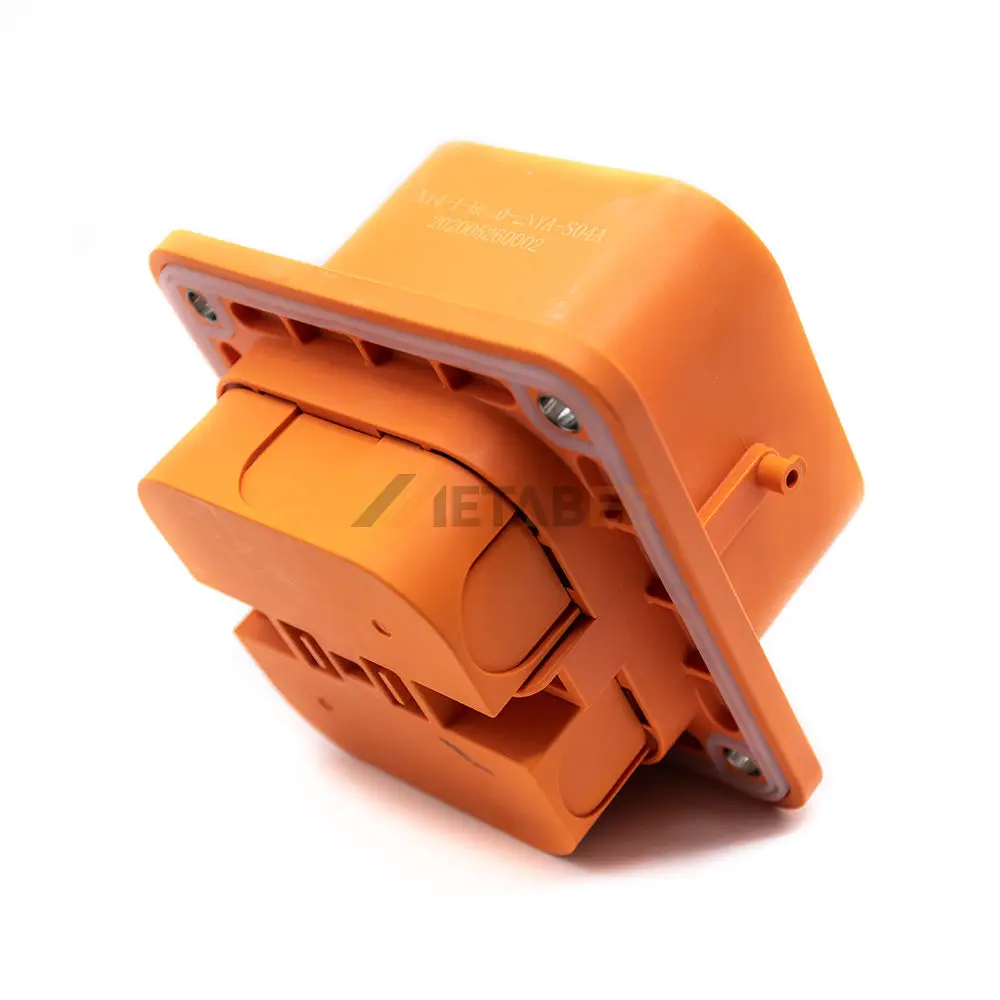

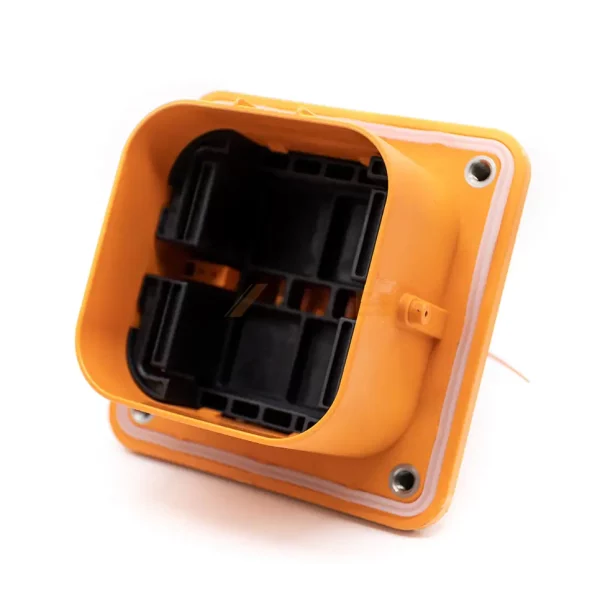

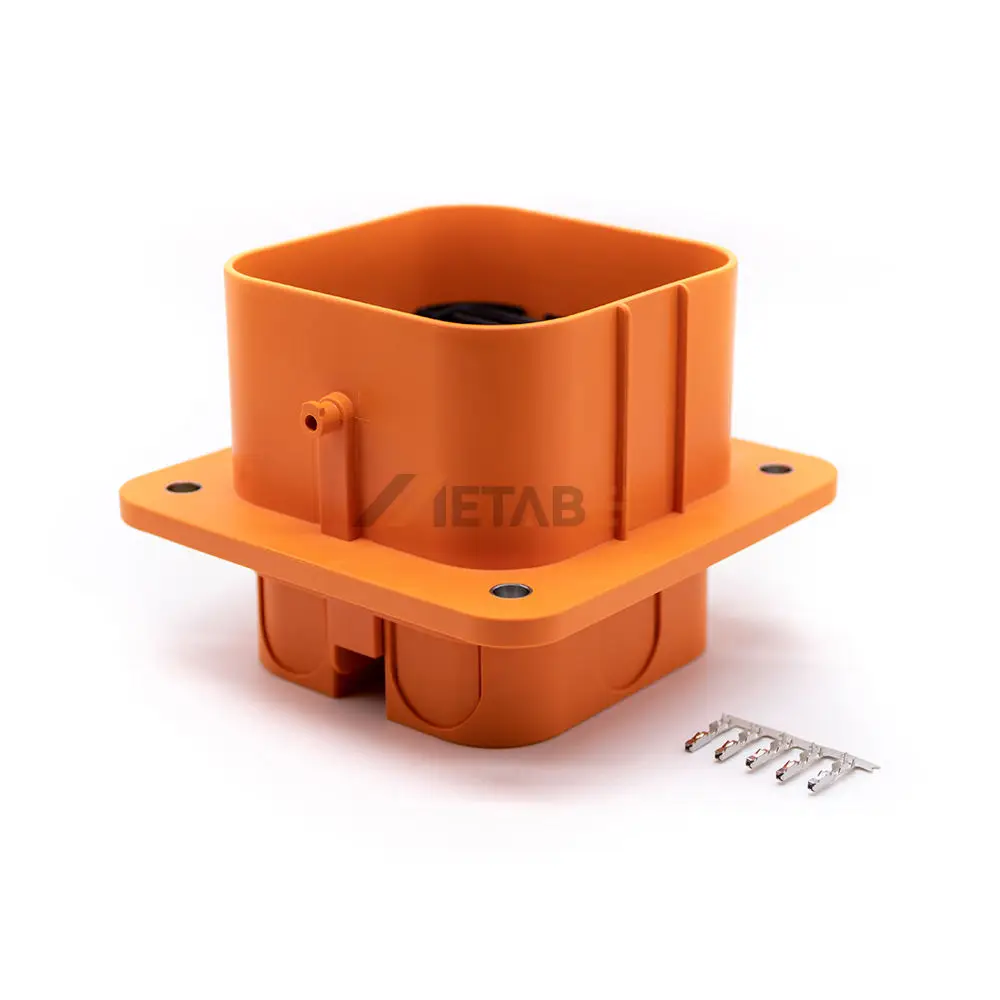

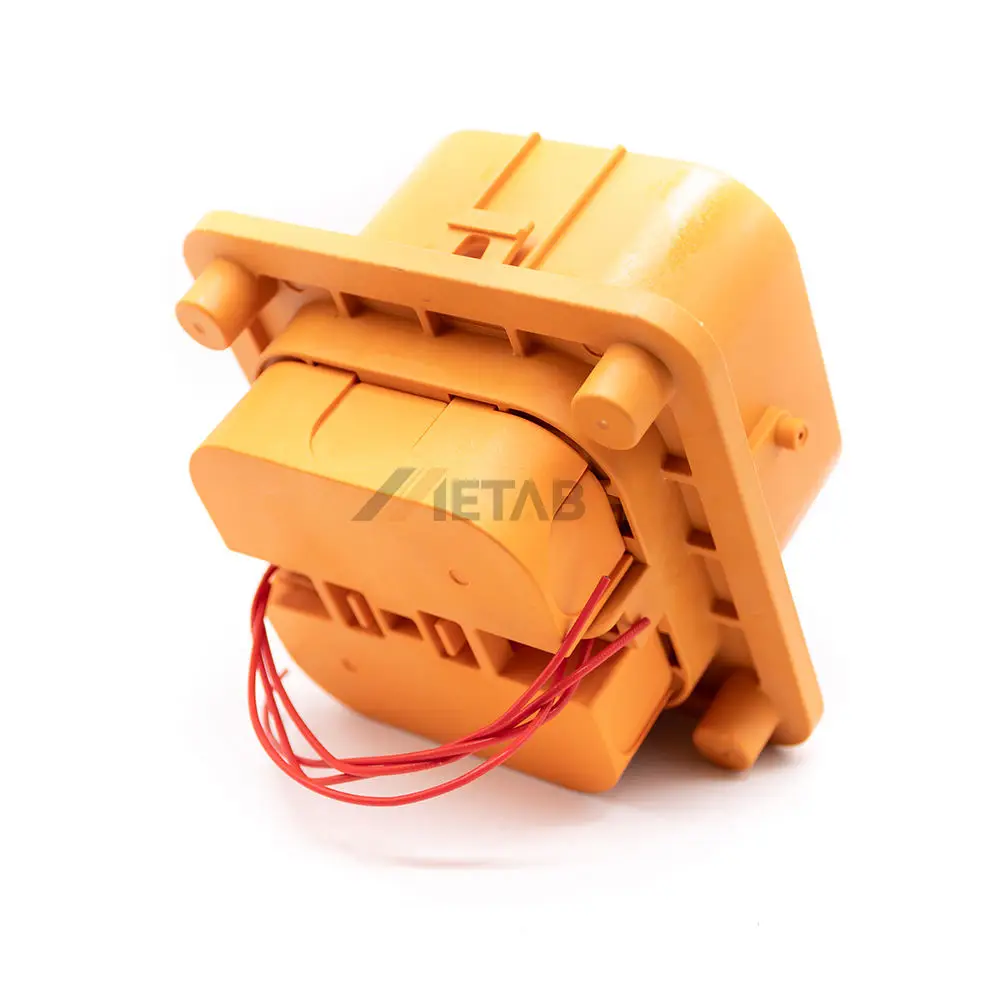

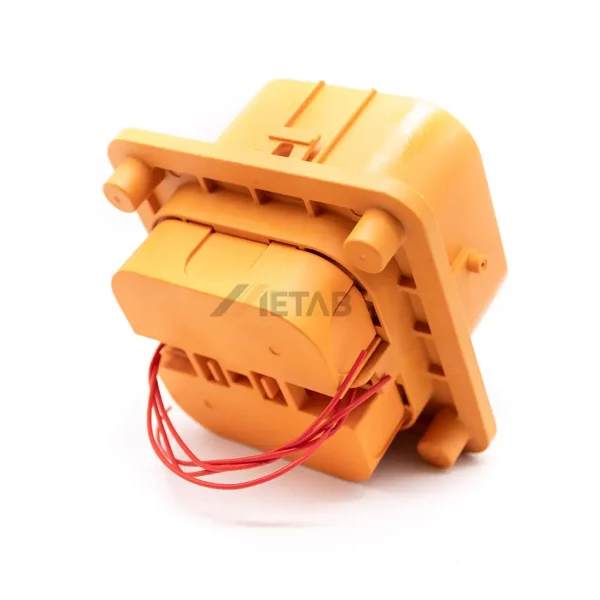

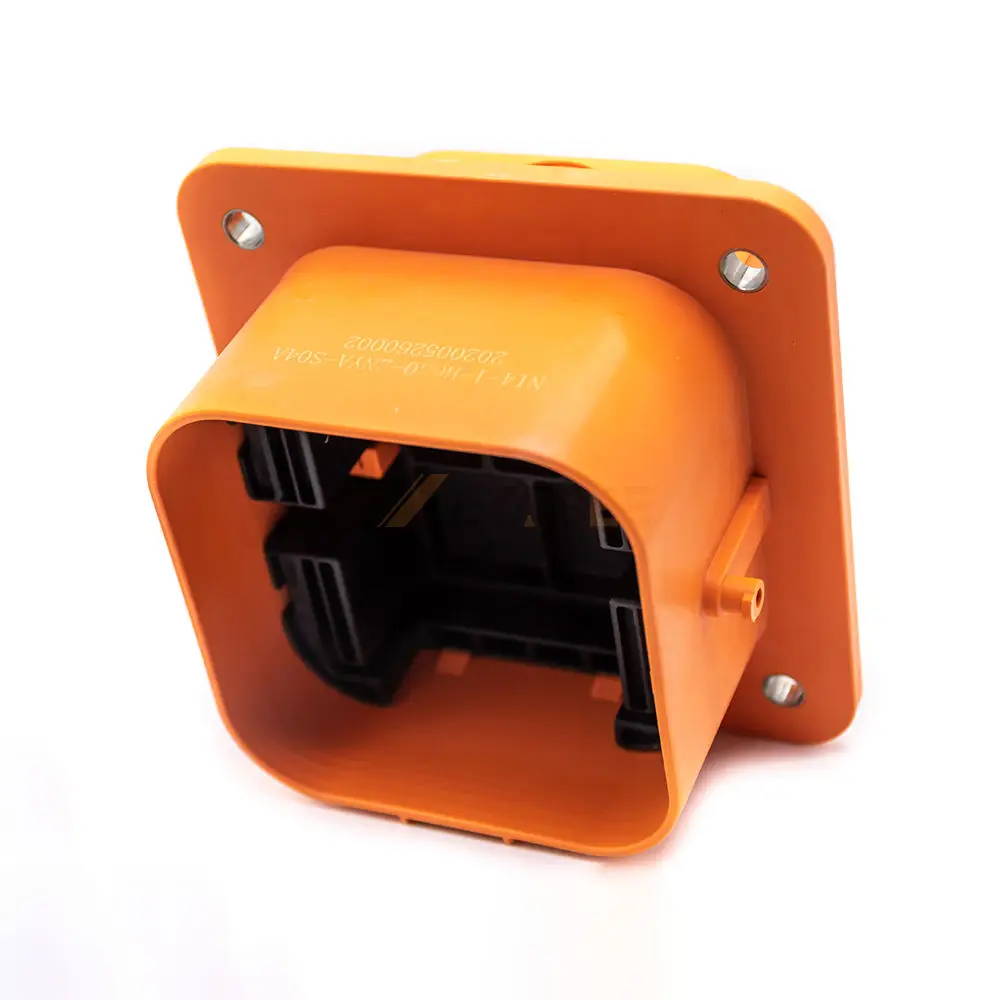

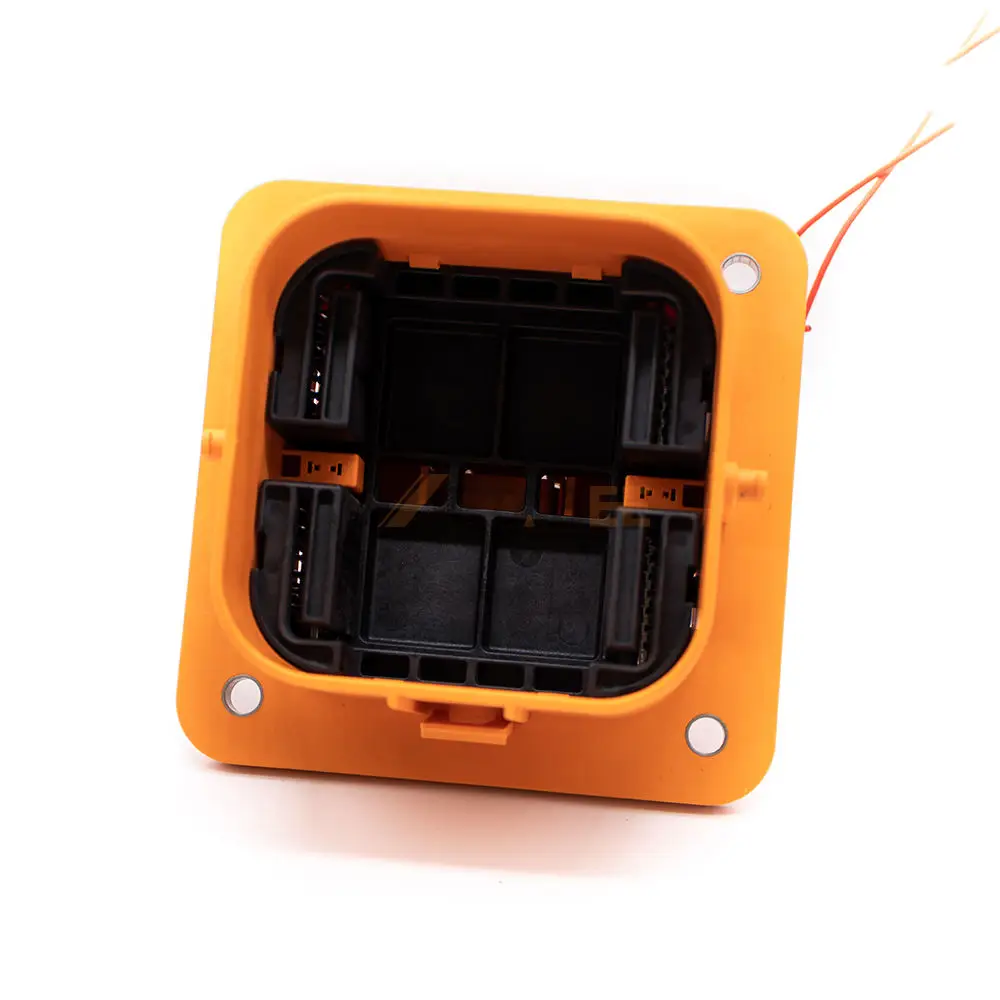

MSD Connector Structure
Applications of this Manual Service Disconnect MSD Connector for EV:
Manual Service Disconnect (MSD) connectors are critical safety devices used to isolate high-voltage systems, primarily to protect technicians from electrocution during maintenance, service, or emergency response.
Here are some main applications:
- Electric Vehicle (EV) Battery Packs;
- Plug-in Hybrid Electric Vehicles (PHEVs)
- Energy Storage Systems / Grid Storage.
- High-Voltage Power Distribution Units (PDUs)
- Automotive Maintenance & Emergency Response.
- Industrial Electric Machinery.
- Renewable Energy Systems.
- Offshore/Marine Applications.
- Electric Rail/Locomotive Systems.
- Medical & Diagnostic Equipment (High-Voltage Modules).
