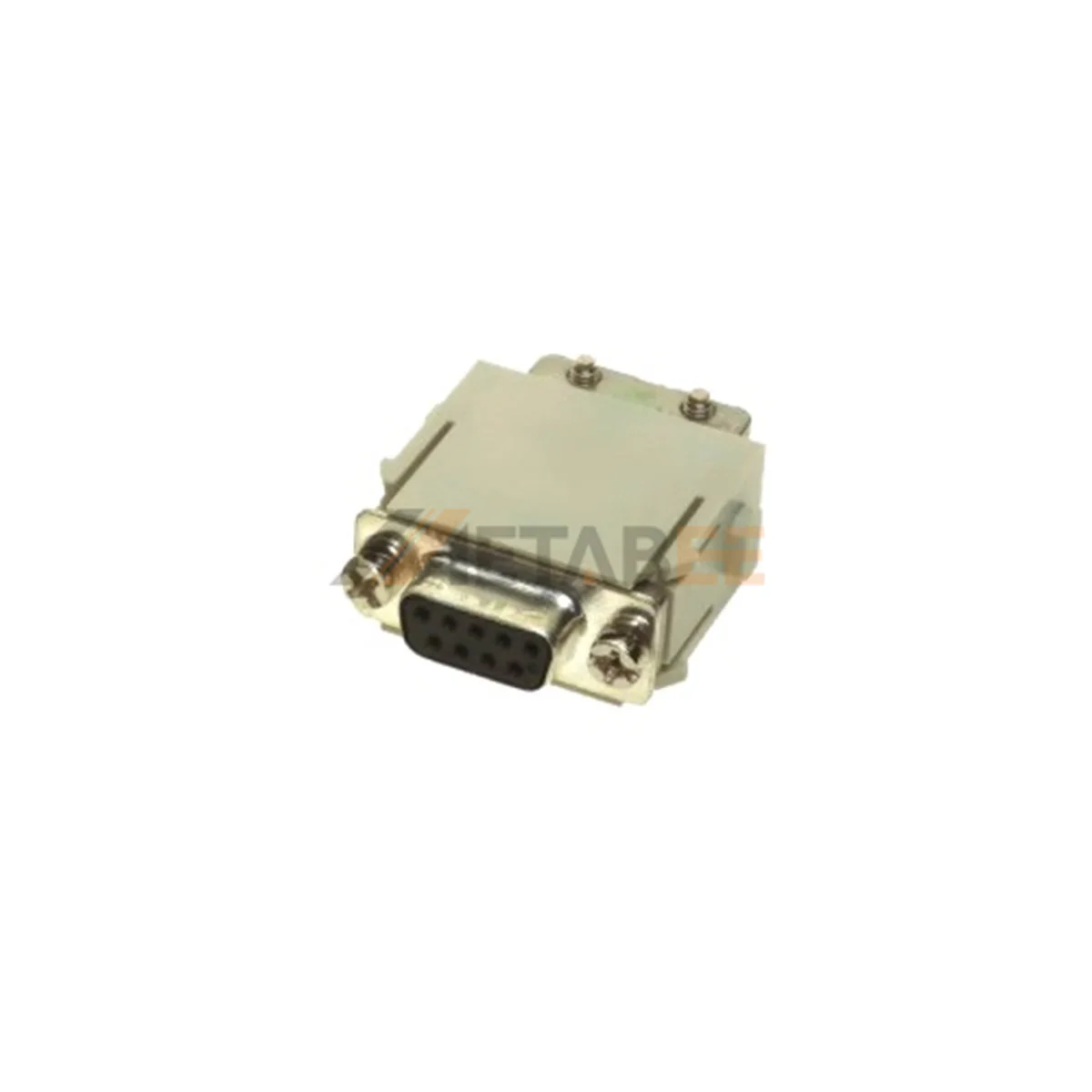

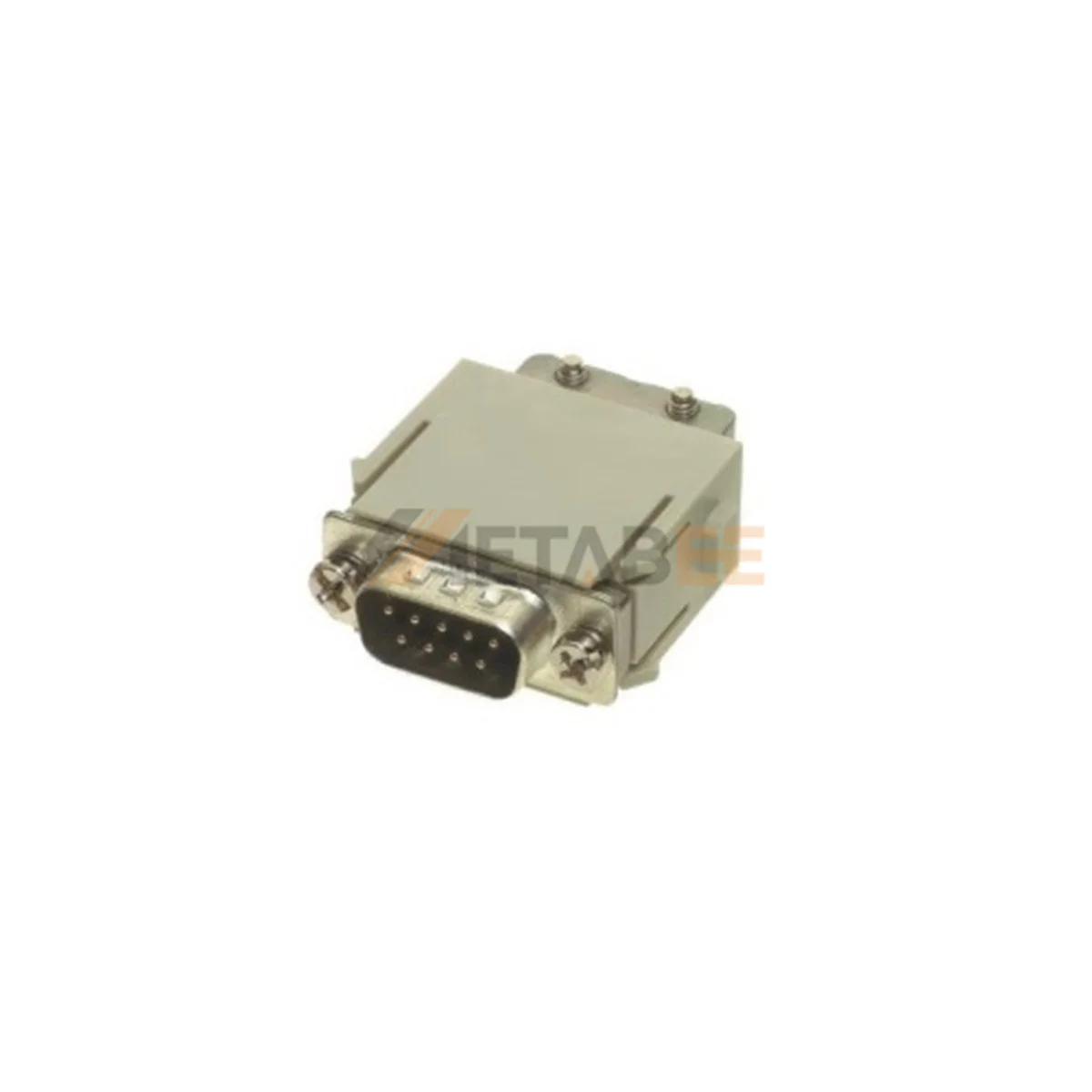

HM-D-Sub HM Series D-SUB 9 Pin Heavy Duty Connector Module Inserts, Crimp Terminal
Introduction:
The HM-D-Sub modular insert combines a standard D-Sub 9-pin interface with efficient crimp technology. It allows you to build a protected, high-reliability data interface within a heavy-duty connector by mixing it with other HM modules, making it ideal for mass production and high-vibration environments.
To meet different production needs, inserts offer various termination methods for their conductive terminals. Common methods include screw terminal, crimp terminal, cage-clamp terminal, quick-lock terminal, and axial screw terminal.
Key Feature:
- Crimp Terminal: The crimp terminal is a fast and robust solderless technology, characterized by its high mechanical strength and low contact resistance at the joint.
- D-Sub 9-Pin Data Interface: Features the industry-standard D-Sub 9-pin (male or female) interface, designed specifically for serial communication applications like RS485 and RS232, ensuring broad device compatibility and stable data transmission.
- Modular Design: Can be freely combined with signal, data, and other modules in the same frame for highly customized connection solutions.
- Wide Temperature Range: Operates flawlessly from -40°C to +125°C, guaranteeing consistent performance in demanding industrial environments with extreme heat or cold.
Main Specifications:
General Information:
| Product No.: | HM-D-Sub-M, HM-D-Sub-F | |
| Category: | Heavy-Duty Connector Inserts and Modules | |
| Connector Product Type: | Modules | |
| Connector Series: | HM Series | |
| Contact Gender: | Male/Female | |
| Number of Contacts: | 9 | |
| Termination methods: | Crimp Terminal | |
| Suitable shell size: | N/A | |
| Wire Gauge: | 0.09-0.82 mm² | |
| AWG: | 28-18 |
Materials and Plating:
| Insert Material: | Polycarbonate | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plating |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 50V AC | |
| Contact Resistance: | ≤ 1 mΩ |
Environmental Performance:
| Temperature Range: | -40℃ to +125℃ | |
| Pollution degree: | 3 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connectors
8 Series of Heavy-Duty Connector Inserts
Heavy-duty connector insert structure diagram (example)
Type of Example Image: HA-016-M/F
