Heavy Duty Connector HM Series 4-Pin Male/Female Q-Coax Contacts Module Inserts, Shielding, 50V/10A, Crimp Terminal
Introduction:
The HM series Quintax single-pin shielded module is a high-performance coaxial module designed for transmitting high-speed, sensitive signals. It utilizes Quintax coaxial contacts to provide ultimate EMI protection via a central signal pin and a 360° shield. This module can be freely combined with other HM modules, making it the ideal solution for transmitting HD video, high-speed bus signals (like Gigabit Ethernet), or precision sensor data.
To meet different production needs, inserts offer various termination methods for their conductive terminals. Common methods include screw terminal, crimp terminal, cage-clamp terminal, quick-lock terminal, and axial screw terminal.
Key Feature:
- Crimp Terminal: The crimp terminal is a fast and robust solderless technology, characterized by its high mechanical strength and low contact resistance at the joint.
- Gold-Plated Contacts: Contact surfaces are gold-plated, providing extremely low contact resistance and excellent corrosion resistance to ensure long-term stable signal transmission over multiple mating cycles.
- Modular Design: Can be freely combined with signal, data, and other modules in the same frame for highly customized connection solutions.
- 50V/10A Rating: Safely carries special shielded power or high-demand signal loads.
Main Specifications:
General Information:

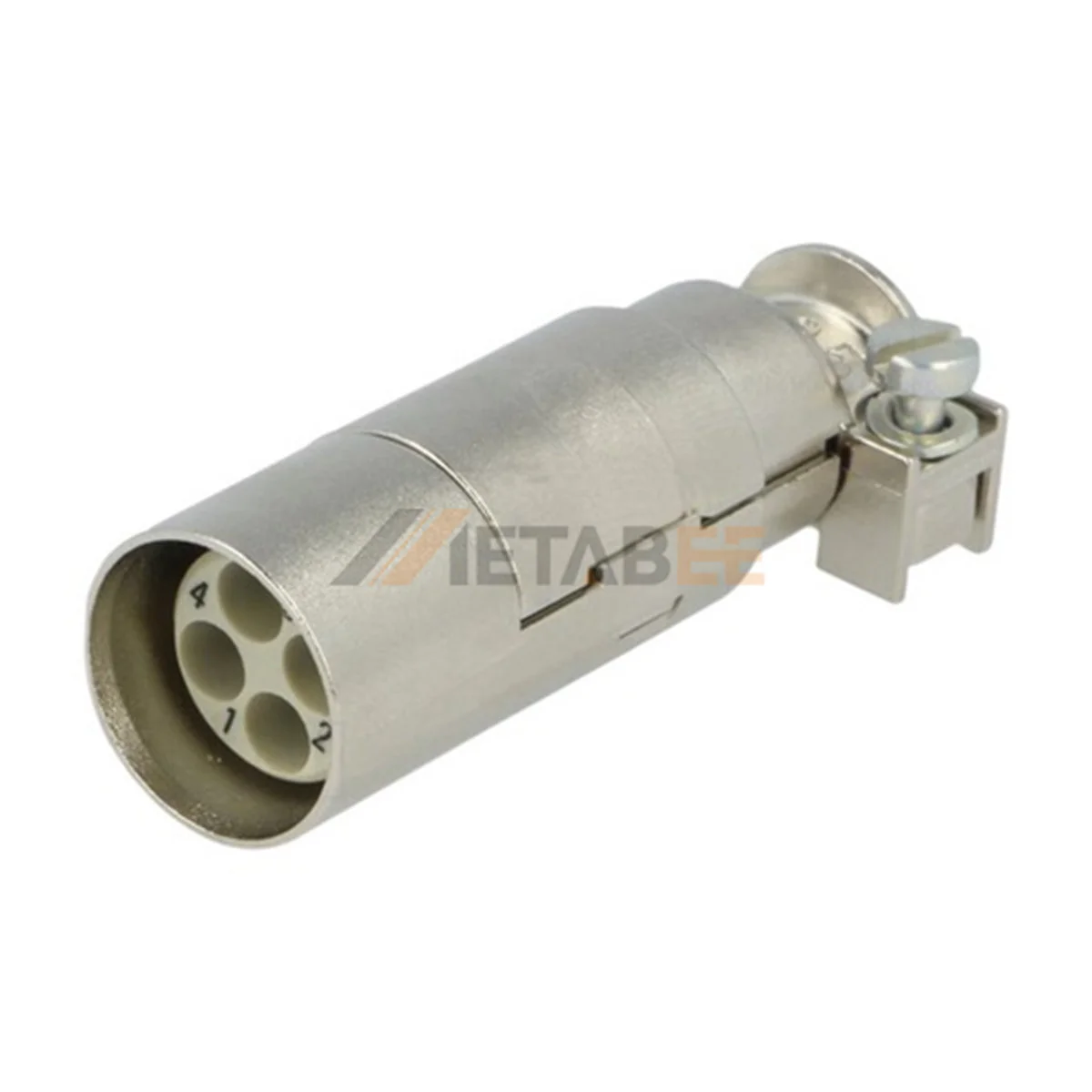

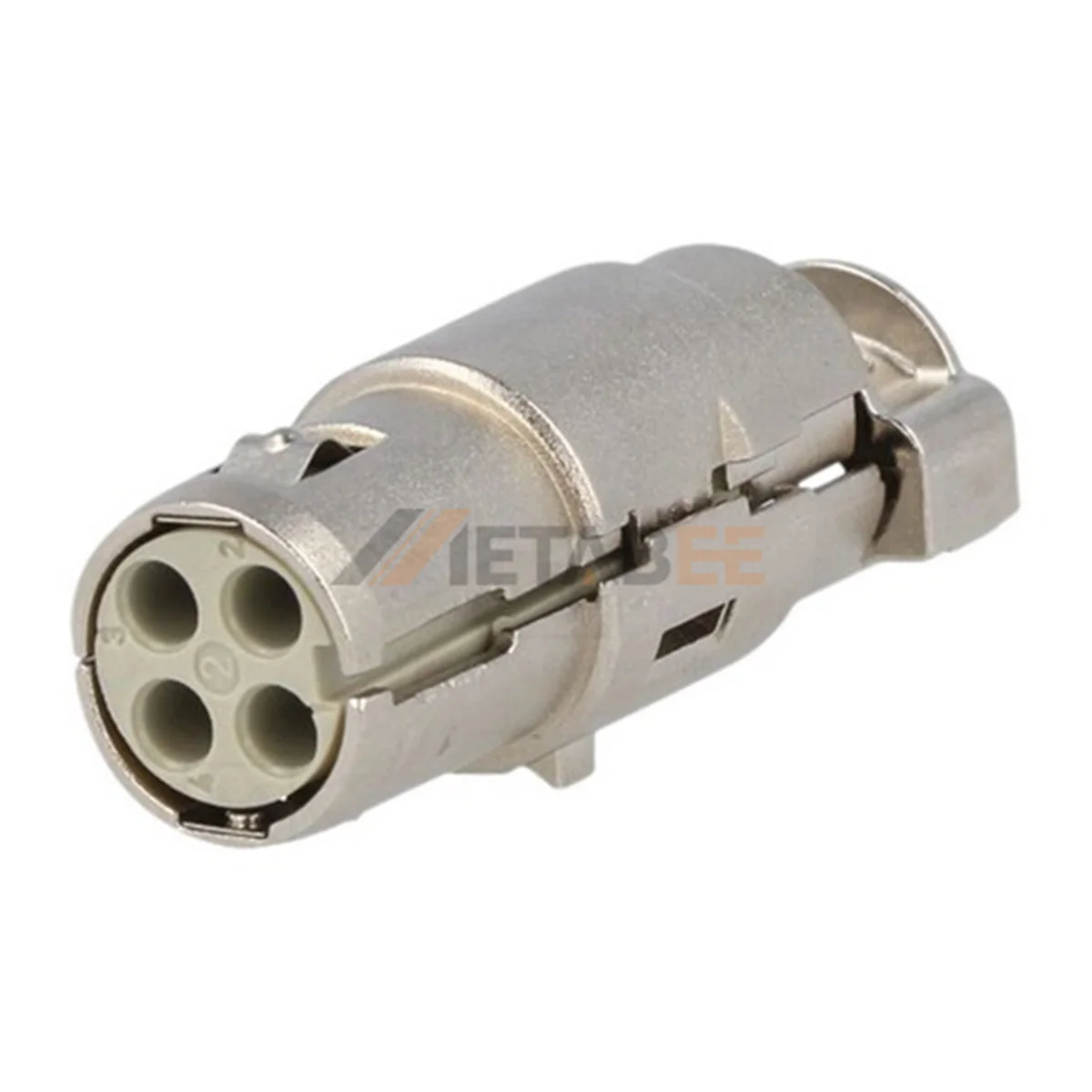

| Product No.: | QUINTAX-004-M, QUINTAX-004-F | |
| Category: | Heavy-Duty Connector Inserts and Modules | |
| Connector Product Type: | Modules | |
| Connector Series: | HM Series | |
| Contact Gender: | Male/Female | |
| Number of Contacts: | 4+Shielded | |
| Termination methods: | Crimp Terminal | |
| Suitable shell size: | N/A | |
| Wire Gauge: | 0.14-2.5 mm² | |
| AWG: | 26-14 |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating |
Electrical Performance:
| Rated Current: | 10A | |
| Rated Voltage: | 50V AC | |
| Contact Resistance: | ≤ 3 mΩ |
Environmental Performance:
| Temperature Range: | -40℃ to +85℃ | |
| Pollution degree: | 3 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connectors
8 Series of Heavy-Duty Connector Inserts
Heavy-duty connector insert structure diagram (example)
Type of Example Image: HA-016-M/F
