Introduction:

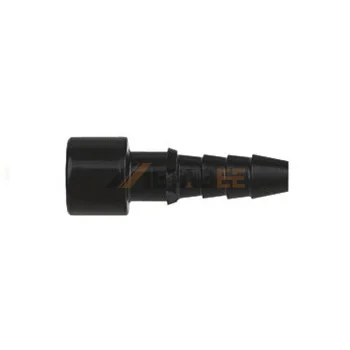

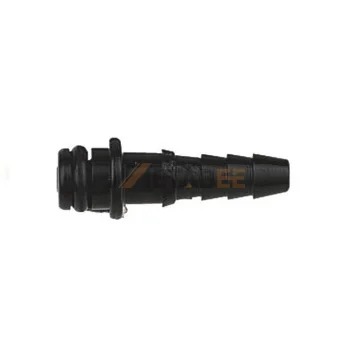

The HM series male/female pneumatic pins are the core contact elements within the HM modular system, designed specifically for transmitting compressed air. They are installed into the HM pneumatic modules, with one end connecting to a pneumatic tube and the other forming a reliable, sealed pneumatic channel when the connectors are mated. These precision pins are essential components for enabling stable and dependable pneumatic power transmission within a rugged heavy-duty connector.
Key Feature:
- Reliable Airtight Connection: Features high-quality integrated O-rings that create a tight dynamic seal when the male and female pins are mated, effectively preventing air leakage and ensuring stable system pressure.
- Convenient Tube Connection: The termination end is typically designed with a barb or push-in fitting, allowing for a quick and secure connection to standard pneumatic tubing (e.g., PU tubes).
- Designed for HM Pneumatic Modules: Engineered with precise dimensions and tolerances to fit perfectly into the cavities of HM series pneumatic modules, ensuring a secure installation and accurate channel alignment.
- Industrial-Grade Protection: Gains IP65 protection within a heavy-duty housing, ideal for harsh industrial environments.
Note: The available sizes of trachea inner diameter are 6.0 mm, 4.0 mm, 3.0 mm, and 1.6 mm.
Main Specifications:
General Information:
| Product No.: | PENU-PA2-6.0M, PENU-PA2-6.0F, PENU-PA3-4.0M, PENU-PA3-4.0F | |
| Category: | Heavy-Duty Connector Inserts and Modules | |
| Connector Product Type: | Pneumatic Pin | |
| Connector Series: | HM Series | |
| Number of Contacts: | N/A |
Materials and Plating:
| Insert Material: | Polycarbonate | |
| Contact Material: | Delrin Acetal | |
| Sealing Material: | Buna-n |
Environmental Performance:
| Temperature Range: | -40℃ to +80℃ | |
| Pollution degree: | 3 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connectors
8 Series of Heavy-Duty Connector Inserts
Heavy-duty connector insert structure diagram (example)
Type of Example Image: HA-016-M/F
