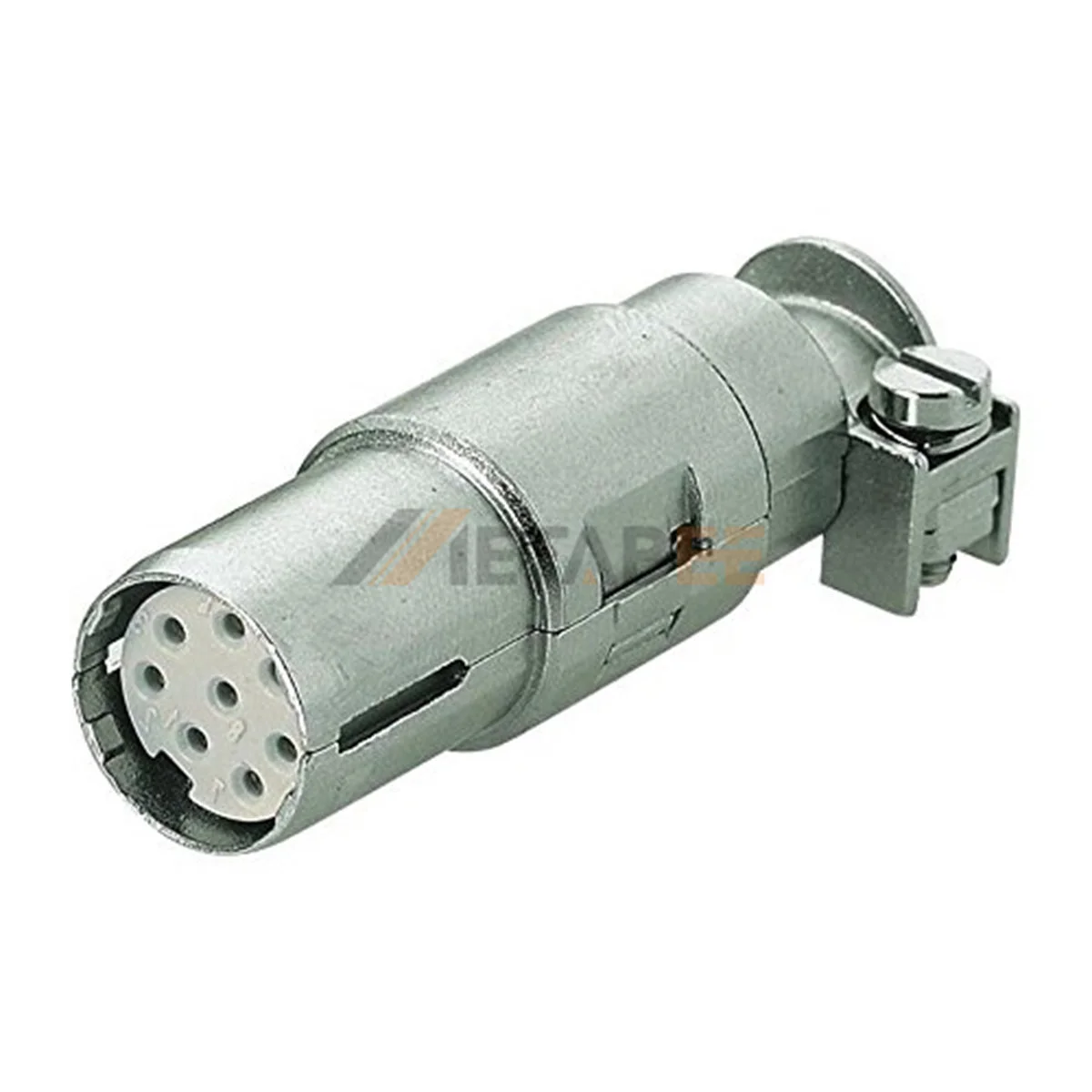

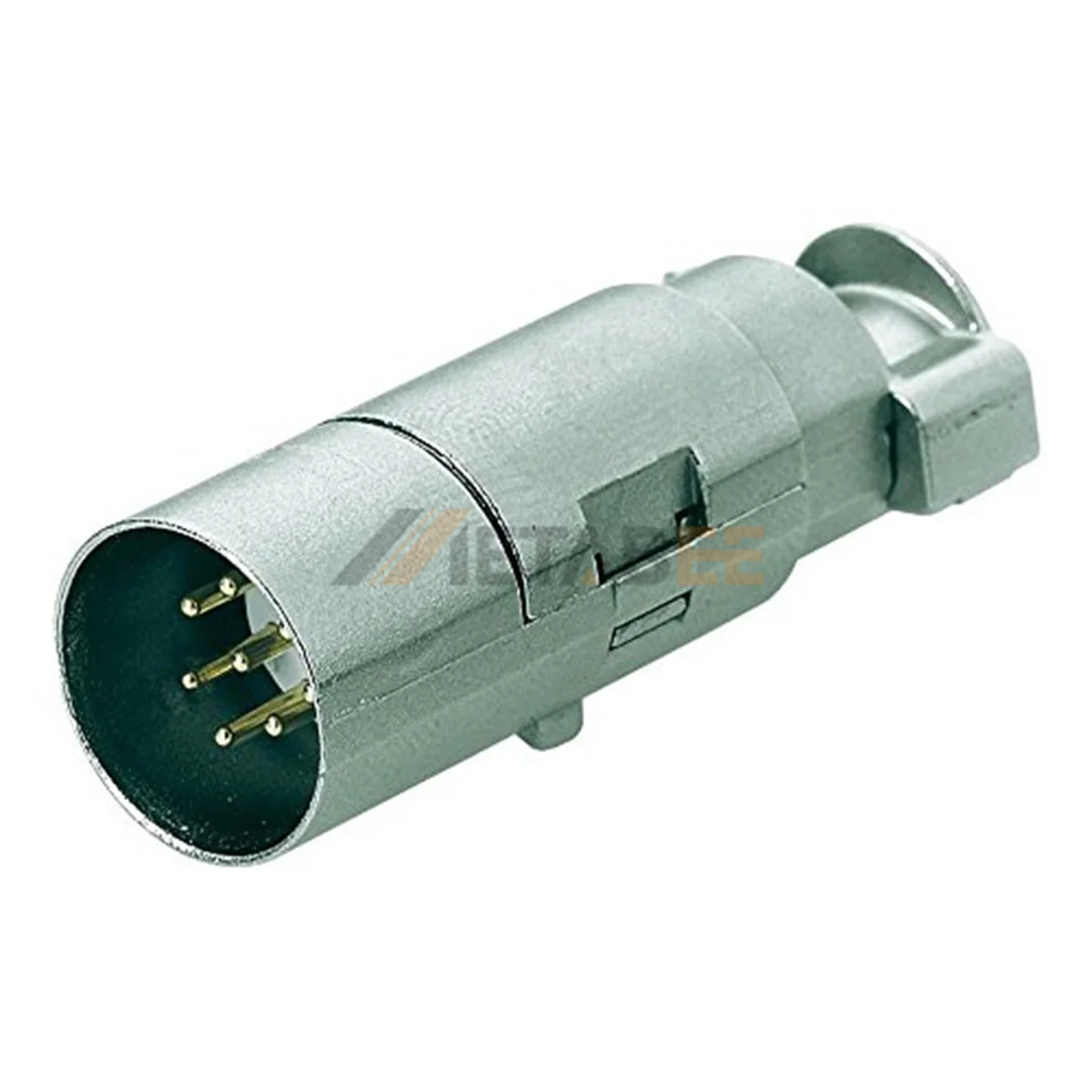

Heavy Duty Connector HM Series 8-Pin Male/Female High Density Q-Coax Contacts Module Inserts, Shielding, Crimp Terminal
Introduction:
The HM series 8-pin high-density Q-Coax module is designed for the compact integration of multiple high-frequency signals. It provides excellent crosstalk immunity by housing 8 independent, 360°-shielded coaxial channels in a single standard module. Utilizing Q-Coax contact technology, it can be freely combined with other HM modules to deliver a high-density, high-reliability connection solution for applications like broadcast systems and test equipment.
To meet different production needs, inserts offer various termination methods for their conductive terminals. Common methods include screw terminal, crimp terminal, cage-clamp terminal, quick-lock terminal, and axial screw terminal.
Key Feature:
- High-Density 8-Pin Q-Coax: Integrates 8 independent coaxial signal channels in one standard module, significantly saving space and costs.
- Crimp Terminal: The crimp terminal is a fast and robust solderless technology, characterized by its high mechanical strength and low contact resistance at the joint.
- Gold-Plated Contacts: Contact surfaces are gold-plated, providing extremely low contact resistance and excellent corrosion resistance to ensure long-term stable signal transmission over multiple mating cycles.
- Modular Design: Can be freely combined with signal, data, and other modules in the same frame for highly customized connection solutions.
- Q-Coax Coaxial Contacts: Each signal path consists of a central pin and a surrounding shield, ensuring excellent signal integrity and noise immunity.
Main Specifications:
General Information:
| Product No.: | QUINTAX-008-M, QUINTAX-008-F | |
| Category: | Heavy-Duty Connector Inserts and Modules | |
| Connector Product Type: | Modules | |
| Connector Series: | HM Series | |
| Contact Gender: | Male/Female | |
| Number of Contacts: | 8+Shielded | |
| Termination methods: | Crimp Terminal | |
| Suitable shell size: | N/A | |
| Wire Gauge: | 0.09-0.52 mm² | |
| AWG: | 28-20 |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 50V AC | |
| Contact Resistance: | ≤ 3 mΩ |
Environmental Performance:
| Temperature Range: | -40℃ to +85℃ | |
| Pollution degree: | 3 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connectors
8 Series of Heavy-Duty Connector Inserts
Heavy-duty connector insert structure diagram (example)
Type of Example Image: HA-016-M/F
