HM-S02 HM Series 2 Pin Male/Female Heavy Duty Connector Module Inserts, 1000V/40A, Axial Screw Terminal
Introduction:
The insert uses a V0 flame-retardant material that meets the UL 94 V-0 standard. This insert is made from a specially processed polycarbonate (PC). This enhancement allows it to withstand a maximum working temperature of +125°C, ensuring reliability in high-heat industrial applications. Its internal conductive contacts use silver-plated copper alloy to deliver excellent electrical performance. The insert also includes a PE ground terminal that makes first contact during mating to ensure electrical safety.
To meet different production needs, inserts offer various termination methods for their conductive terminals. Common methods include screw terminal, crimp terminal, cage-clamp terminal, quick-lock terminal, and axial screw terminal.
Key Feature:
- Axial Screw Termination: Screws are parallel to the wire entry, making it ideal for installation in space-constrained panels or equipment. The wiring process is intuitive and convenient, saving installation time.
- High-Power: Supports a rated voltage of up to 1000V and a rated current of 40A, capable of safely and reliably delivering main power for heavy-duty equipment, inverters, and drive systems.
- Modular Design: Can be freely combined with signal, data, and other modules in the same frame for highly customized connection solutions.
- Wide Temperature Range: Operates flawlessly from -40°C to +125°C, guaranteeing consistent performance in demanding industrial environments with extreme heat or cold.
Note: This module insert has two wire diameter specifications to choose from: 2.5-8 mm² and 6-10 mm².
Main Specifications:
General Information:

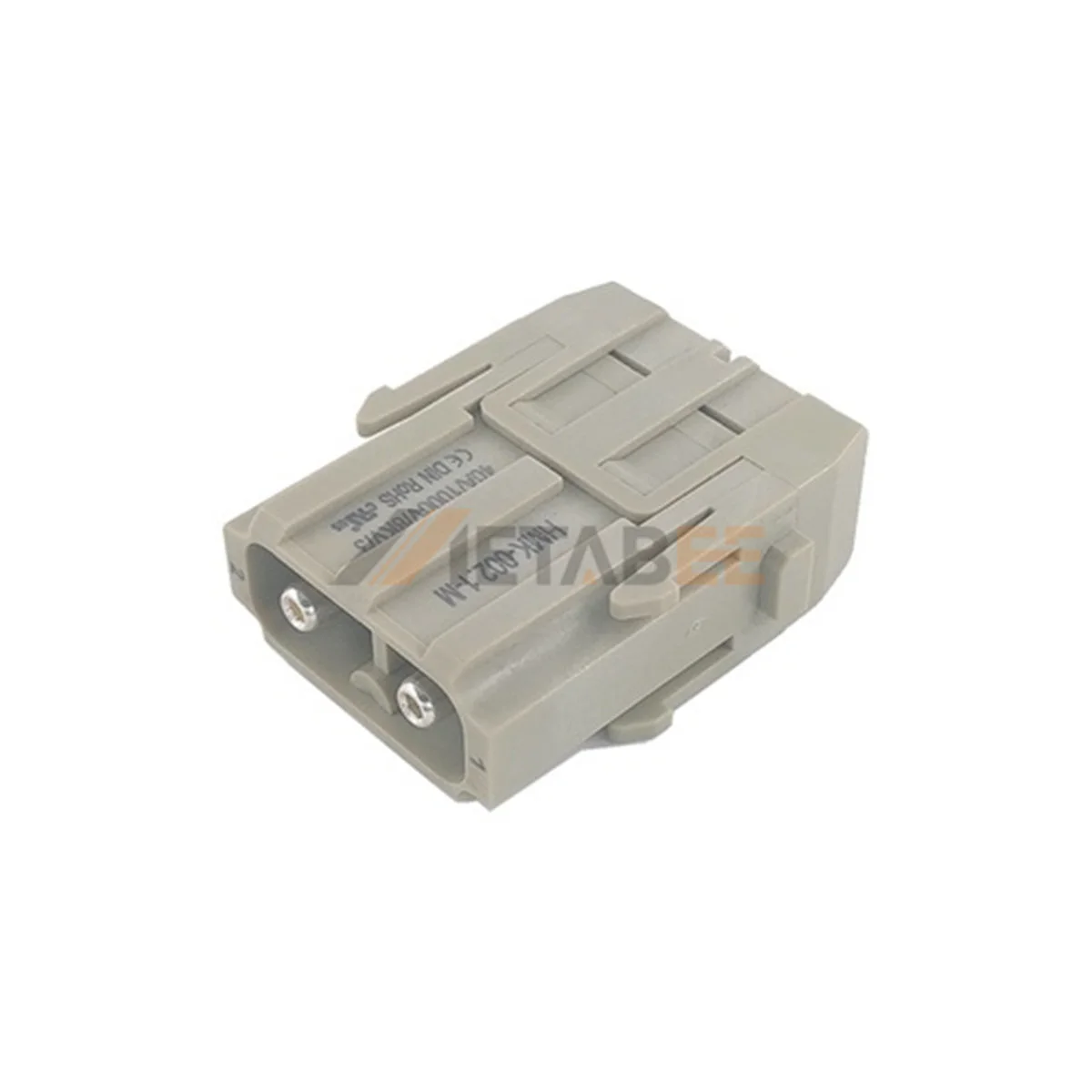

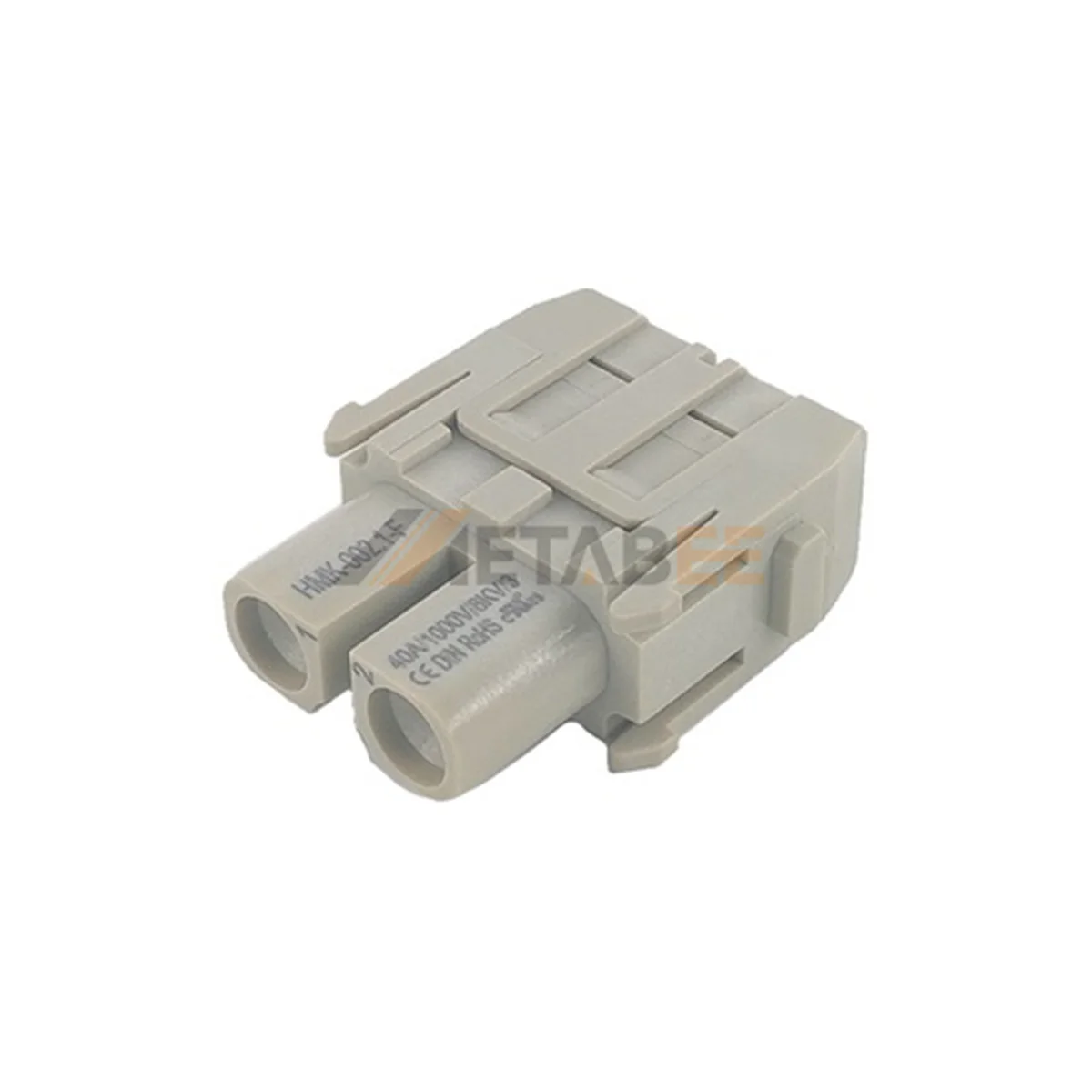

| Product No.: | HM-S02-M, HM-S02-F | |
| Category: | Heavy-Duty Connector Inserts and Modules | |
| Connector Product Type: | Modules | |
| Connector Series: | HM Series | |
| Contact Gender: | Male/Female | |
| Number of Contacts: | 2 | |
| Termination methods: | Axial Screw Terminal | |
| Suitable shell size: | N/A | |
| Wire Gauge: | 2.5-8 mm² or 6-10 mm² | |
| AWG: | 14-8 |
Materials and Plating:
| Insert Material: | Polycarbonate | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plating |
Electrical Performance:
| Rated Current: | 40A | |
| Rated Voltage: | 1000V AC | |
| Contact Resistance: | ≤ 1 mΩ |
Environmental Performance:
| Temperature Range: | -40℃ to +125℃ | |
| Pollution degree: | 3 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connectors
8 Series of Heavy-Duty Connector Inserts
Heavy-duty connector insert structure diagram (example)
Type of Example Image: HA-016-M/F
