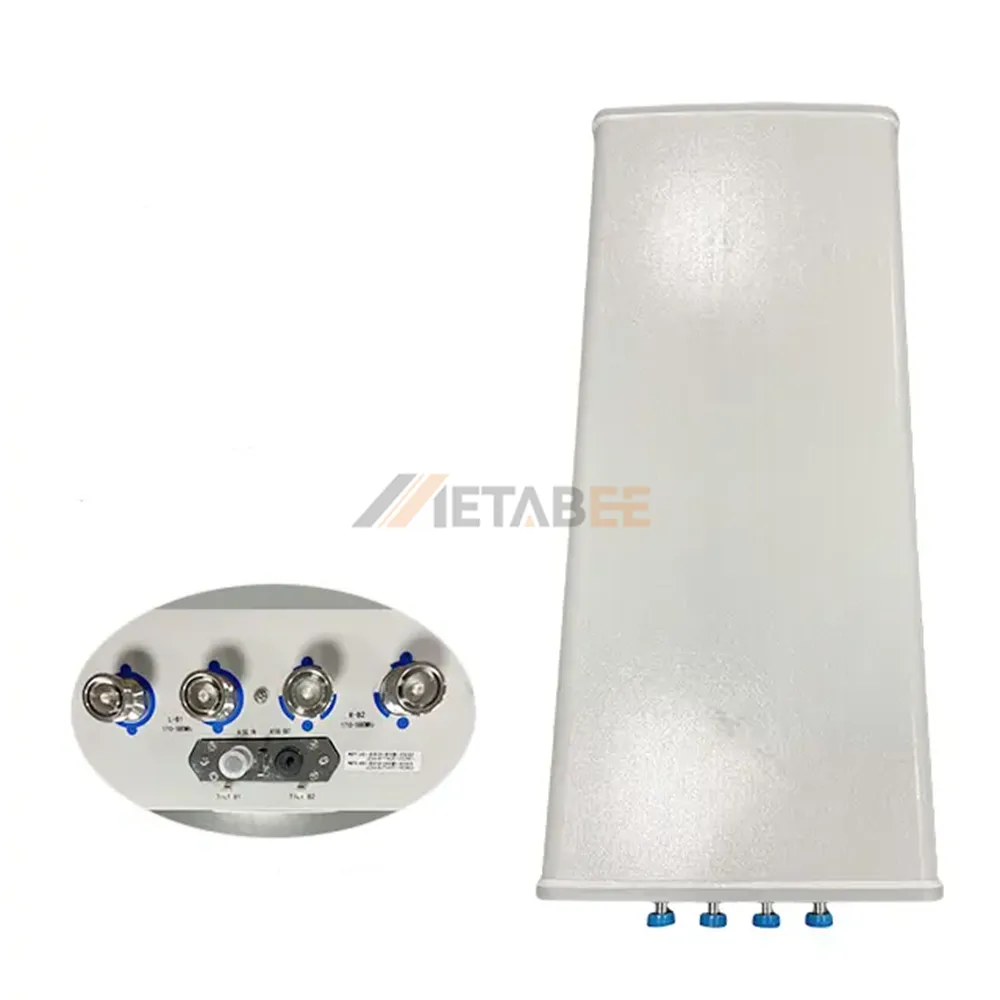

GSM Directional Panel Antenna, 1710~1880 MHz, 18dBi, IP66
Introduction:
Deploy this high-gain GSM Directional Panel Antenna to optimize cellular coverage across the 1710–1880 MHz frequency band. Engineered with an impressive 18dBi gain and precise vertical polarization, this technical-grade antenna delivers narrow, targeted directional beamwidths to establish ultra-stable long-range point-to-point links. It effectively eliminates signal dropouts and maximizes data throughput for critical industrial networking requirements.
Constructed for relentless durability, the robust ABS radome features an IP66 weatherproof rating to safeguard internal components against dust and high-pressure water jets. With a resilient operating threshold from -40°C to 85°C, 36.9 m/s wind survivability, and built-in DC Grounding lightning protection, it ensures uninterrupted uptime in extreme outdoor environments.
Key Features
- Frequency Range: 1710–1880 MHz GSM optimization
- High-Gain Output: Powerful 18dBi directional pattern
- Signal Efficiency: Low voltage standing wave ratio (VSWR ≤1.92)
- Electrical Safety: Integrated DC Grounding lightning protection
- Rugged Housing: IP66-rated weatherproof ABS radome
- Environmental Resilience: Operational from -40°C to 85°C
General Information:
| Product No.: | YC-KS50086 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 1050*445*130mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1710~1880 MHz | |
| Gain: | 18dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this GSM Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
