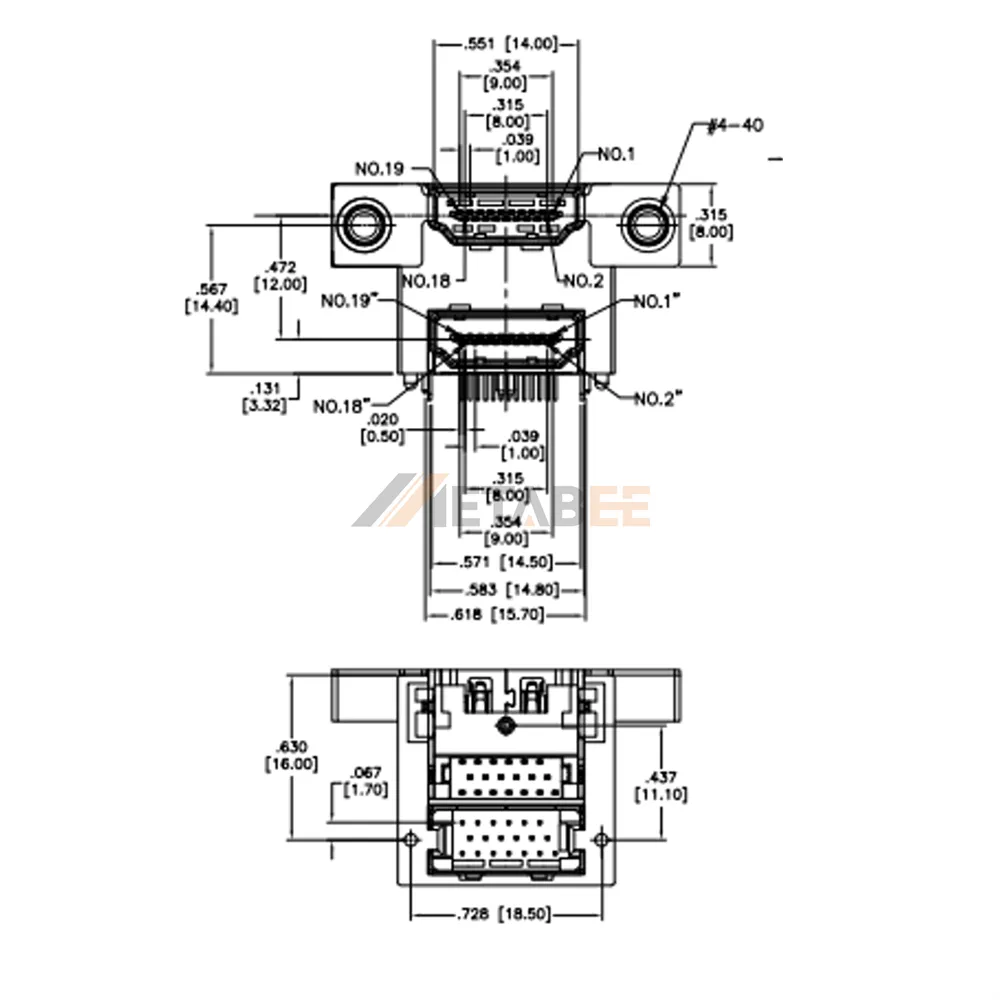

Dual Port HDMI Type A Receptacle for PCB, 19 Pin, Thru Hole
Introduction:
Optimize your PCB layouts and expand high-definition multimedia connectivity with this stacked Dual Port HDMI Type A Receptacle. Designed with 19 pins per port in a durable female configuration, it delivers uncompromised video and audio signal integrity. The right-angle, through-hole design ensures high mechanical stability and robust board retention, making it ideal for space-constrained computing, audio-visual equipment, and high-density industrial electronics.
Engineered for reliable long-term performance under demanding operating conditions, this dual HDMI connector features high-grade insulating materials rated to UL94V-0 flammability standards. With an operating temperature range of -55°C to +85°C, a 0.5A rated current, and a 40V voltage rating, it provides consistent transmission across diverse consumer and embedded systems.
Key Features
- Dual-Port Type A Interface: Stacked 19-pin female receptacle saves board space while doubling HD connectivity.
- Right-Angle Through-Hole Mount: Provides superior mechanical strength and reliable soldering for PCB integration.
- High Electrical Reliability: Rated at 0.5A current and 40V voltage for stable digital signal transmission.
- UL94V-0 Flammability Standard: Built with flame-retardant thermoplastic housing for maximum device safety.
- Wide Operating Temperature: Functions reliably across an extreme range from -55°C up to +85°C.
- Industrial & AV Ready: Perfect for gaming consoles, motherboards, set-top boxes, and commercial display systems.
Main Specifications:
General Information:
| Product No.: | HDMI-D-RA-1-MF | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Dual Port HDMI Type A Receptacle for PCB:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
