This DIP 28 pin IC socket provides a stable carrier for narrow-body integrated circuits on networking boards. It utilizes stamped Phosphor Bronze contacts with a Tin-over-Nickel finish to ensure consistent electrical mating and low resistance. The THT solder tails provide reliable mechanical anchoring to the PCB during daily operation. Its durable glass-filled PBT housing survives high temperatures during industrial wave soldering without any warping. Featuring a standard 2.54mm pitch and 7.62mm row spacing, the component fits common packages perfectly. Technicians utilize this modular interface to replace chips or update firmware easily. This solution effectively protects sensitive silicon from thermal stress during the initial manufacturing process.
Key Features
- Narrow-Body DIP: Fits standard 28 pin narrow dual-row integrated circuits.
- Stamped Contacts: Ensures reliable electrical mating and signal integrity.
- THT Termination: Provides stable mechanical anchoring to the PCB.
- UL 94V-0 PBT: Delivers high flame resistance and thermal stability.
Main Specifications:
General Information:
| Product No.: | ICS-328-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 28 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |

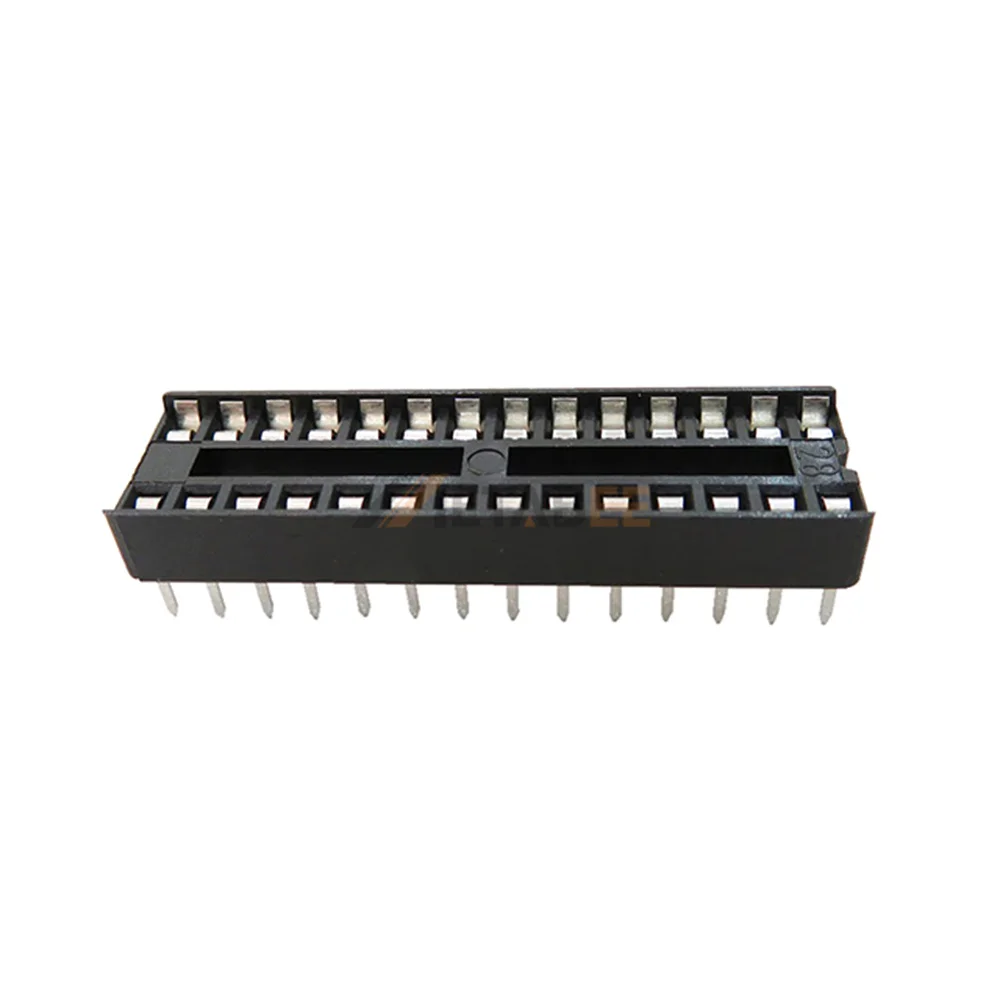

DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
