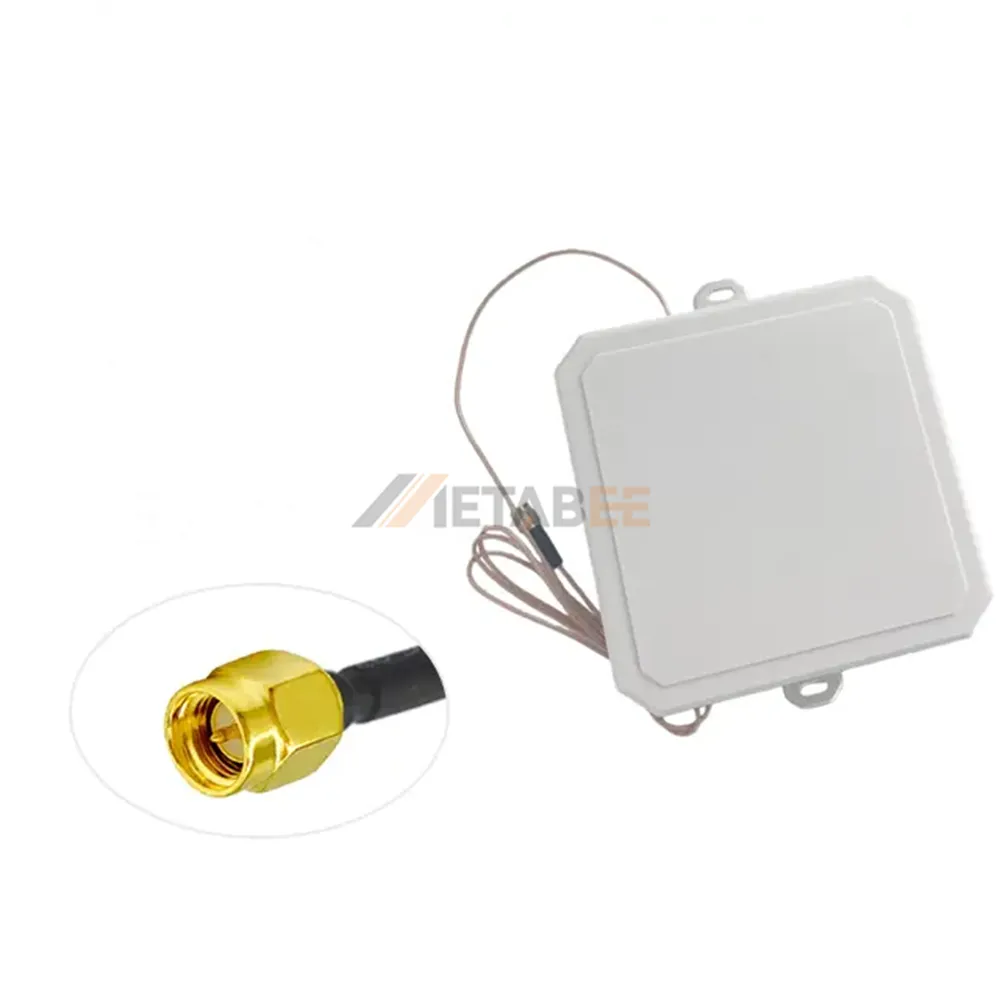

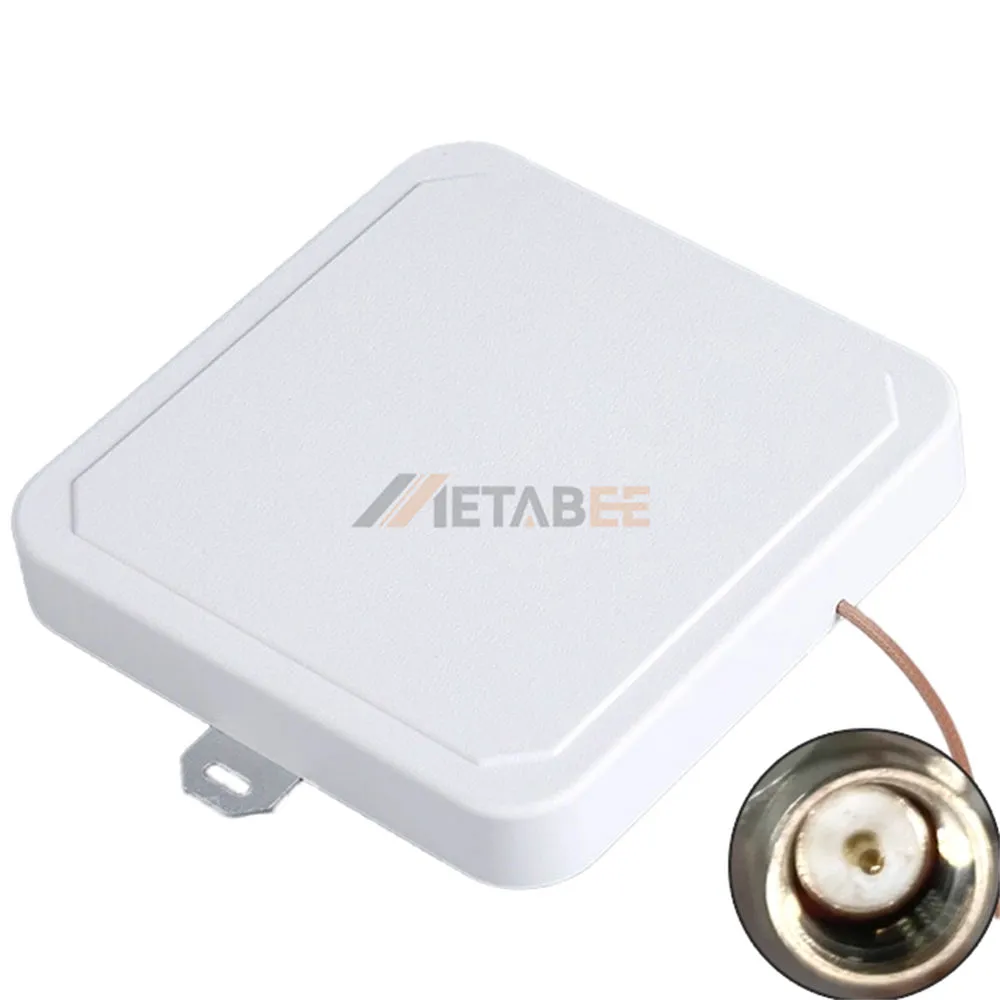

915 MHz Directional RFID/LoRaWAN Panel Antenna with RG316 Cable, 6dBi, SMA Connector
Introduction:
The 915 MHz Directional RFID/LoRaWAN Panel Antenna is designed for reliable long-range wireless communication in RFID and LoRaWAN applications. Operating across the 902–928 MHz frequency range, it delivers 6dBi gain with a directional radiation pattern to improve signal coverage and transmission efficiency. Circular polarization enhances signal stability and minimizes interference in complex deployment environments.
Featuring a durable ABS radome and IP66-rated waterproof construction, this antenna is built for demanding outdoor use. It supports up to 50W input power with 50 Ohm impedance and maintains efficient performance with a VSWR of ≤2.0. The SMA connector with RG316 cable ensures flexible installation, while DC grounding lightning protection improves operational safety and reliability.
Key Features
- 902–928 MHz RFID and LoRaWAN coverage
- 6dBi directional signal enhancement
- Circular polarization for stable connectivity
- SMA connector with durable RG316 cable
- IP66-rated ABS enclosure for outdoor use
- Lightning protection with -40°C to +85°C operation
General Information:
| Product No.: | YC-KS50067-A | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA connector | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 130X130X20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 902~928MHz | |
| Gain: | 6dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Circular | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 915 MHz Directional RFID/LoRaWAN Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
