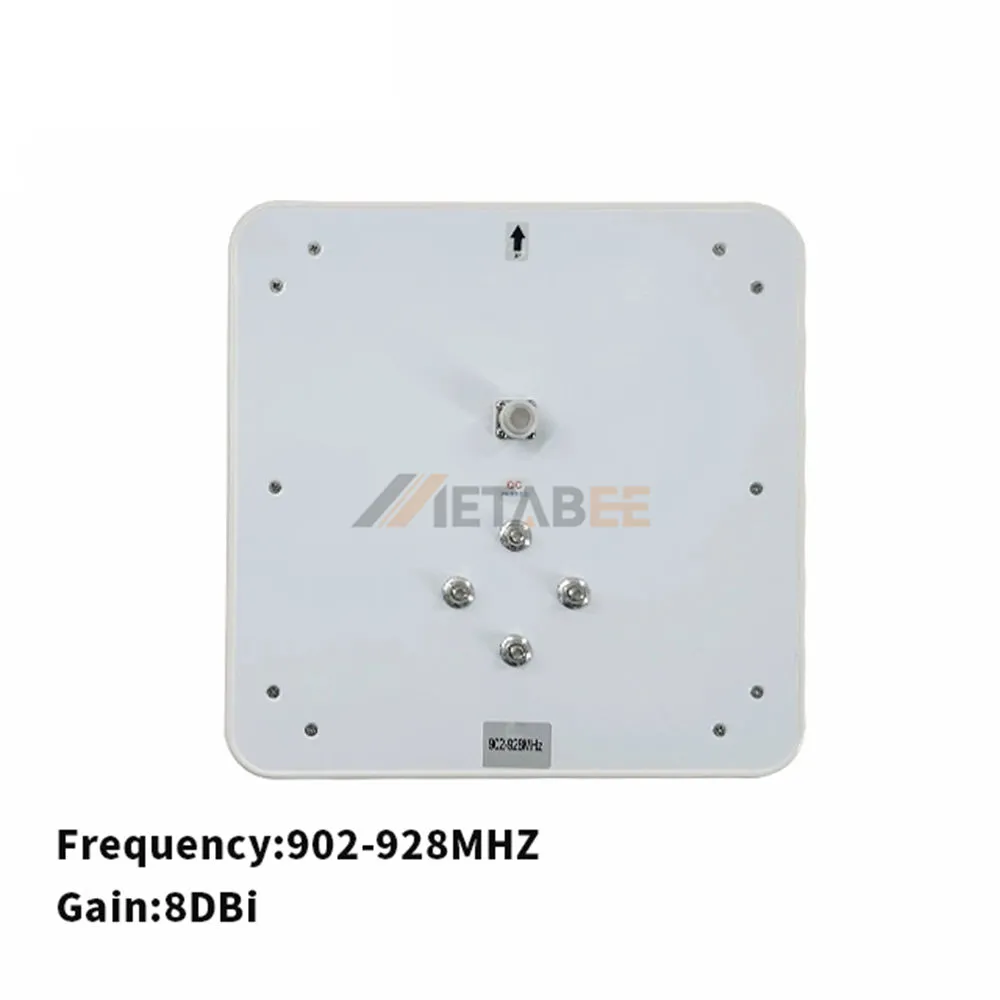

915 MHz IoT/LoRa/RFID Directional Panel Antenna, 8dBi, N Female, IP66
Introduction:
The 915 MHz IoT/LoRa/RFID Directional Panel Antenna is engineered for reliable long-range wireless communication across industrial IoT, RFID, and LoRaWAN applications. Operating within the 902–928 MHz frequency band, this high-performance antenna delivers 8dBi gain with a directional radiation pattern, enhancing signal coverage and transmission stability in demanding outdoor environments.
Designed with vertical polarization and a low VSWR of less than 1.4, the antenna ensures efficient signal transmission and reduced reflection loss. Its rugged ABS radome, IP66 waterproof rating, and DC grounding lightning protection provide dependable operation in harsh weather conditions. Supporting up to 50W input power and wind survivability of 36.9 m/s, it is ideal for smart agriculture, industrial automation, asset tracking, and remote monitoring systems.
Key Features
- 902–928 MHz ISM band operation
- High-gain 8dBi directional performance
- Low VSWR <1.4 for signal efficiency
- Durable ABS radome with IP66 protection
- N Female connector with 50 Ohm impedance
- Wide operating temperature from -40 °C to 85 °C
General Information:
| Product No.: | YC-KS50082 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 256 x 256 x 43mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 902~928 MHz | |
| Gain: | 8dBi | |
| VSWR: | <1.4 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 915 MHz IoT/LoRa/RFID Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
