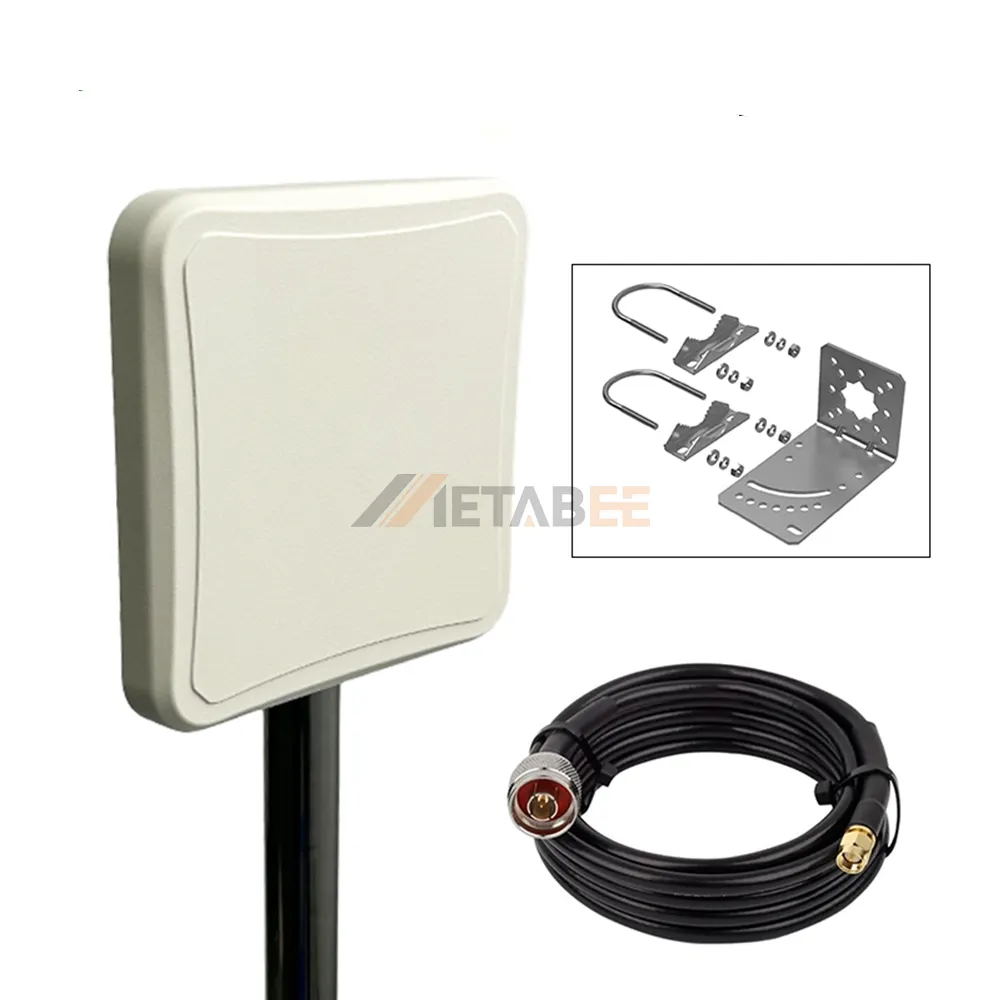

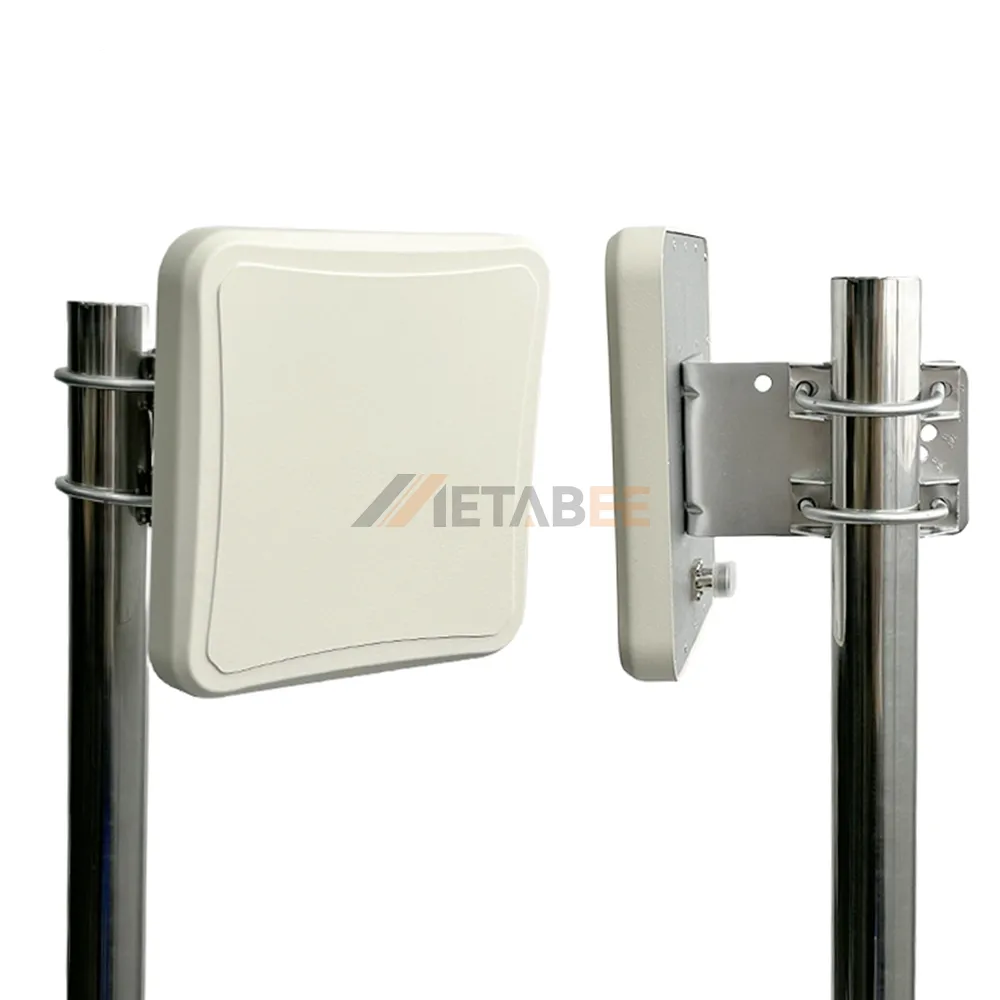

5G High Gain Panel Directional Antenna, 3700~4200 MHz, 14dBi, N Female, IP67
Introduction:
The 5G High Gain Panel Directional Antenna (3700–4200 MHz, 14dBi) is engineered for premium 5G and C-band deployments. With a narrow directional pattern and vertical polarization, it delivers focused, long-range signal transmission while minimizing interference. The IP67-rated ABS radome and N Female connector ensure reliable installation in outdoor environments, backed by a wide operating temperature range (-40°C to +85°C) and 36.9 m/s wind survival. DC grounding provides built-in lightning protection, making it ideal for base stations, private 5G networks, and backhaul links.
Key Features
- High gain (14dBi) – Extends range and link stability.
- Directional radiation – Focuses the signal for point-to-point or sector applications.
- IP67 ruggedness – Fully dust-tight and waterproof for harsh outdoor use.
- DC grounding – Integrated lightning protection.
- Low VSWR (<1.92) – Minimizes signal reflection loss.
- 50W power handling – Supports high-output transmitters.
General Information:
| Product No.: | YC-KS50054 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |

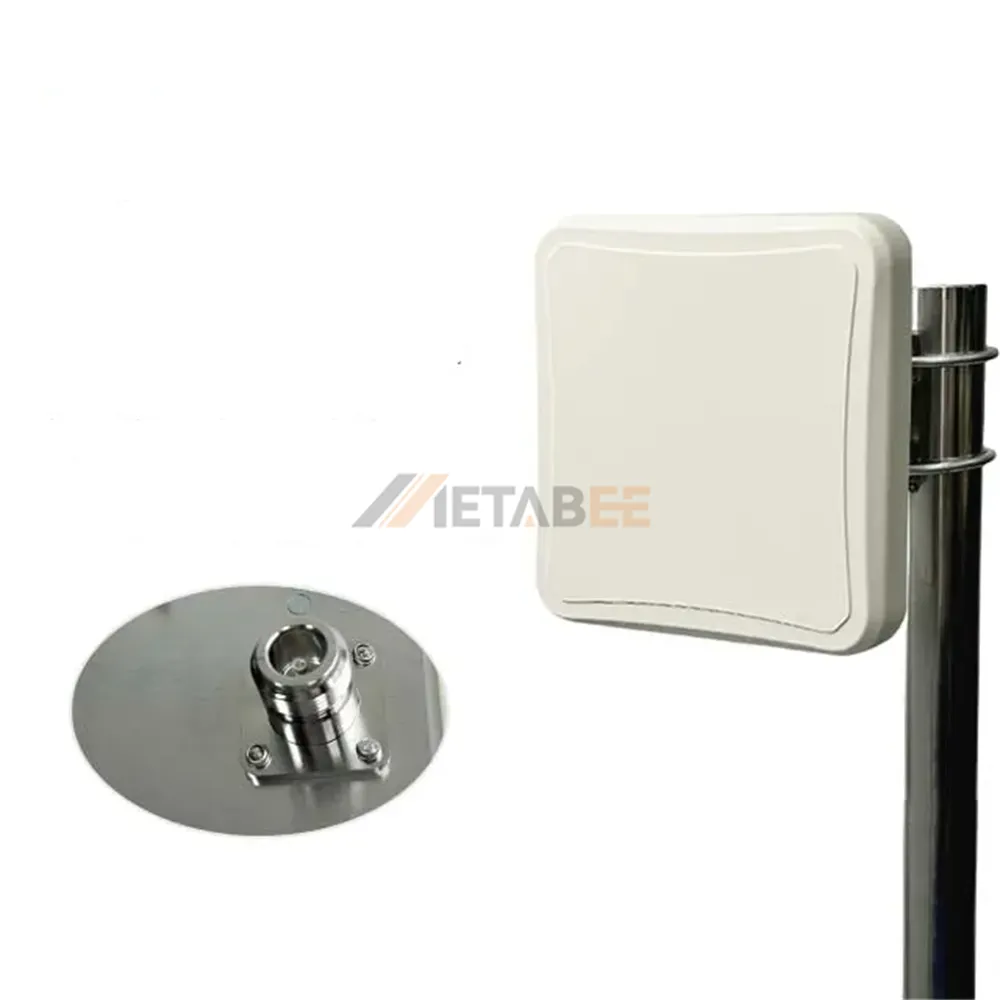

| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 190*190*25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 3700~4200 MHz | |
| Gain: | 14dBi | |
| VSWR: | <1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5G High-Gain Panel Directional Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
