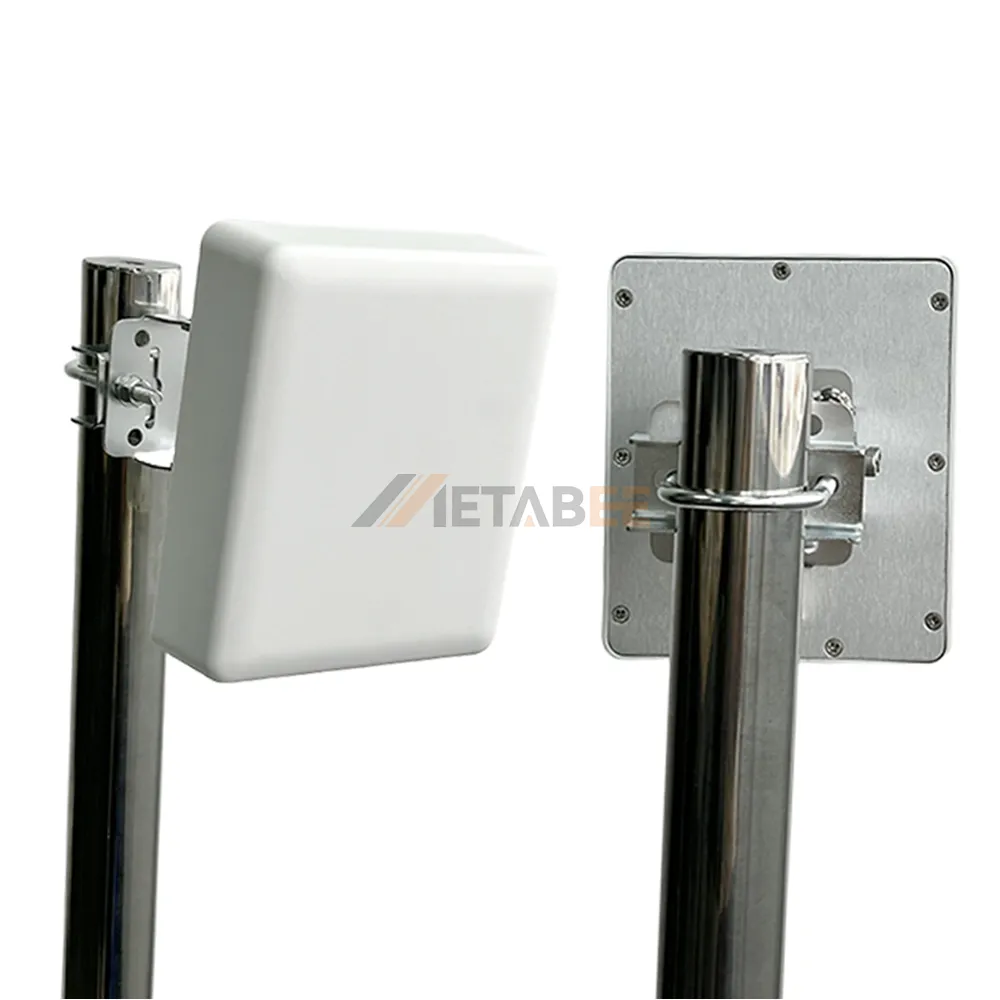

5G/4G/LTE WideBand Cellular Panel Antenna, 1710-3800 MHz, 10dBi, N Female, IP66
Introduction:
Engineered for high-capacity networking, this rugged 5G/4G/LTE WideBand Cellular Panel Antenna delivers exceptional performance across the 1710-3800 MHz spectrum. Featuring a high-gain 10dBi design and stable vertical polarization, it maximizes signal throughput and reduces latency for critical commercial and industrial communication systems.
Built to withstand severe environmental stress, the antenna features an IP66-rated ABS radome, ensuring absolute protection against dust and high-pressure water jets. With built-in DC Grounding lightning protection and a wind survivability rating of 36.9 m/s, it guarantees continuous uptime and structural integrity in extreme outdoor conditions from -40 °C to 85 °C.
Key Features
- WideBand Spectrum: Seamlessly covers 1710-3800 MHz for 5G, 4G, and LTE networks.
- 10dBi High Gain: Optimizes signal strength and directional reach via vertical radiation.
- Low VSWR (≤1.92): Minimizes signal reflection with 50 Ohm impedance efficiency.
- IP66 Weatherproof: Durable, UV-resistant ABS radome protects internal components.
- Heavy-Duty Build: Engineered to survive wind speeds up to 36.9 m/s.
- Industrial Connectivity: Integrated N-Female connector with DC Grounding lightning defense.
General Information:
| Product No.: | YC-KS50009 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 140*120*37mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1710-3800 MHz | |
| Gain: | 10dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5G/4G/LTE WideBand Cellular Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
