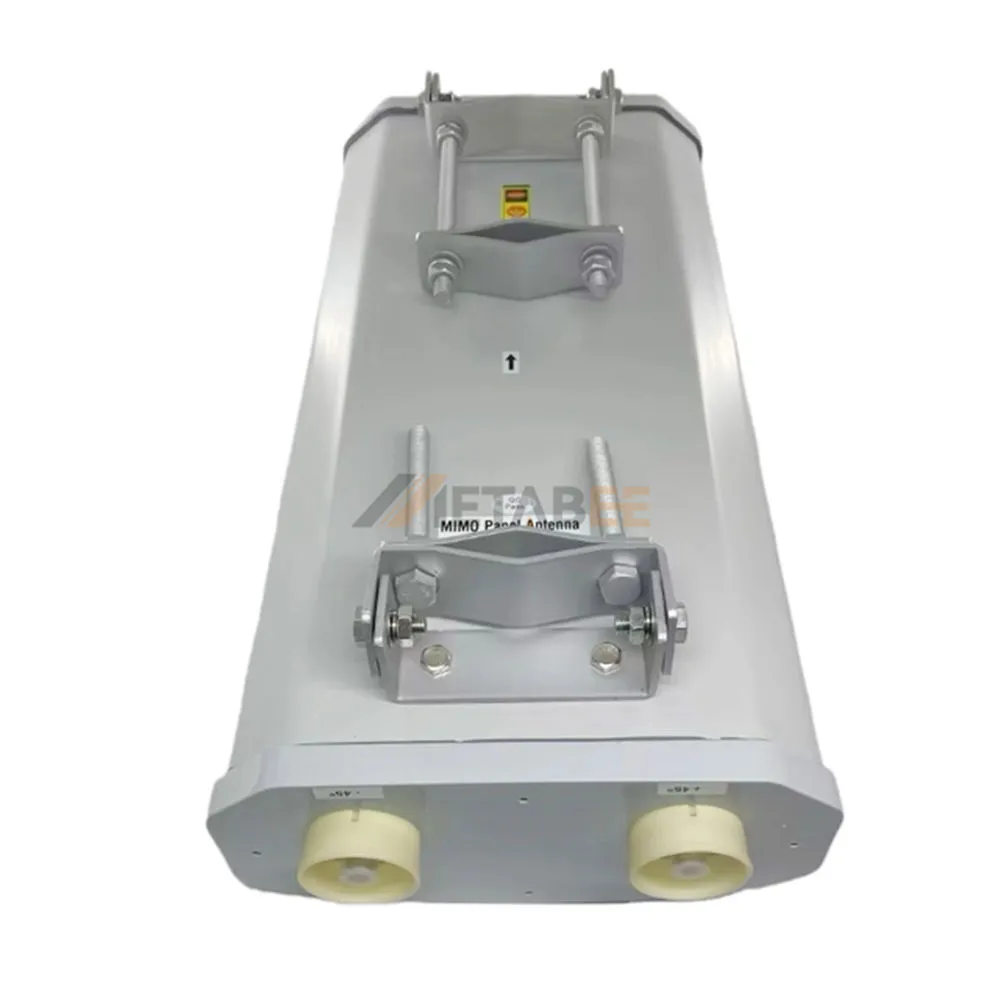

5G/4G/LTE Directional Cellular Panel Antenna, N Female, 12dBi, IP66
Introduction:
The 5G/4G/LTE Directional Cellular Panel Antenna is designed for reliable multi-band cellular communication across 698–960 MHz, 1710–2700 MHz, and 3300–3800 MHz frequencies. With 12dBi high gain and a directional radiation pattern, it provides focused signal transmission and extended coverage for 5G, 4G, and LTE network applications. Vertical polarization enhances signal consistency and communication stability in fixed outdoor installations.
Built with a rugged ABS radome and IP66-rated enclosure, this antenna is suitable for demanding outdoor environments. It features 50 Ohm impedance, supports up to 50W input power, and maintains efficient performance with a VSWR of ≤1.92. The N-Female connector ensures secure connectivity, while DC grounding lightning protection improves operational safety and system reliability.
Key Features
- Multi-band 5G/4G/LTE frequency support
- 12dBi high-gain directional performance
- Vertical polarization for stable signal transmission
- IP66-rated ABS housing for outdoor durability
- N-Female connector with 50 Ohm impedance
- Lightning protection with -40°C to +85°C operation
General Information:
| Product No.: | YC-KS50072 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 600*290*130mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 698-960/1710-2700/3300-3800 MHz | |
| Gain: | 12dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5G/4G/LTE Directional Cellular Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
