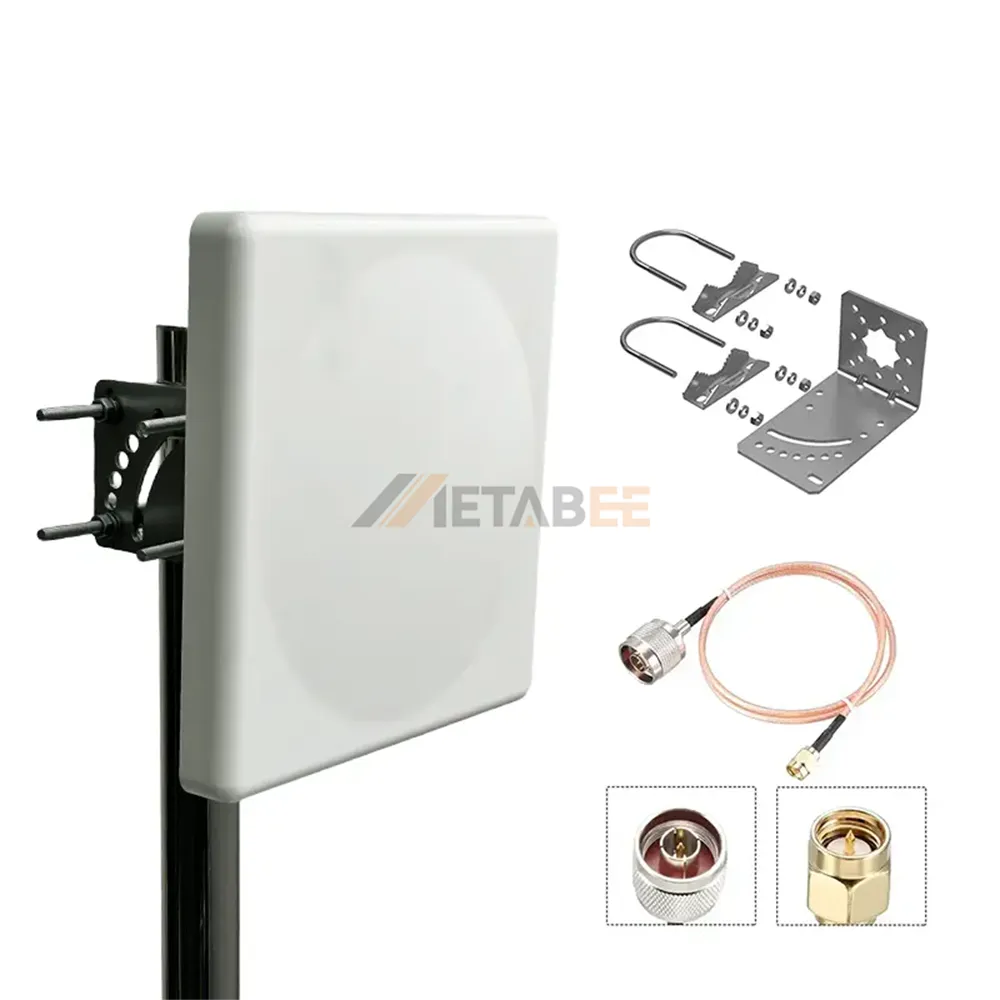

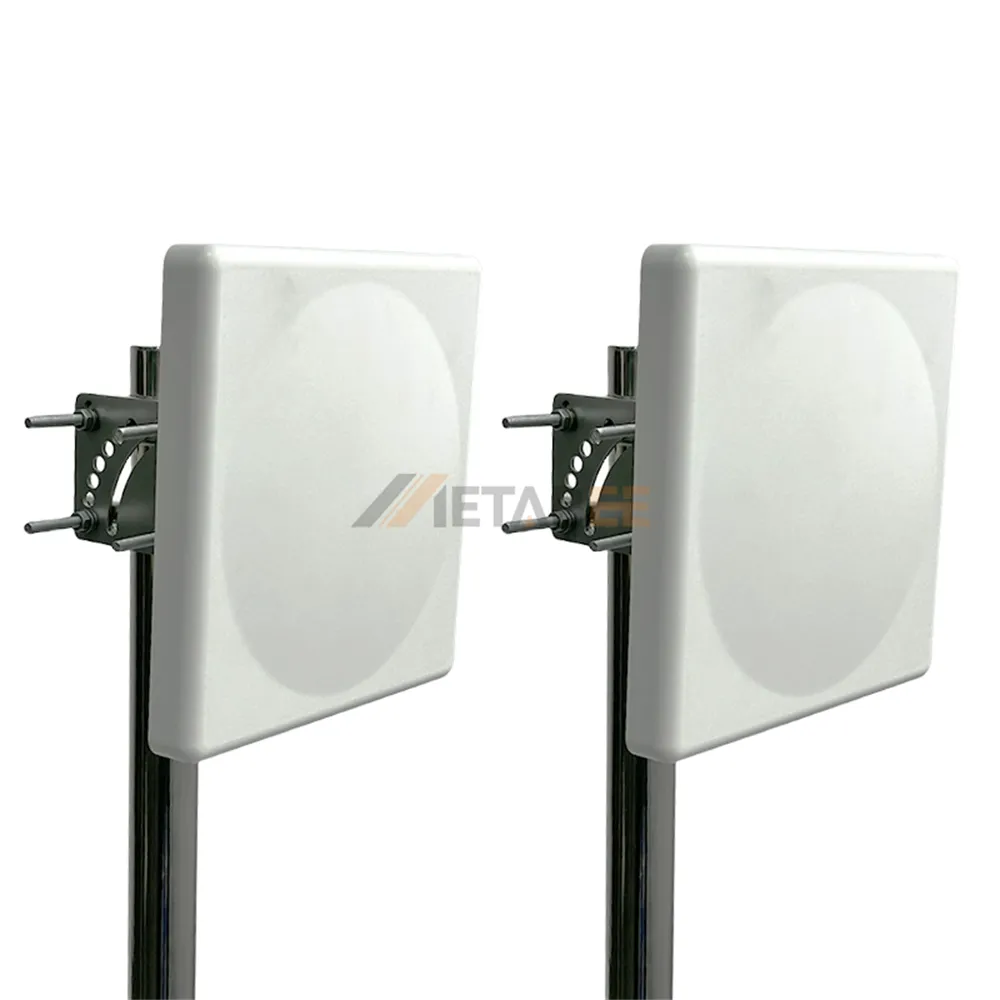

5.8GHz WiFi MIMO Panel Antenna, 18dBi, 2xN-Female Connector, IP66
Introduction:
The 5.8GHz WiFi MIMO panel antenna is engineered for high-speed wireless communication and long-range network coverage. Operating across the 5150–5850 MHz frequency range, this antenna delivers 18dBi high gain with a directional radiation pattern, providing enhanced signal strength and stable data transmission for WiFi, WLAN, and broadband wireless systems.
Designed with MIMO technology and dual N-Female connectors, the antenna supports improved throughput and reduced interference in demanding outdoor environments. Its low VSWR of ≤1.5 ensures efficient signal performance, while the rugged ABS radome and IP66 waterproof rating offer reliable protection against harsh weather conditions. With DC grounding lightning protection and 50W power handling, it is ideal for outdoor WiFi bridges, surveillance systems, and industrial wireless networks.
Key Features
- 5150–5850 MHz wideband WiFi coverage
- High-gain 18dBi directional performance

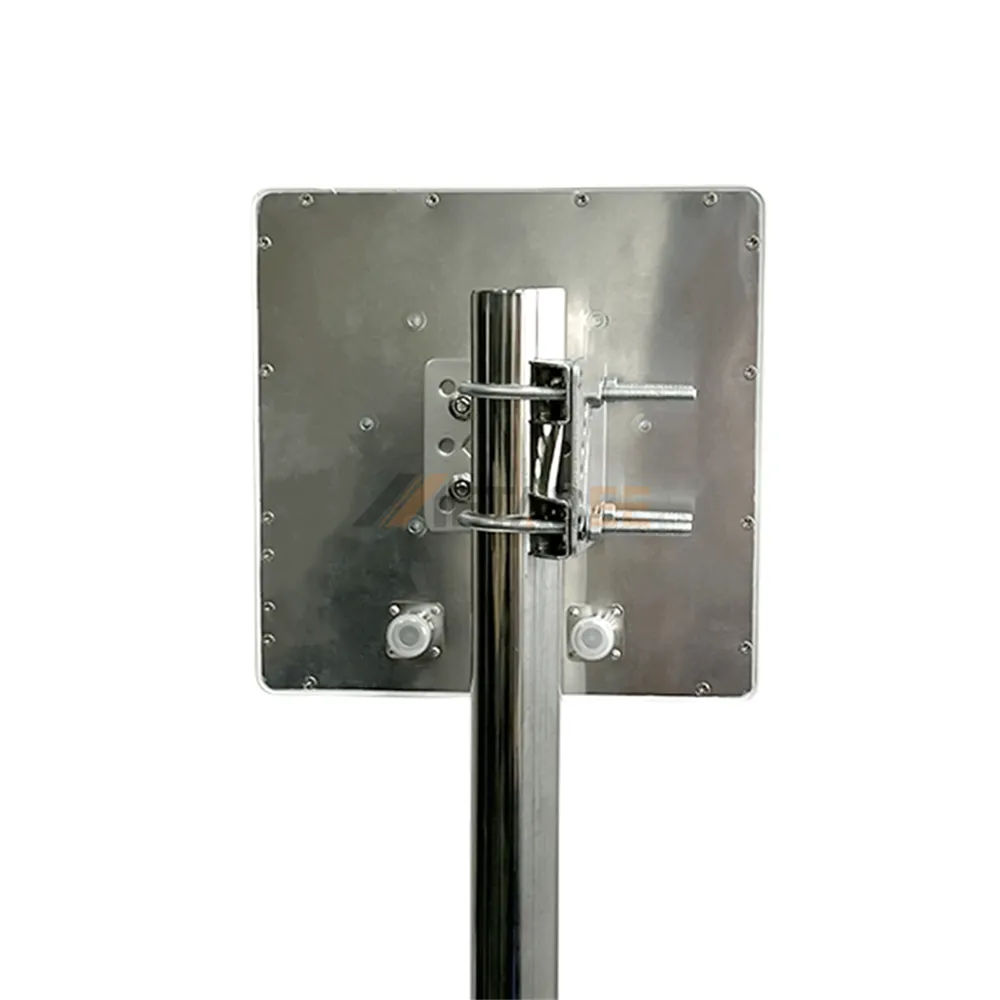

- MIMO design with 2×N-Female connectors
- Low VSWR ≤1.5 for signal efficiency
- IP66 ABS enclosure for outdoor durability
- DC grounding lightning protection system
General Information:
| Product No.: | YC-KS50033 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 225*225*50mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 5150-5850 MHz | |
| Gain: | 18dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical+Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5.8GHz WiFi MIMO Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
