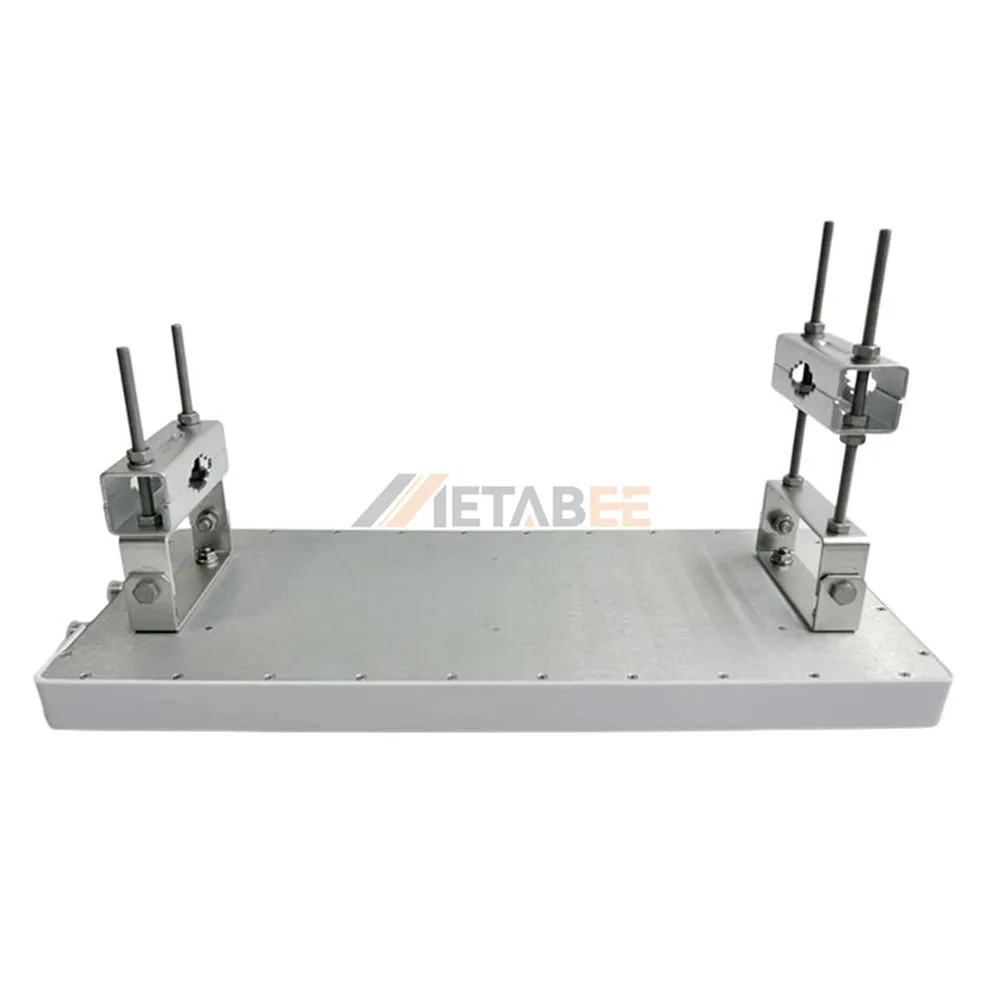

5.8GHz WiFi Directional Panel Antenna, 5150∼5850MHz, 15dBi, N-Female, IP66
Introduction:
Optimize your wireless network with this high-performance 5.8GHz directional panel antenna, engineered for high-gain, long-range outdoor point-to-point bridging and localized Wi-Fi coverage. Operating across the 5150–5850 MHz frequency band, this enterprise-grade antenna delivers a powerful 15dBi directional signal with vertical polarization, effectively minimizing interference and maximizing throughput.
Built for deployment in harsh outdoor environments, the antenna features a rugged ABS radome with an IP66 waterproof rating and can withstand winds up to 36.9 m/s. It includes integrated DC grounding for superior lightning protection and terminates in an industry-standard N-Female connector, ensuring seamless integration with your base stations and access points.
Key Features
- 5150–5850 MHz Range: Optimized for high-speed 5.8GHz Wi-Fi networks.
- 15dBi Directional Gain: Concentrates the signal for long-distance connectivity.
- IP66 Weatherproof: Durable ABS housing operates from -40°C to 85°C.
- Heavy-Duty Build: Engineered to survive high winds up to 36.9 m/s.
- Integrated DC Ground: Built-in lightning protection safeguards connected radios.
- Standard N-Female Interface: Ensures low insertion loss and high compatibility.
General Information:
| Product No.: | YC-KS50044 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 550*230*40mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 5150∼5850 MHz | |
| Gain: | 15dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5.8GHz WiFi Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
