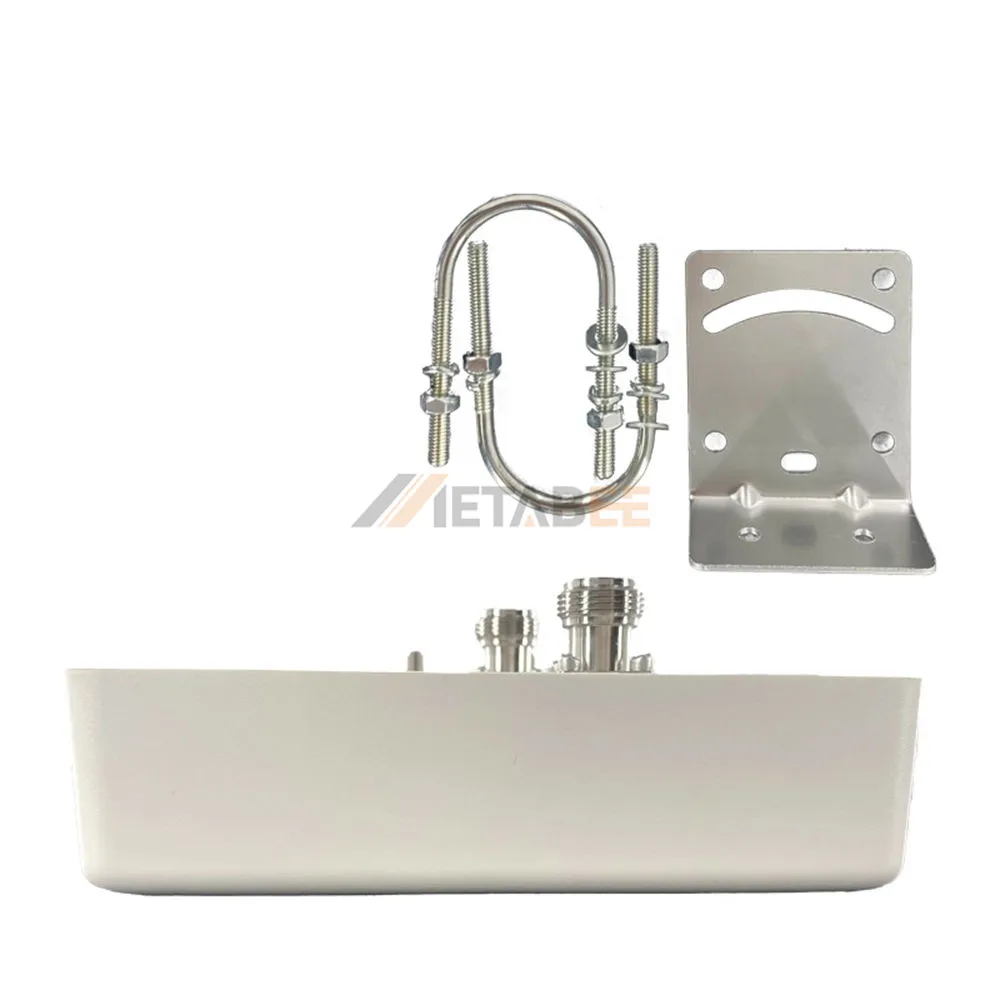

5.8 GHz Directional WiFi Panel Antenna with LMR200 Cable, 12dBi, N-Female, Dual-Polarization
Introduction:
Maximize your wireless network performance with the 5.8 GHz Directional WiFi Panel Antenna. Engineered with a powerful 12dBi gain and dual-polarization technology, this antenna delivers precise directional coverage, significantly reducing interference and boosting data throughput for long-range point-to-point bridging or outdoor deployments.
Built to withstand severe environments, the antenna features an IP66-rated weatherproof ABS radome. With an operating temperature range of -40°C to 85°C, 36.9 m/s wind survivability, and integrated DC Grounding lightning protection, it guarantees uninterrupted, stable connectivity and robust hardware defense in the most extreme outdoor conditions.
Key Features
- 5.8 GHz Frequency: Optimized for high-speed, low-interference WiFi networks.
- 12dBi Dual-Polarization: Enhances signal strength, range, and data throughput.
- Directional Beam: Focuses energy precisely to reduce background wireless noise.
- IP66 Weatherproof: Rugged ABS radome protects against dust and heavy rain.
- N-Female Connector: Features a premium LMR200 cable for low signal loss.
- Extreme Resilience: Withstands -40°C to 85°C temps and 36.9 m/s winds.
General Information:
| Product No.: | YC-KS50064 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 120X140X27mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 5150-5850MHz | |
| Gain: | 12dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical + Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5.8 GHz Directional WiFi Panel Antenna with LMR200 Cable:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
