4G/LTE/GSM Outdoor Directional Panel Antenna, 1.65∼1.8 GHz, 13dBi, N-Female, IP66
Introduction:
The 4G/LTE/GSM Outdoor Directional Panel Antenna is designed to enhance wireless communication performance across the 1.65–1.8 GHz frequency range. With 13dBi high gain and a directional radiation pattern, it delivers focused signal transmission and improved coverage for LTE, GSM, and cellular network applications. Dual-polarization technology helps optimize signal stability and data throughput in outdoor deployments.
Constructed with a durable ABS radome and IP66-rated enclosure, this antenna withstands harsh environmental conditions while ensuring reliable long-term operation. It features a VSWR of ≤1.92, 50 Ohm impedance, and supports up to 50W input power. The N-Female connector enables secure integration, while DC grounding lightning protection and wind survivability up to 36.9 m/s provide enhanced operational safety.
Key Features
- 1.65–1.8 GHz LTE/GSM frequency support
- 13dBi high-gain directional coverage
- Dual-polarization for stable connectivity
- IP66-rated ABS housing for outdoor use
- N-Female connector with 50 Ohm impedance
- Lightning protection and -40°C to +85°C operation
General Information:
| Product No.: | YC-KS50076 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |

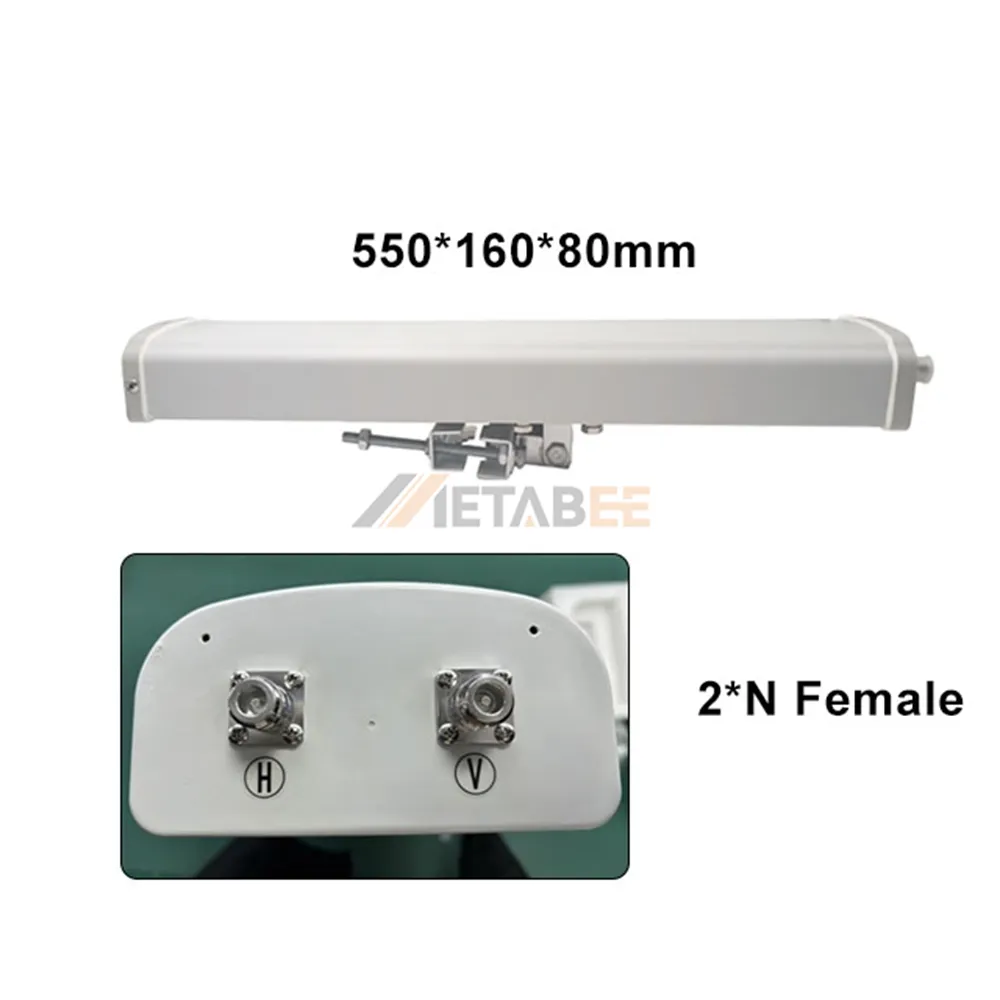

| Dimensions: | 550*160*80mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1650~1800 MHz | |
| Gain: | 13dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 4G/LTE/GSM Outdoor Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
