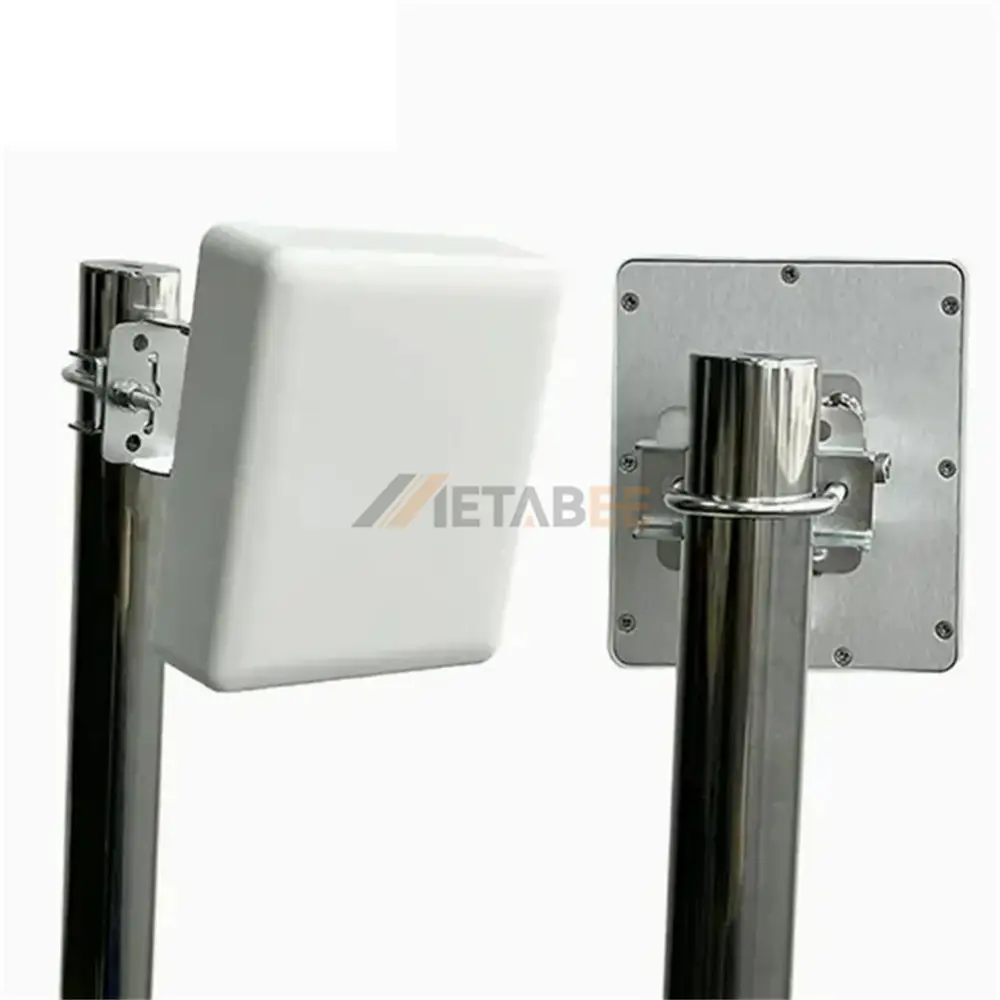

4G/LTE Directional Panel Antenna, 10dBi, N Female, IP66
Introduction:
The 4G/LTE directional panel antenna is designed for stable and efficient wireless communication across the 2300~2700 MHz frequency range. With 10dBi high gain and vertical polarization, it enhances LTE signal strength, improves coverage, and delivers reliable data transmission for outdoor wireless networks.
Built with a durable ABS radome and IP66 waterproof protection, this antenna ensures dependable performance in harsh outdoor environments. Its low VSWR <1.92 minimizes signal loss, while the N Female connector provides secure compatibility with LTE routers, repeaters, and communication systems.
Supporting 50W maximum input power, 50 Ohm impedance, DC grounding lightning protection, and operating temperatures from -40 °C to 85 °C, this antenna is ideal for industrial LTE, IoT, and broadband applications.
Key Features
- 2300~2700 MHz LTE frequency coverage
- 10dBi high-gain directional performance
- Vertical polarization design
- IP66-rated weatherproof housing
- N Female connector interface
- DC grounding lightning protection
General Information:
| Product No.: | YC-KS50057 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 120x140x25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2300~2700 MHz | |
| Gain: | 10dBi | |
| VSWR: | <1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 4G/LTE Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
