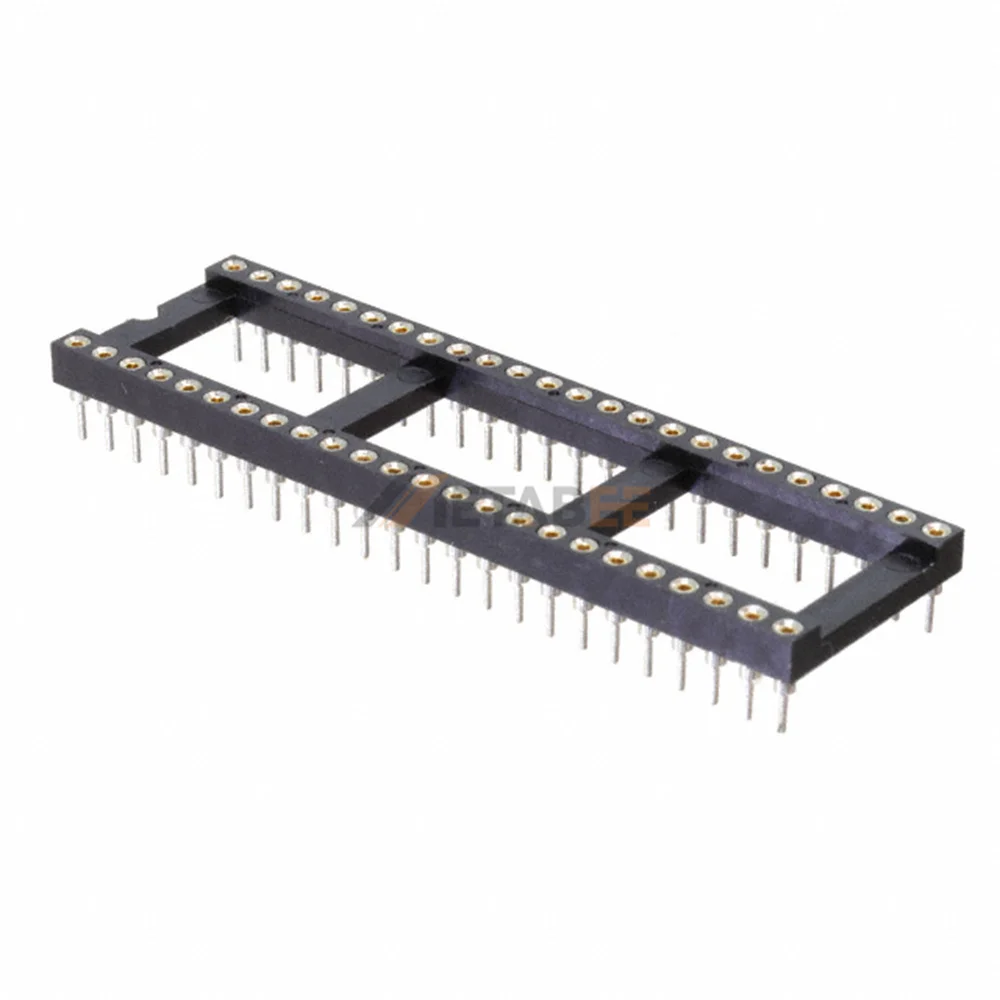

This 48 pos machined pin DIP socket provides a high-precision carrier for high-pin-count integrated circuits on networking boards. It features two-piece screw-machined sleeves and four-finger Beryllium Copper clips to ensure a secure, 360-degree gas-tight electrical bond that resists vibration. The housing is molded from high-performance PPS thermoplastic to withstand extreme industrial wave soldering temperatures without any structural warping. Utilizing a .600″ row spacing, the component provides a stable mounting platform for large dual-row DIP packages. Engineers utilize this 3A rated modular interface to plug in sensitive components easily while protecting them from thermal stress during assembly. This robust solution ensures long-term signal stability for complex industrial and networking hardware.
Key Features
- Wide Body Design: Fits standard 15.24mm (.600″) wide dual-row ICs.
- Machined Round Pins: Features four-finger clips for maximum contact reliability.
- Hi-Temp PPS Housing: Survives intense soldering heat without any physical deformation.
- 3A Current Capacity: Supports reliable power delivery for high-pin-count circuits.
Main Specifications:
General Information:
| Product No.: | ICM-648-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 48 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.6″ (15.24mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
ICM-6XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
