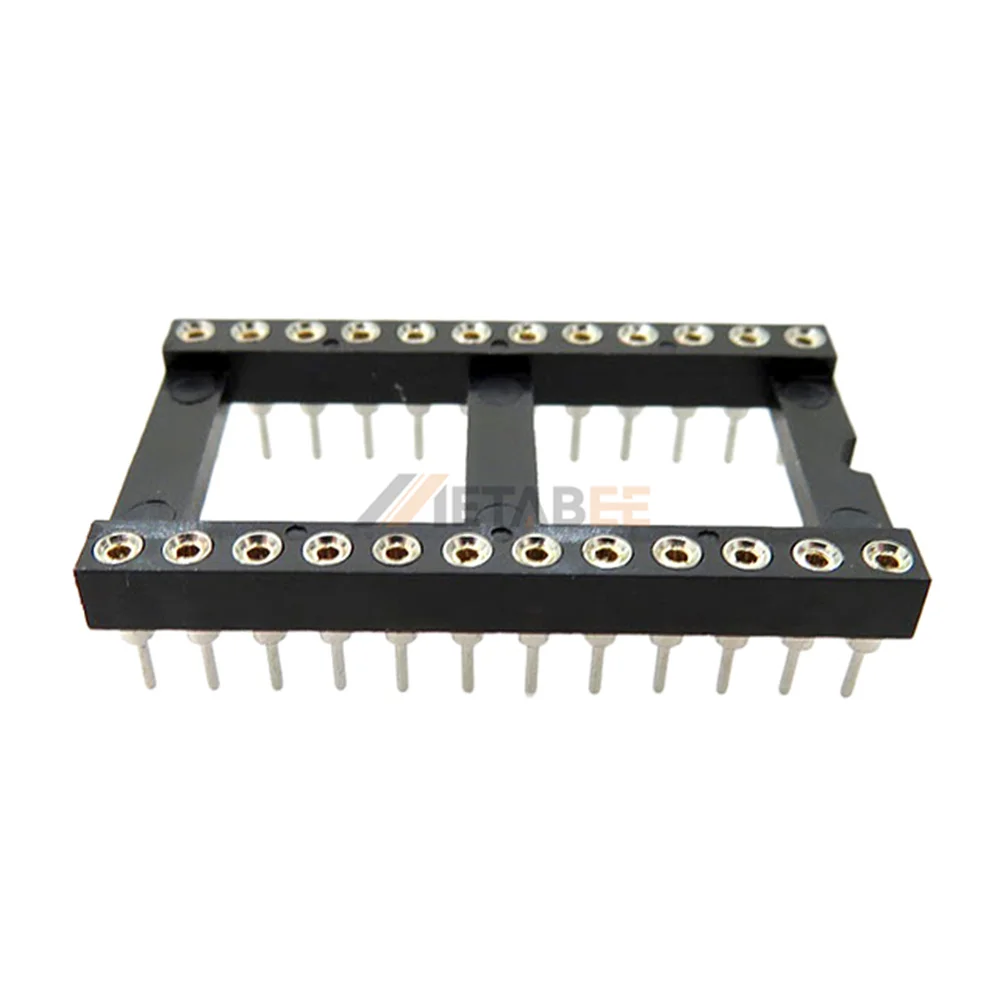

This 24 pin machined round IC socket acts as a high-precision pluggable interface for narrow-body integrated circuits on compact networking boards. It features two-piece screw-machined contacts with 4-finger Beryllium Copper clips to ensure a secure, 360-degree electrical connection that resists vibration. The housing is molded from high-temperature PPS thermoplastic to survive intense industrial wave soldering without any structural warping. Utilizing a 7.62mm narrow row spacing, this component provides a stable mounting platform for specialized DIP packages in high-density layouts. Engineers utilize this 3A-rated modular carrier to facilitate fast chip diagnostics or firmware updates without risking thermal damage to expensive silicon. It is an essential component for high-reliability medical and telecommunication hardware.
Key Features
-
Narrow Row Spacing: Fits standard .300″ narrow-body dual-row integrated circuits.
-
Machined Round Pins: Features four-finger clips for 360-degree contact reliability.
-
High-Temp PPS Housing: Withstands extreme industrial soldering temperatures without warping.
-
3A Current Capacity: Supports higher power delivery than standard stamped versions.
Main Specifications:
General Information:
| Product No.: | ICM-624-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 24 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.6″ (15.24mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
ICM-6XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
