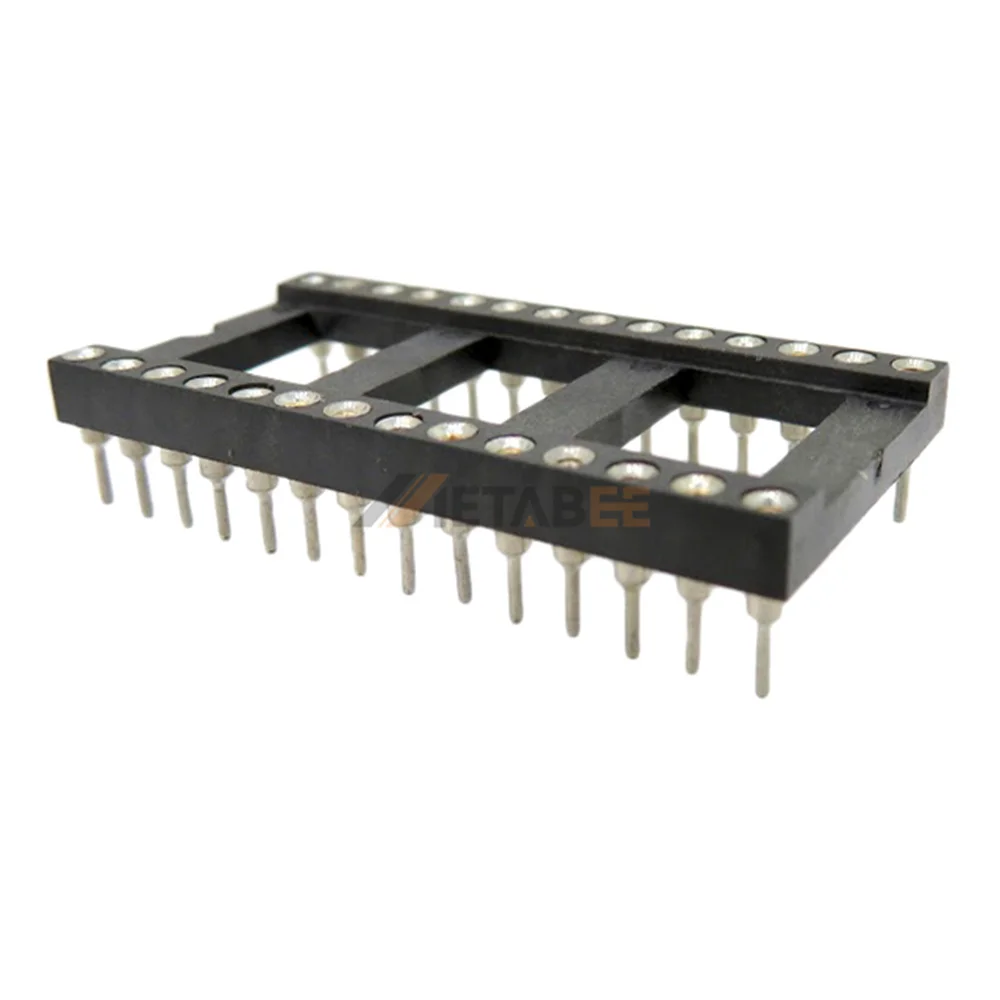

This 28 pin wide DIP IC socket acts as a high-precision pluggable carrier for large integrated circuits on networking boards. It features an expanded 15.24mm row spacing specifically designed to accommodate wide-body packages used in microprocessors and memory modules. The two-piece screw-machined contacts utilize four-finger Beryllium Copper inner clips to maintain a secure, 360-degree electrical bond that resists vibration. Its durable PPS housing survives intense industrial wave soldering temperatures without any structural warping. Engineers integrate this 3A rated modular interface to simplify chip updates while protecting sensitive silicon from thermal stress during the initial assembly process. Technicians utilize this reliable solution for high-density networking and industrial control systems.
Key Features
- Wide Row Spacing: Matches standard 15.24mm (.600″) wide-body IC packages.
- Machined Round Pins: Features four-finger clips for maximum contact reliability.
- High-Temp PPS Housing: Withstands extreme industrial soldering temperatures without warping.
- 3 Amps Current Rating: Supports higher power delivery than standard stamped versions.
Main Specifications:
General Information:
| Product No.: | ICM-628-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 28 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.6″ (15.24mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
ICM-6XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
