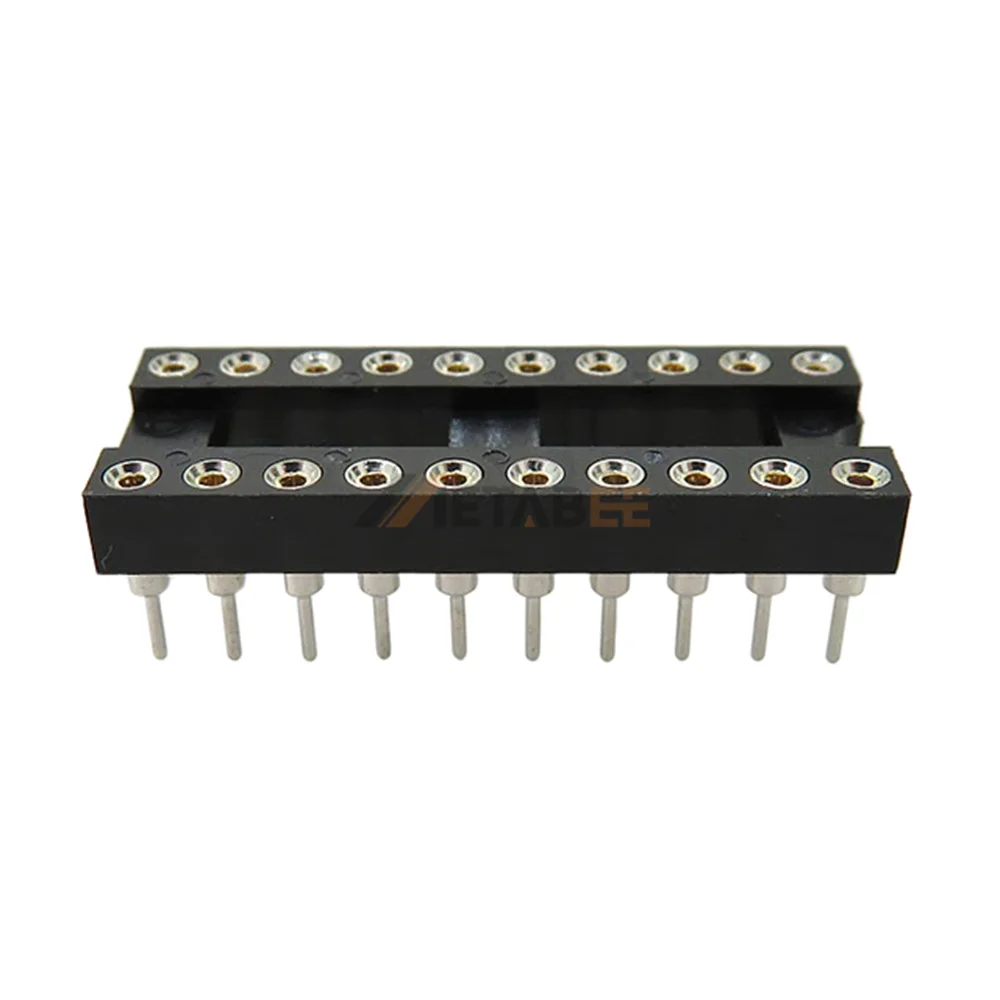

This 20 way machined DIP IC socket serves as a high-precision mounting carrier for standard integrated circuits on networking boards. It features two-piece screw-machined contacts with 4-finger Beryllium Copper inner clips to ensure a secure, 360-degree gas-tight electrical mating. Unlike stamped-pin alternatives, this cylindrical construction provides exceptional mechanical stability and resists signal failure in high-vibration environments. The housing is molded from hi-temp PPS thermoplastic to survive intense industrial wave soldering without any structural warping. Engineers utilize this modular interface to plug in sensitive components easily while safeguarding them from thermal damage during the assembly process. It is a critical component for medical and industrial hardware requiring long-term signal stability.
Key Features
-
Machined Round Pins: Features 4-finger clips for 360-degree contact reliability.
-
Hi-Temp PPS Housing: Withstands extreme industrial soldering temperatures without deformation.
-
3A Current Capacity: Supports higher power delivery than standard stamped versions.
-
DIP Configuration: Fits standard 20 pin dual-row packages with .300″ spacing.
Main Specifications:
General Information:
| Product No.: | ICM-320-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
ICM-3XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
